BMF12T2ProTwo-beam trailer with capacity of up to 12 t
The loading capacity of this two-beam trailer is up to 12 tonnes. One of the most prominent characteristics of this versatile trailer is its robust construction. The loading beams of BMF12T2 are made of especially tough Strenx steel from Swedish provider SSAB. In addition, the main load-bearing frame is constructed of two 200x100 mm pipes with increased wall-thickness of 8 mm. To put it simply, the trailer has been optimized to be strong yet light thanks to special steel. Robustness of the BMF12T2Pro trailer is further supported by its uniquely designed drawbar that fully protects the oil pump, which is hidden inside of it. The trailer is powder-coated to shield the surface from wear and scratching and provide better corrosion protection. Cylinders of FD-type support legs are securely protected as well. The support-legs and crane are attached directly to trailer frame, not placed under the crane, because this solution is ensures stability and durability. BMF12T2Pro trailer is available with A-type and FD-type support legs. Further stability for uneven landscape is provided by lowered crane position that grants optimized centre of gravity. BMF12T2Pro is available with Pro bolsters that offer the possibility to widen the load area by pulling the poles outwards and the position of bolsters can be changed by moving them on the beam. BMF12T2 PRO trailer is compatible with the following BMF cranes: BMF650, BMF720, BMF750(HP), BMF850(HP) and BMF905(HP).
We know that our customers have different requirements to trailers depending on the work specifics and working conditions, therefore we provide alternative options for trailer components and a wide variety of additional equipment. BMF trailers can be equipped with several different brakes and wheels with various tyre patters. Furthermore, there are tail light alternatives and mud guards for driving on the roads. Traction power can be increased with the help of Robson 4WD or Black Bruin drive system that make working uphill, in the mud or snow much easier. Add a BMF branch tube to transport energy wood or use a BMF tipping box for gravel, grain or woodchips. BMF12T2Pro trailers are able to transport extra-long logs with the help of BMF clambunk. Full list of BMF accessories is available here.

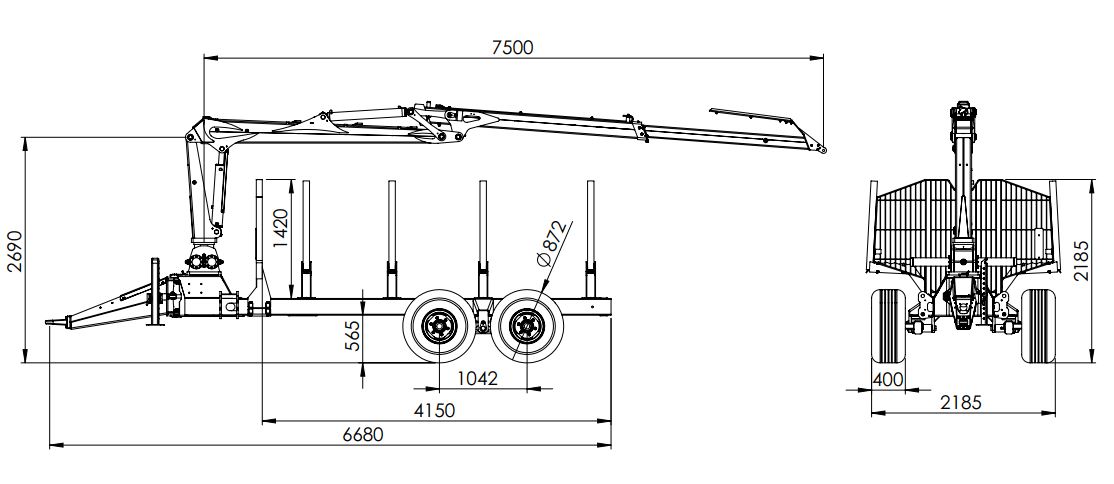

|Loading capacity, kg||12000|
|Total length, mm|
|Length of loading area||4150|
|Total width with standard wheels, mm||2185|
|Loading area, m²||2.45|
|Drawbar cylinders, pcs||2|
|Drawbar angle to sides, ± °||35|
|Support leg||A / FD|
*Technical data is subject to change without prior notice.
