BMF T1020L

The BMF 1020L is the largest and most powerful crane in the BMF range, developed for professional timber trucks and demanding forestry transport operations.
It represents a new milestone for BMF — the company’s first truck-mounted crane, fully engineered and manufactured in Estonia.

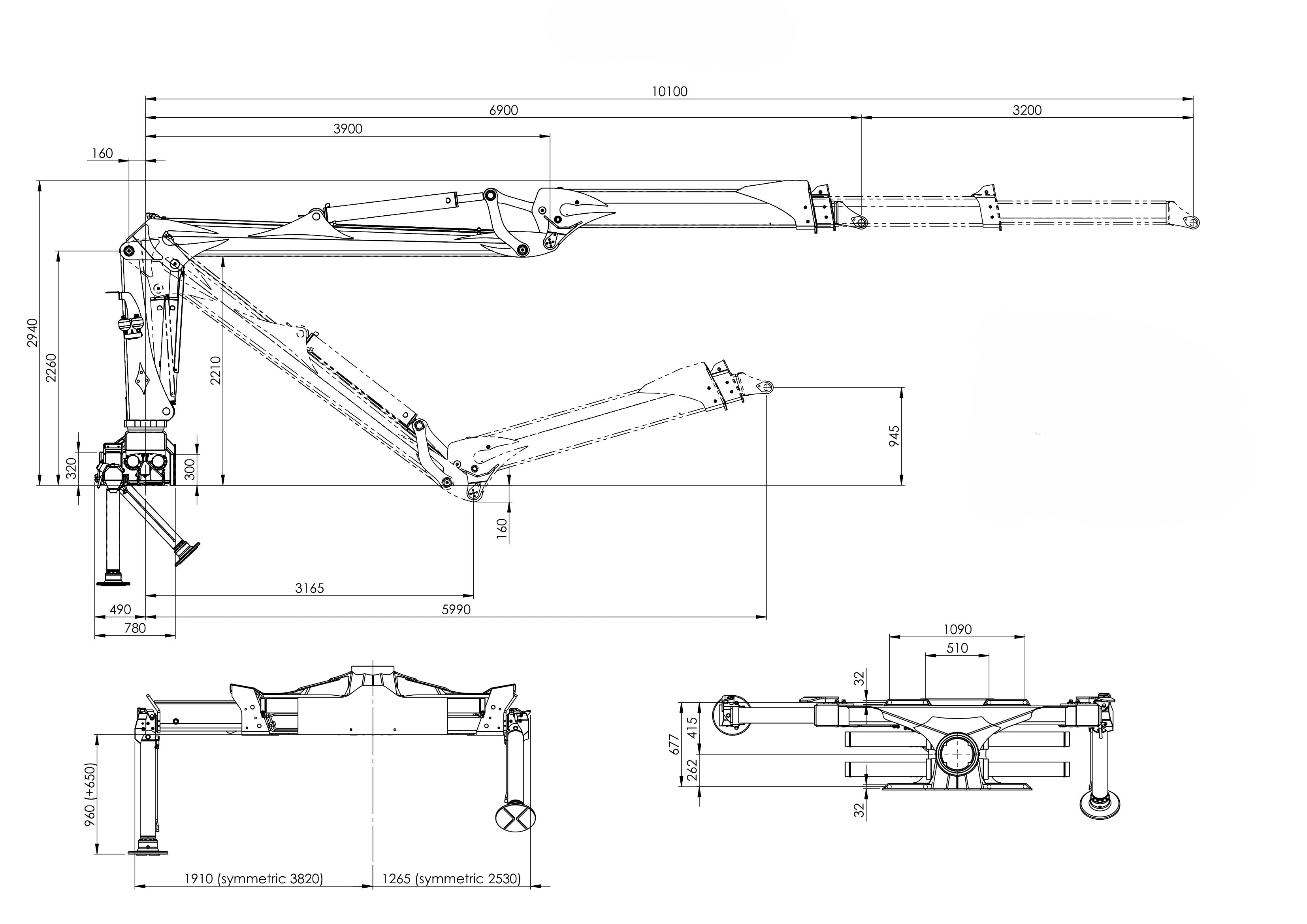

With a 10.1-metre outreach and 186 kNm gross lifting torque, the BMF 1020L delivers high performance and stability even with heavy timber loads.
The crane is equipped with a Hawe PSV 5 full-electric (LS) main valve and hydraulic accumulators for the lift and slew cylinders, ensuring smooth and precise movement under all working conditions.

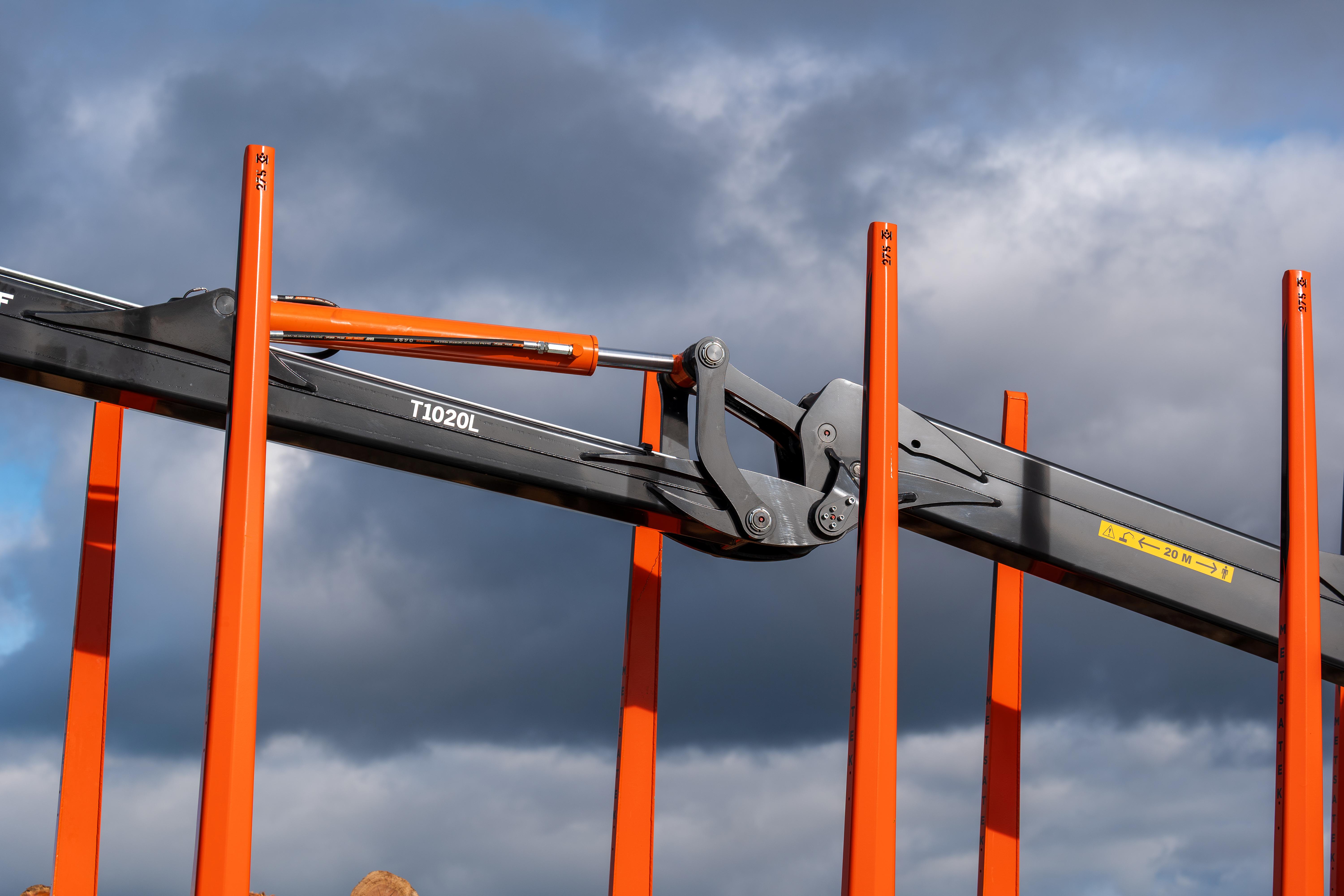

The boom system is built from high-strength Strenx® steel supplied by SSAB, making it both lighter and stronger.
This advanced material provides superior durability, allowing the crane to handle intensive daily workloads while keeping overall weight optimized for truck mounting.

Key specifications:

Maximum reach, m	10.1
Maximum lifting torque, kNm, gross	186
Main valve	Hawe PSV 5 full-electric (LS)
Hydraulic accumulators for lift and slew cylinders
Grapple	BMF C50
Rotator	Indexator

*Technical data is subject to change without prior notice.
** Model year 2025
