BMF 750

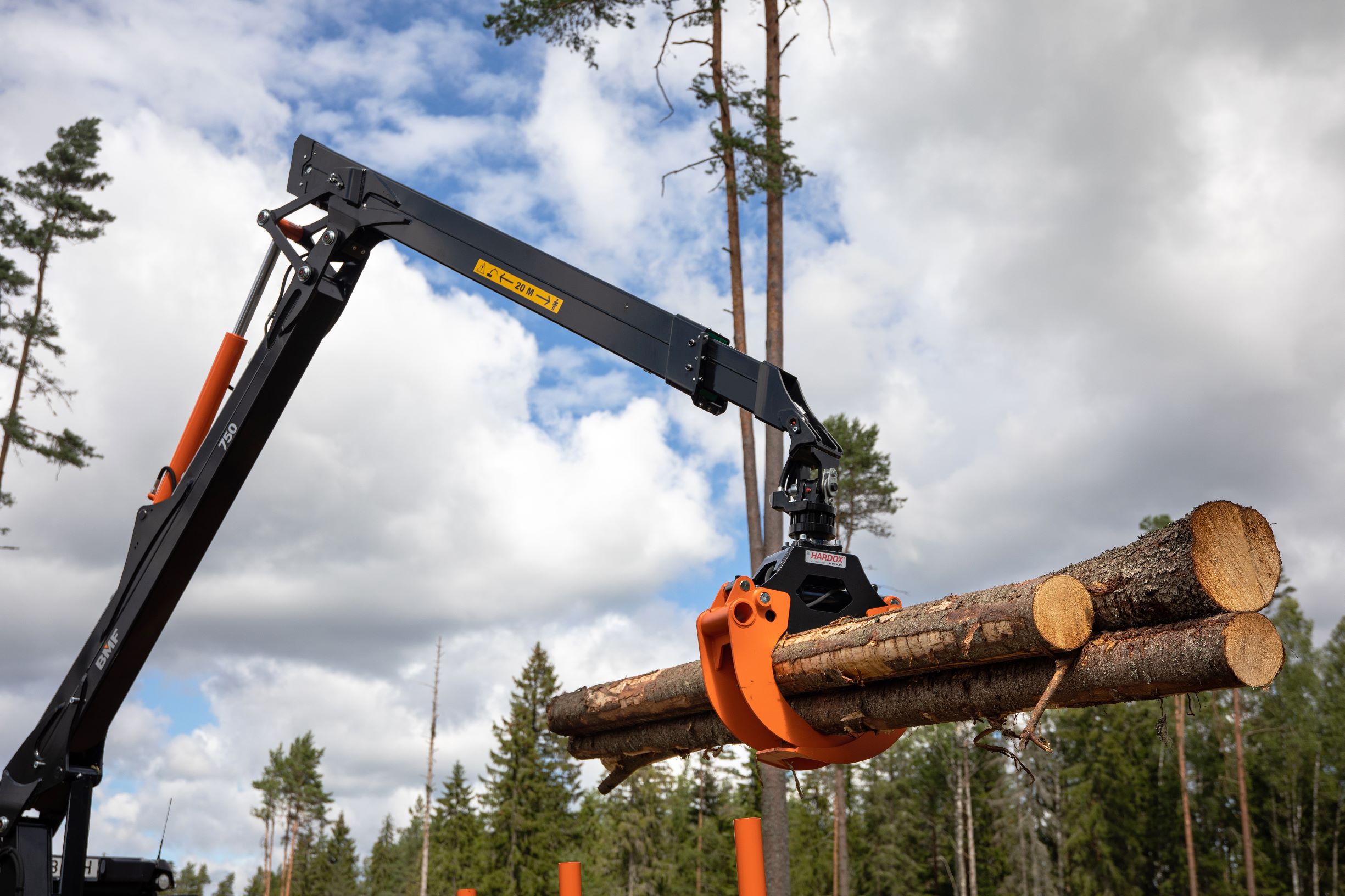

Forestry crane with higher capacity, wide-angle joint, a telescope and max. reach of 7.5 m

BMF cranes are all about quality that is our priority in every step of the way, starting from the selection of materials up to final finishes and considerate selection of accessories. BMF750 is definitely characterized by high quality: we have developed a unique solution, where hydraulic lines are routed inside the crane boom to make sure that moving hydraulic lines are protected from mechanical injuries during long workdays in the forest. Booms of this far-reaching model are extra solid, because it is made of high-quality Strenx®-steel from Swedish producer SSAB and certified for My Inner Strenx® program. In addition, the turning house of BMF750, which is one of the most essential components of the crane, is designed to be especially rigid and durable. This log loader has a total reach of up to 7.5 m, possibility for hitching to a tractor (three-point connection), wide-angle joint and a telescope. BMF750 is available in HP version with added power as well. BMF750 can be combined with the following forestry trailer models: BMF10T2, BMF11T1, BMF12T2, BMF13T1, BMF14T2 , BMF16T1, BMF17T2.


Product info:

BMF 750

BMF 750 HP
Maximum reach, m 7,5 7,5
  • Lifting torque, kNm, gross
76
 86
Lifting power on 4m without grapple and rotator, kg 1410 1570
Lifting power of full reach without grapple and rotator, kg 750 830
Grapple, m2 0,24 / 0,27 0,24 / 0,27
Rotator 4t 4t
Slewing torque, kNm 17 20,5
Slewing cylinders, pcs 4 4
Boom rotation, ° 370 370
Working pressure, bar  200 225
Hydraulic pump capacity, l/min 50-100  50-100
Support legFD FD
Wide angle + +
Telescope + +
Total weight without leg, kg 1090 1090

*Technical data is subject to change without prior notice.
