BMF10T2 TIP
BMF background
Tipper Trailers

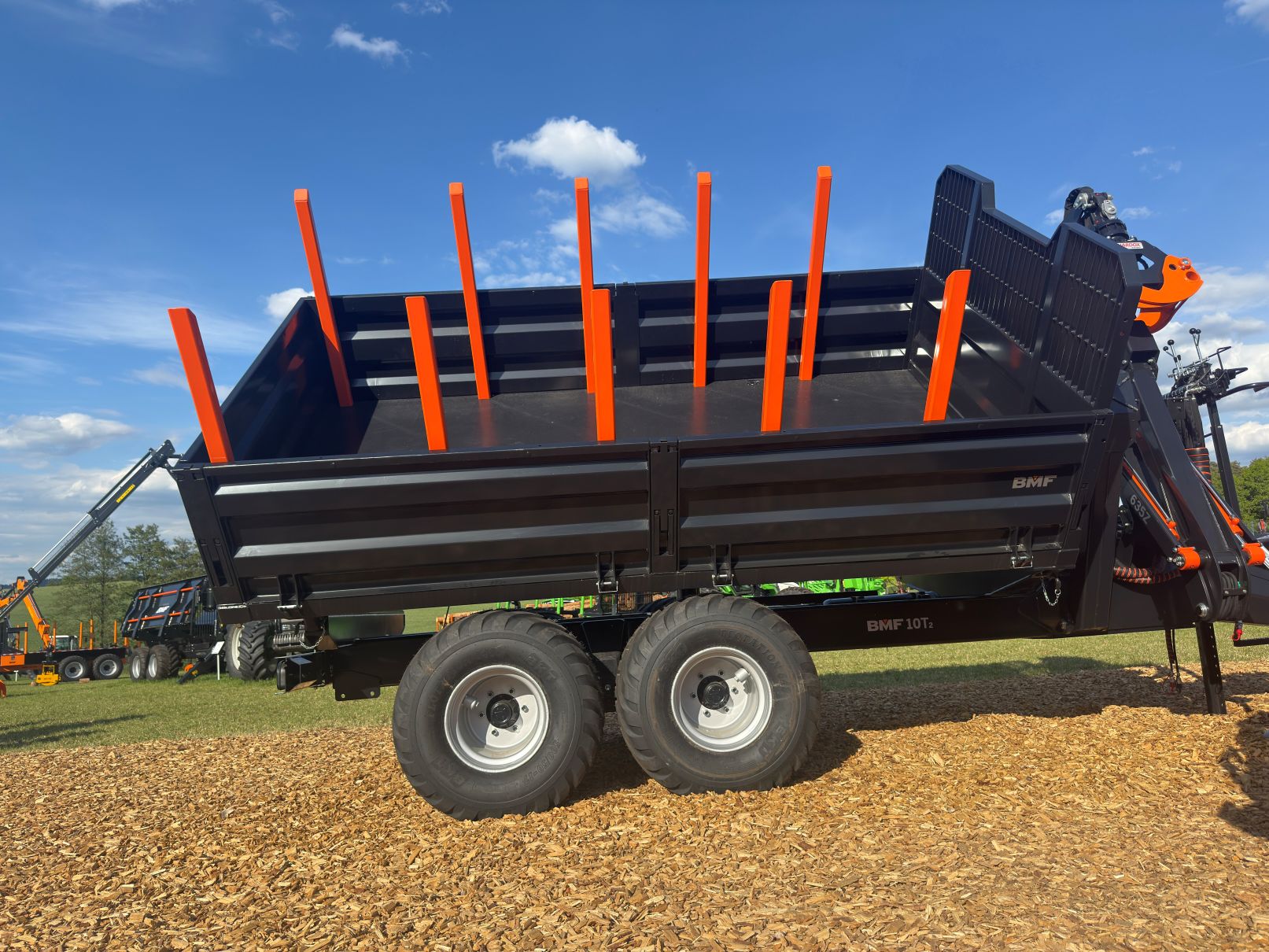

BMF10T2 TIP

Versatile tipper trailer with a durable three-way tipping dump box.

The BMF10T2 Tipper Trailer is a versatile tractor trailer with a durable three-way tipping dump box for transporting timber, biomass, gravel, soil and other bulk materials. Its strong construction, high payload and practical design make it suitable for demanding forestry, agricultural and contracting work.

The three-way tipping system enables quick unloading to the rear or either side, while the durable frame and reliable components ensure long service life and efficient operation in everyday use.
Ask for an offer

Technical details

BMF10T2 TIP
Loading capacity
10000 kg
Total length
6745 mm
Length of loading area
3945 mm
Total width with standard wheels
2290 mm
Height with standard wheels
2530 mm
Wheels (*standard)
500/50/17
Chassis
250x100x8 mm
Axles
70x70-6
Loading area
2,7 m²
Drawbar cylinders
2 pcs
Drawbar angle to sides
35 ± °
Clearance with standard wheels
605 mm
Trailer-mounted support leg type
FD
Rear tipping angle, °
42
Side tipping angle, °
45
Loading area with side walls, m
3,9x2,1x0,7
Loading area with poles, m
3,95x1,98x1,36
* Technical data is subject to change without prior notice.

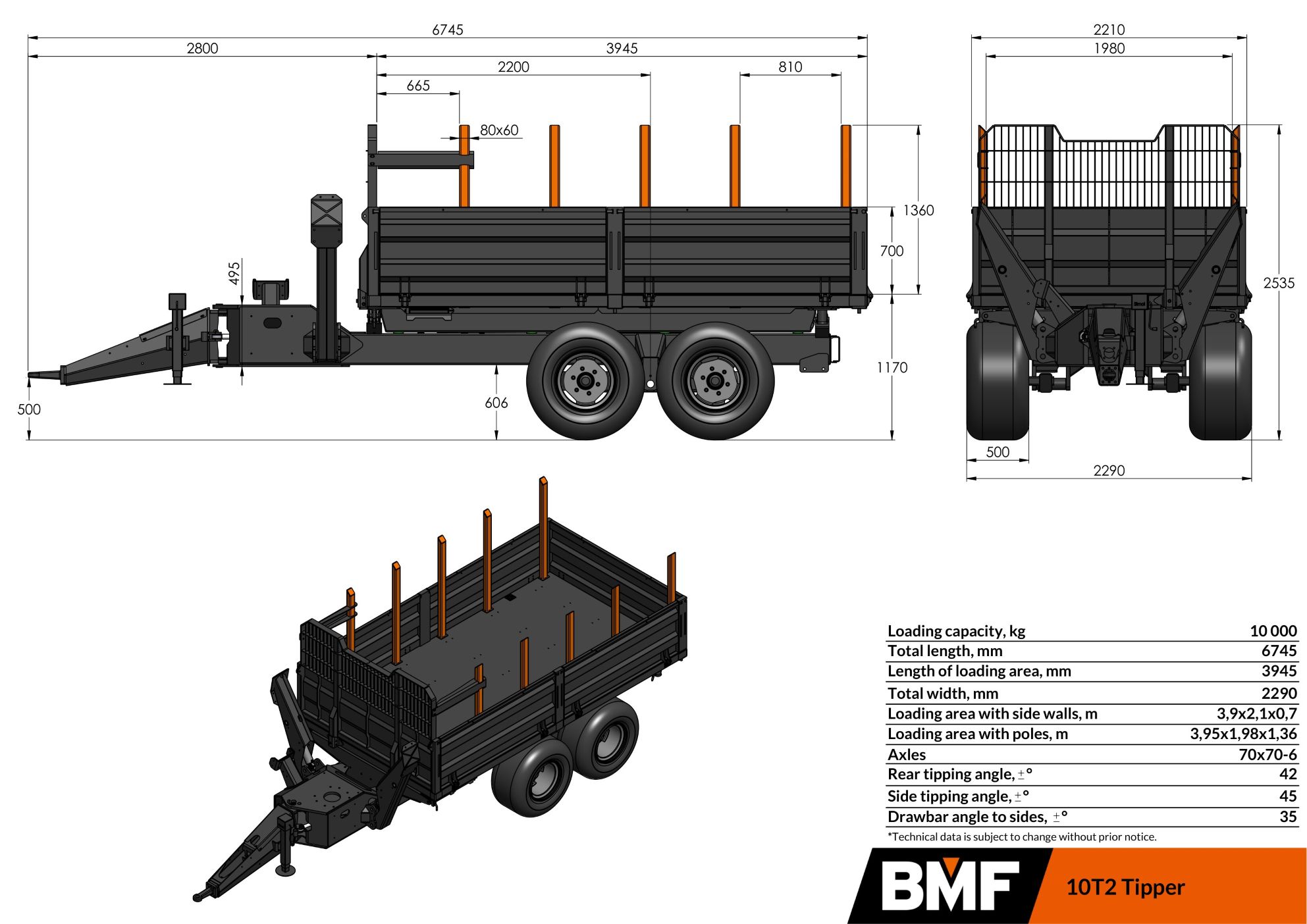

Measurements

BMF background

BMF10T2 TIP

Versatile tipper trailer with a durable three-way tipping dump box.

Bmf10t2 bmf635z (1)
Bmf10t2 bmf635z (3)
