BMF11T1Pro Skidder
Technical details Key advantages Gallery Compatible accessories Ask for an offer
BMF11T1Pro Skidder
BMF background
Skidder Trailers

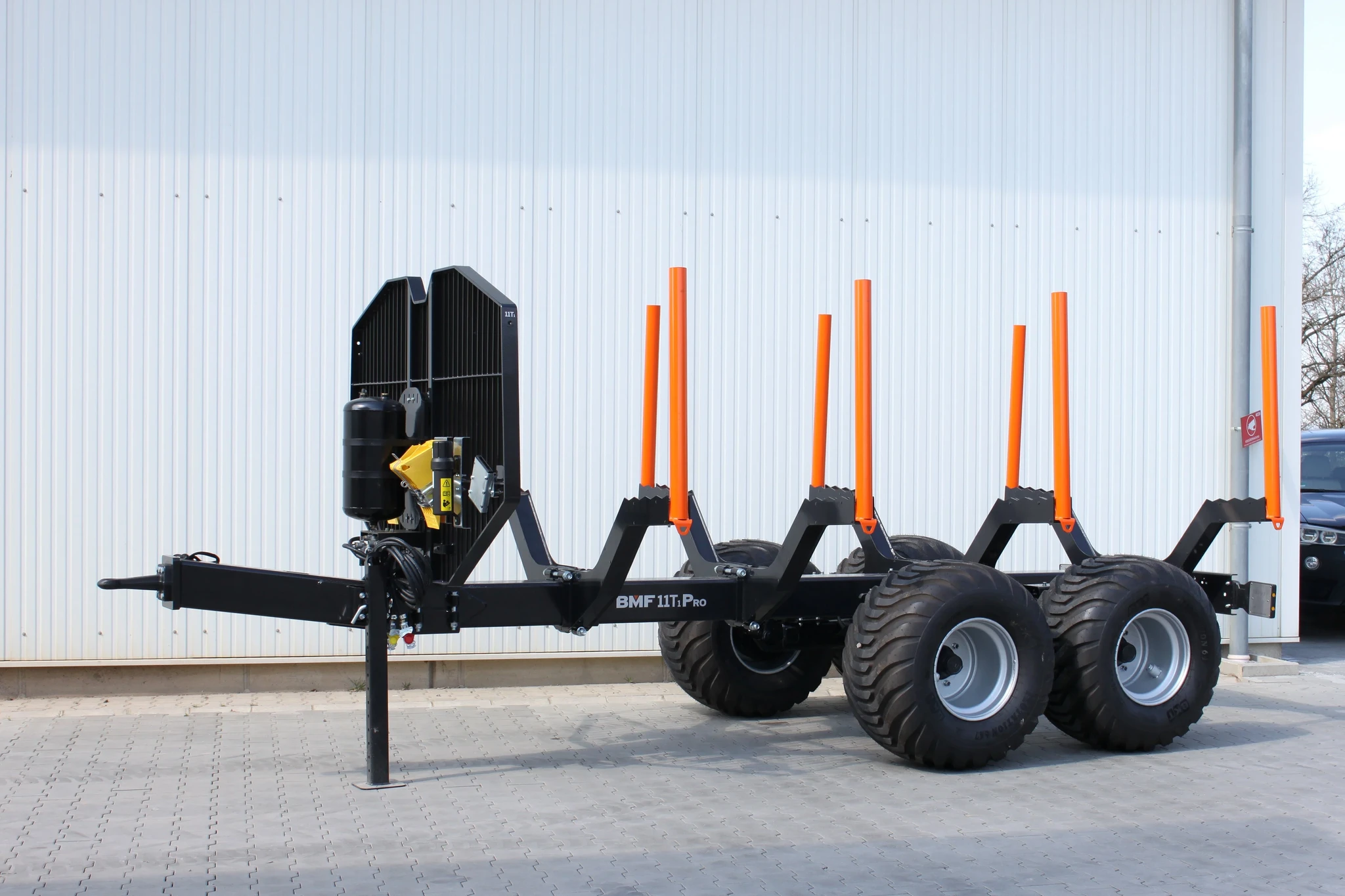

BMF11T1Pro Skidder

Skidder trailer with loading capacity of 11 t

The BMF11T1Pro Skidder is built on the same robust single-beam platform as the BMF11T1Pro—but without a crane, making it a practical choice when you load with separate equipment. With a loading capacity of up to 11 tonnes, it features a drawbar that houses and protects the oil pump, and PRO bolsters that are movable and extendable to adjust and widen the load area. Toothed bolster edges help prevent log movement, and the powder-coated finish protects against wear and corrosion.
Ask for an offer

Technical details

BMF11T1Pro Skidder
Loading capacity
11000 kg
Total length
5685 mm
Length of loading area
4165 mm
Total width with standard wheels
2175 mm
Height with standard wheels
2355 mm
Wheels (*standard)
400/60-15,5*
500/50-17
520/50-17
Chassis
200x200X8 mm
Axles
70x70-6
Loading area
2,6-2,95 m²
Drawbar cylinders
- pcs
Drawbar angle to sides
- ± °
Clearance with standard wheels
565 mm
Trailer-mounted support leg type
-
Extension
850 mm
* As our engineers continuously improve our products, the latest updates may not always be reflected in images, videos or technical specifications.

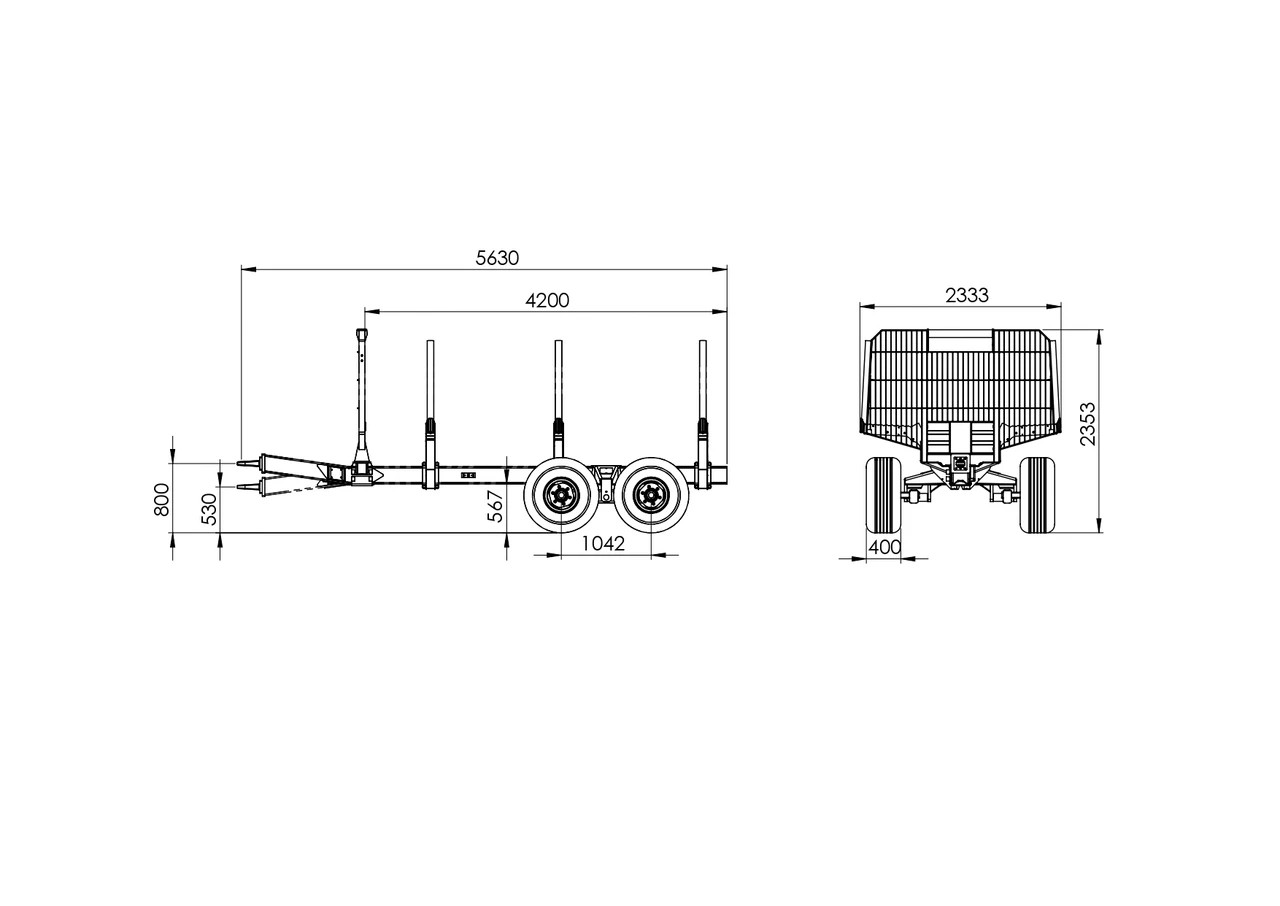

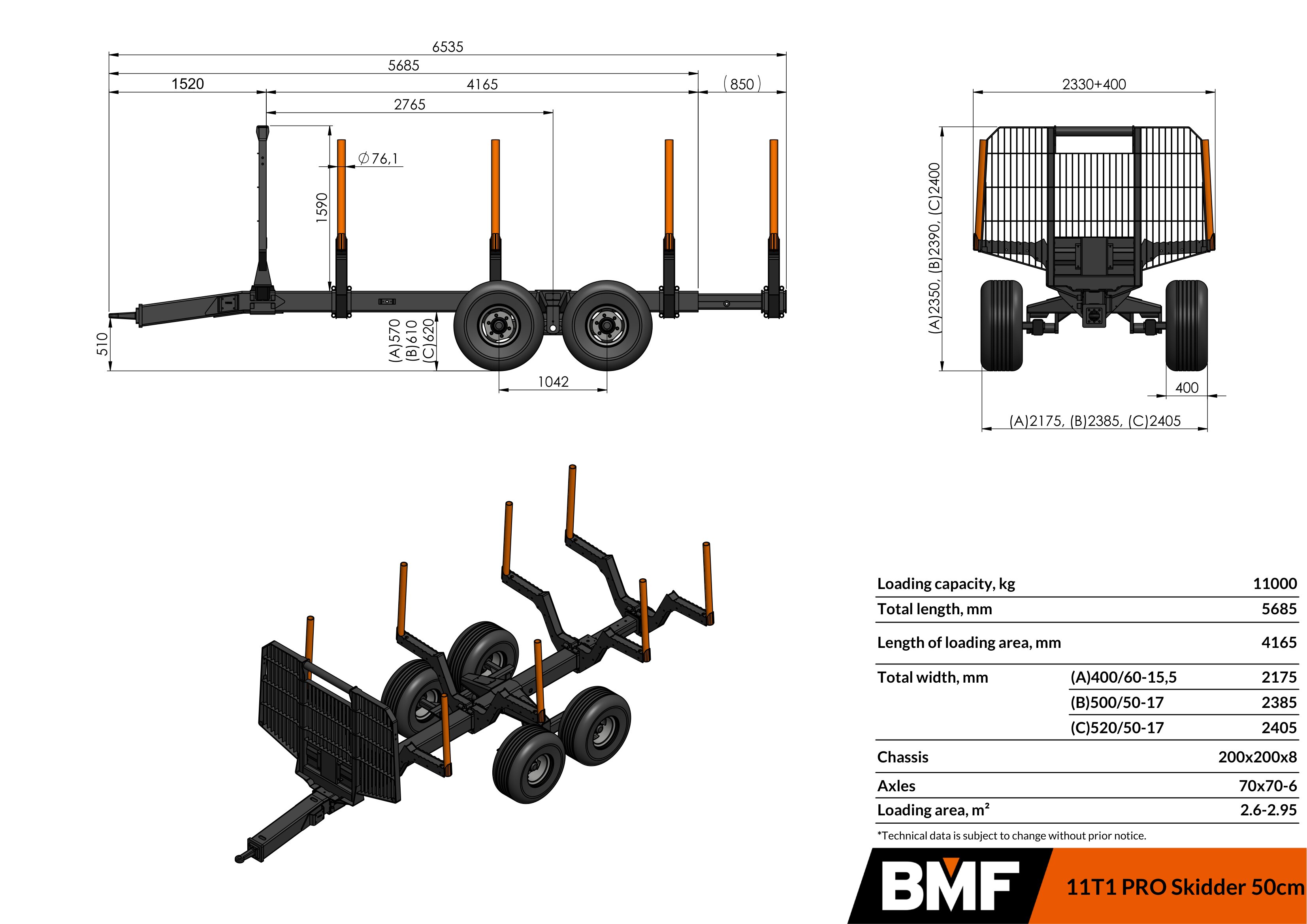

Measurements

BMF11T1Pro Skidder

Key advantages

Protected cylinders
The hydraulic cylinders are securely hidden inside the robust support legs of BMF trailers.
Protected oil pump
BMF trailers have a robust drawbar with a unique design that protects the oil pump. The oil pump is securely hidden inside the drawbar.
Robot-welded construction
High-quality robot welding and strategically positioned seams help the frame withstand rough terrain and heavy log loads over long service life.
Heavy-duty safety grilles
All BMF single- and double-beam trailers feature strong safety grilles designed for everyday protection in forest conditions.
In-house manufacturing control
BMF produces metal details in-house (and many other components as well) to maintain consistent quality and durability across the machine.
Flexible drawbar connection
Multiple drawbar eye options and two drawbar heights help achieve smooth, correct coupling with different tractors and setups. The drawbar can be mechanically locked to a fixed position for safer, more stable road transport.
EU whole-vehicle type approval
BMF forestry trailers have EU whole-vehicle type approval under Regulation (EU) 167/2013 for use on public roads in EU countries (and neighbouring countries applying the regulation).
BMF background

BMF11T1Pro Skidder

Skidder trailer with loading capacity of 11 t

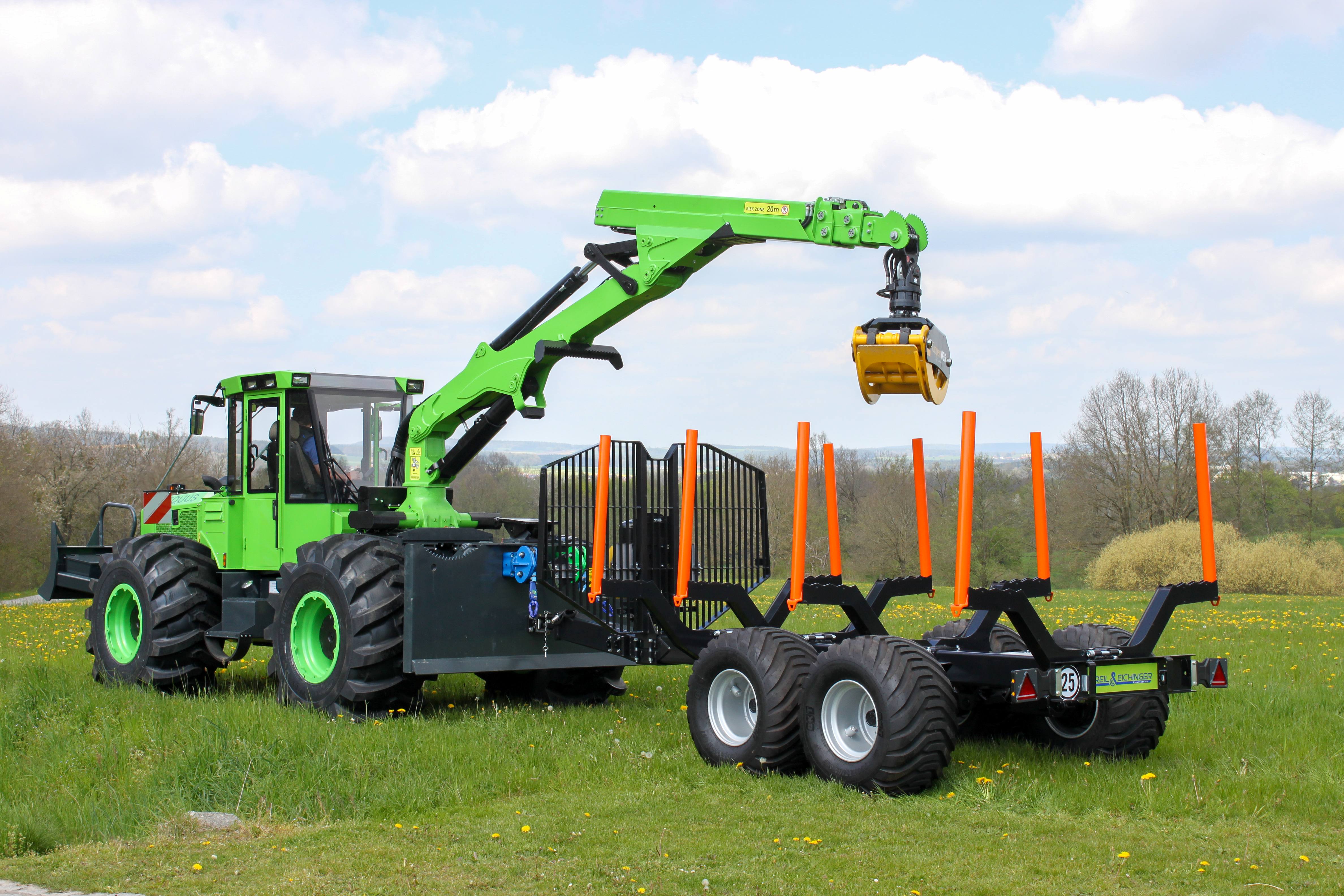

Bmf11t1pro skidder trailer 4

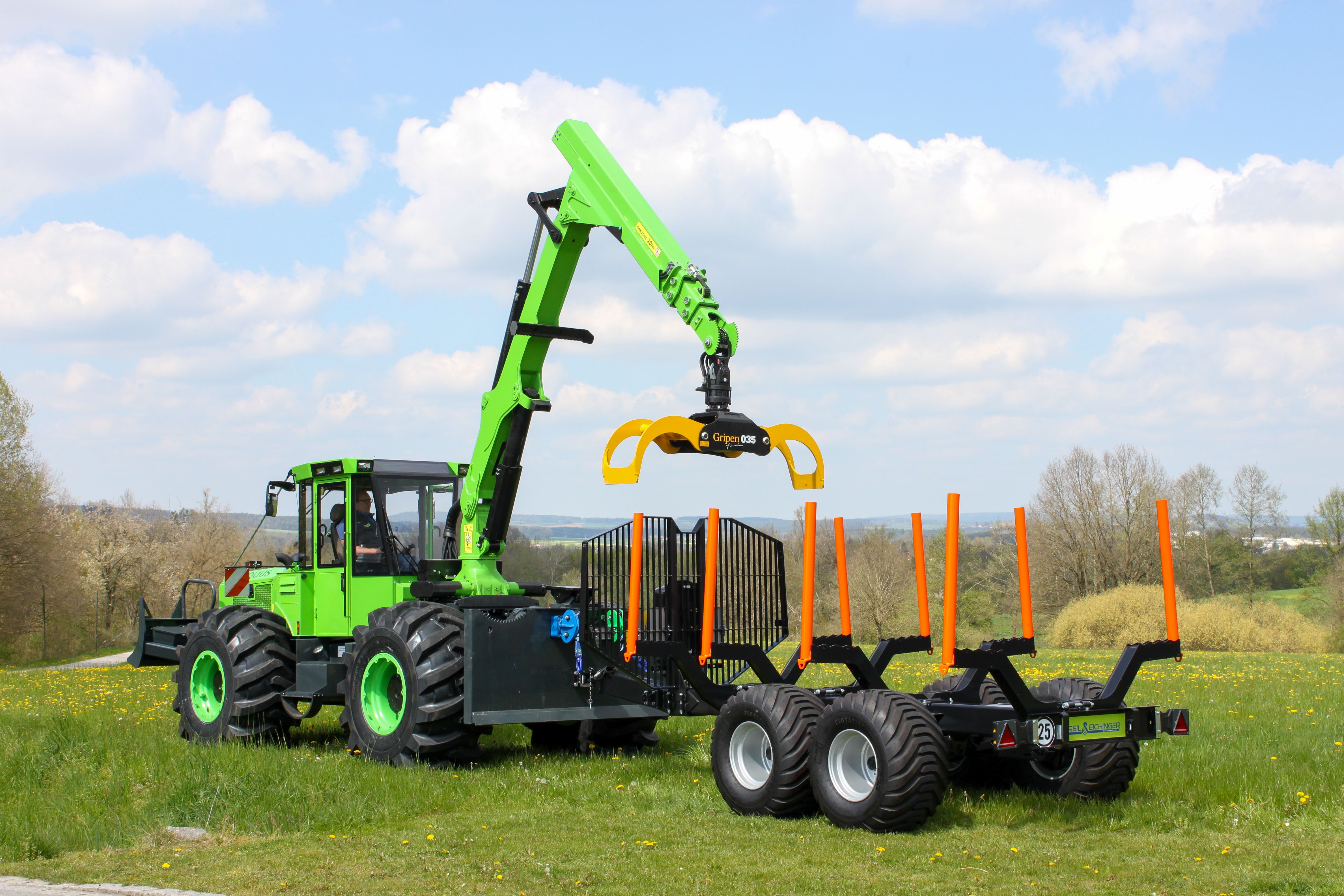

Bmf11t1pro skidder trailer 5

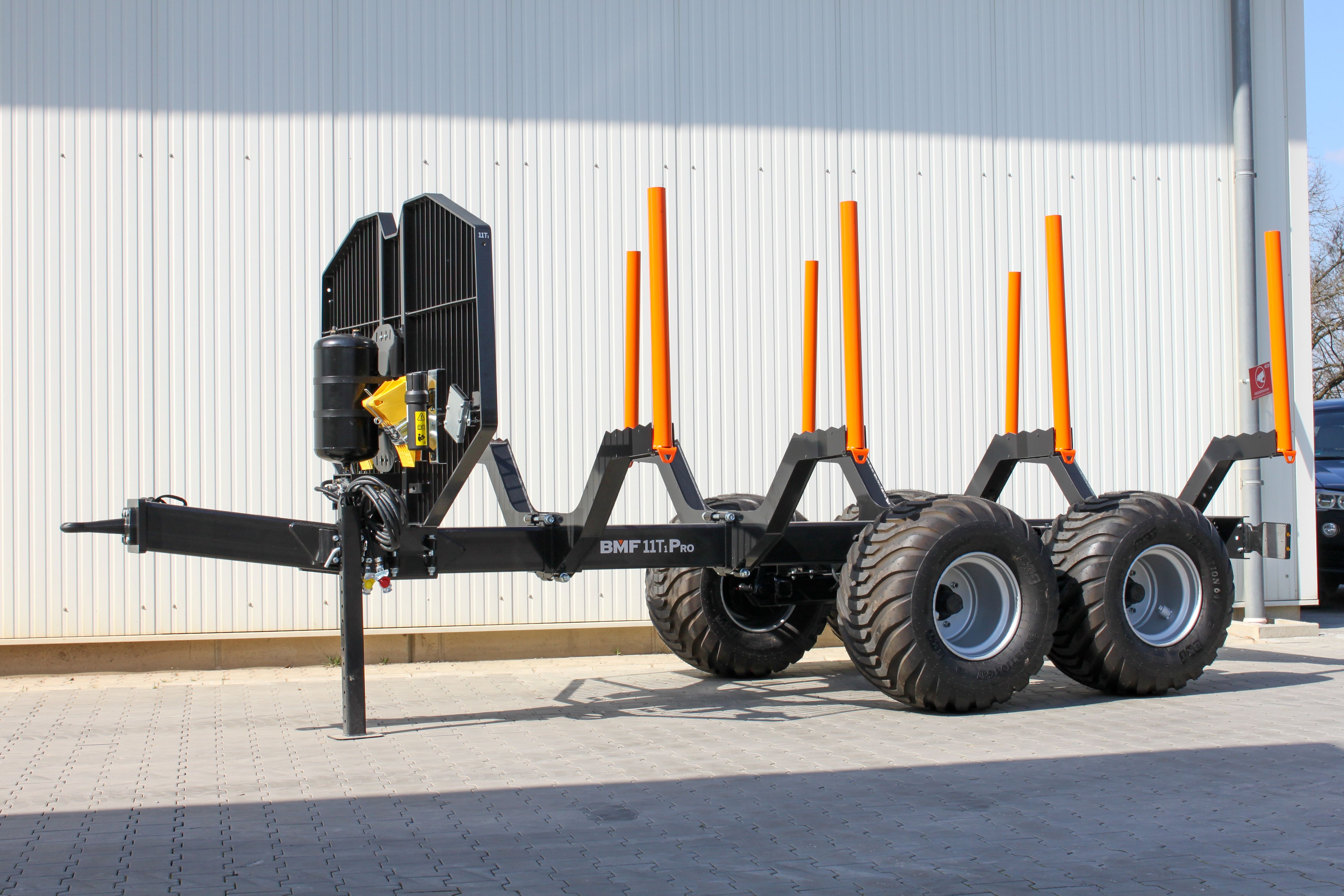

Bmf11t1pro skidder trailer 2

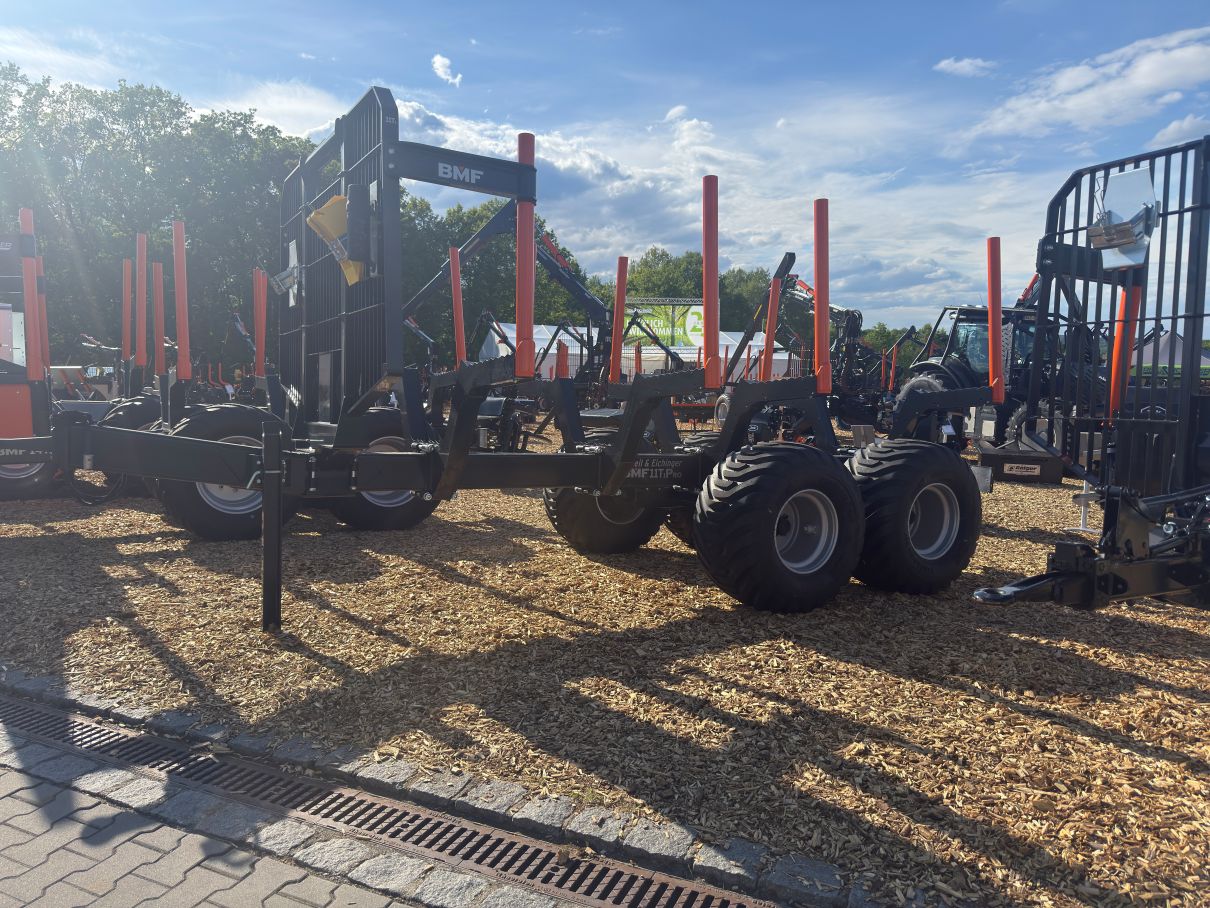

Bmf11t1pro skidder trailer 6
