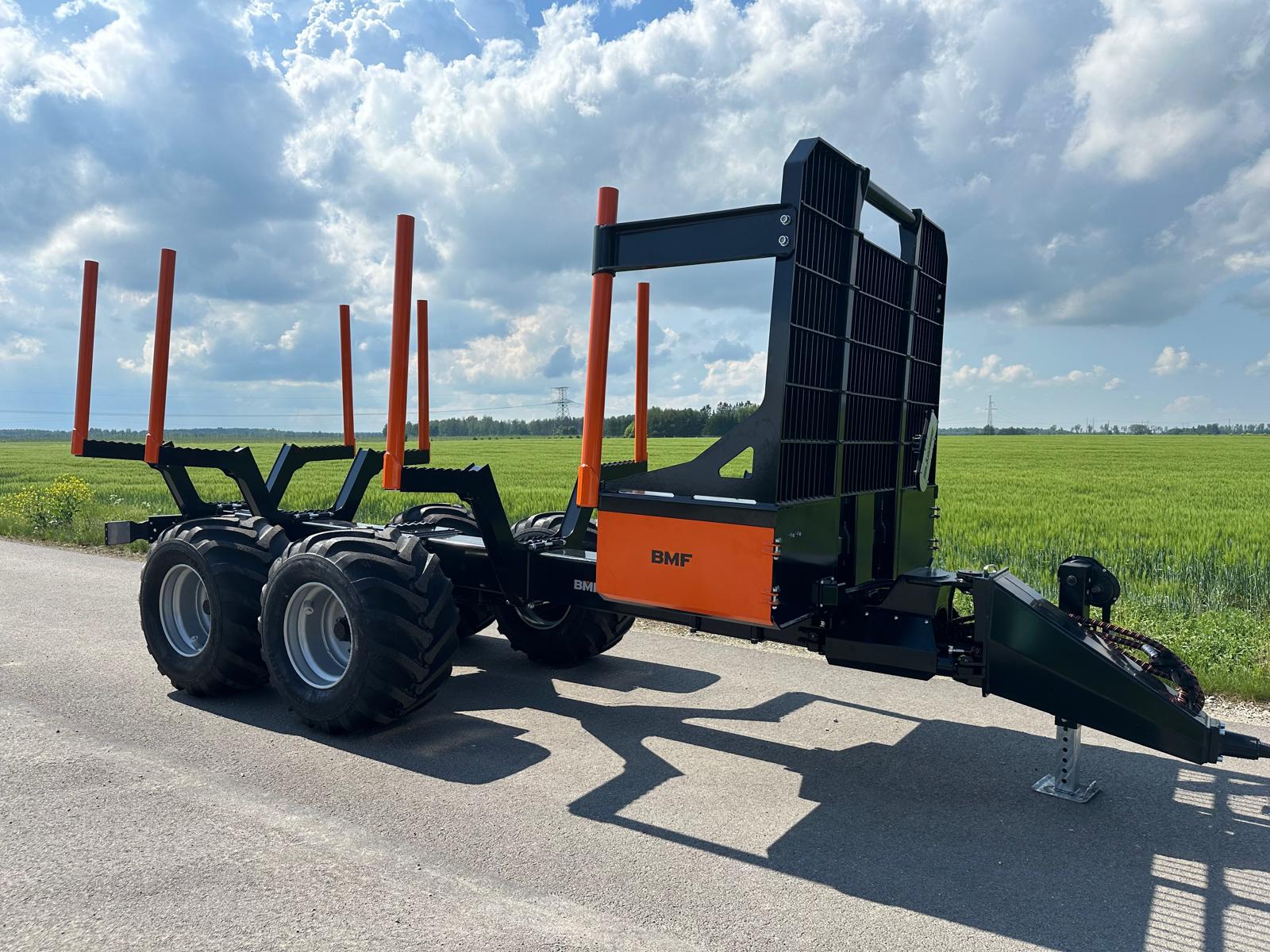

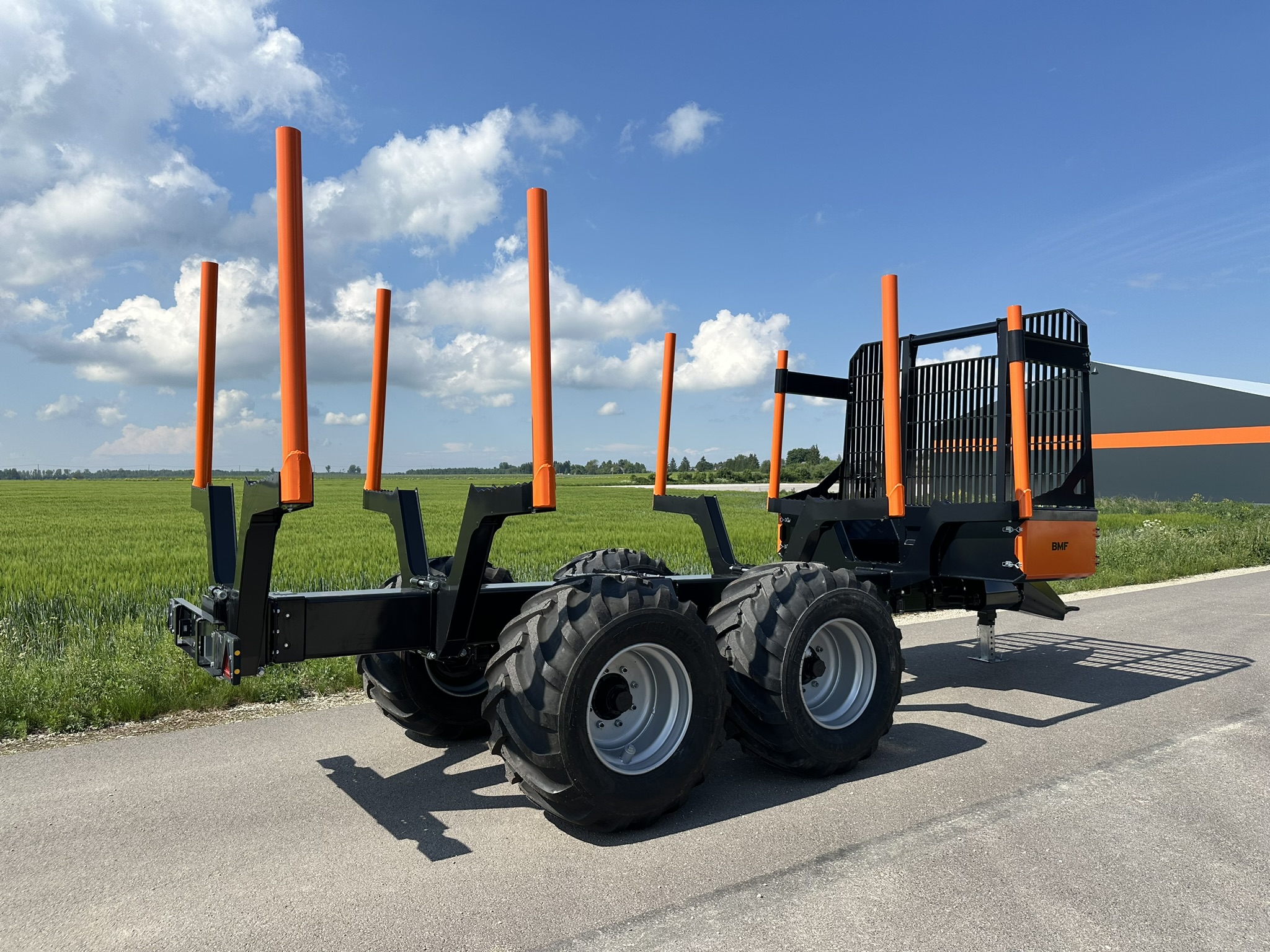

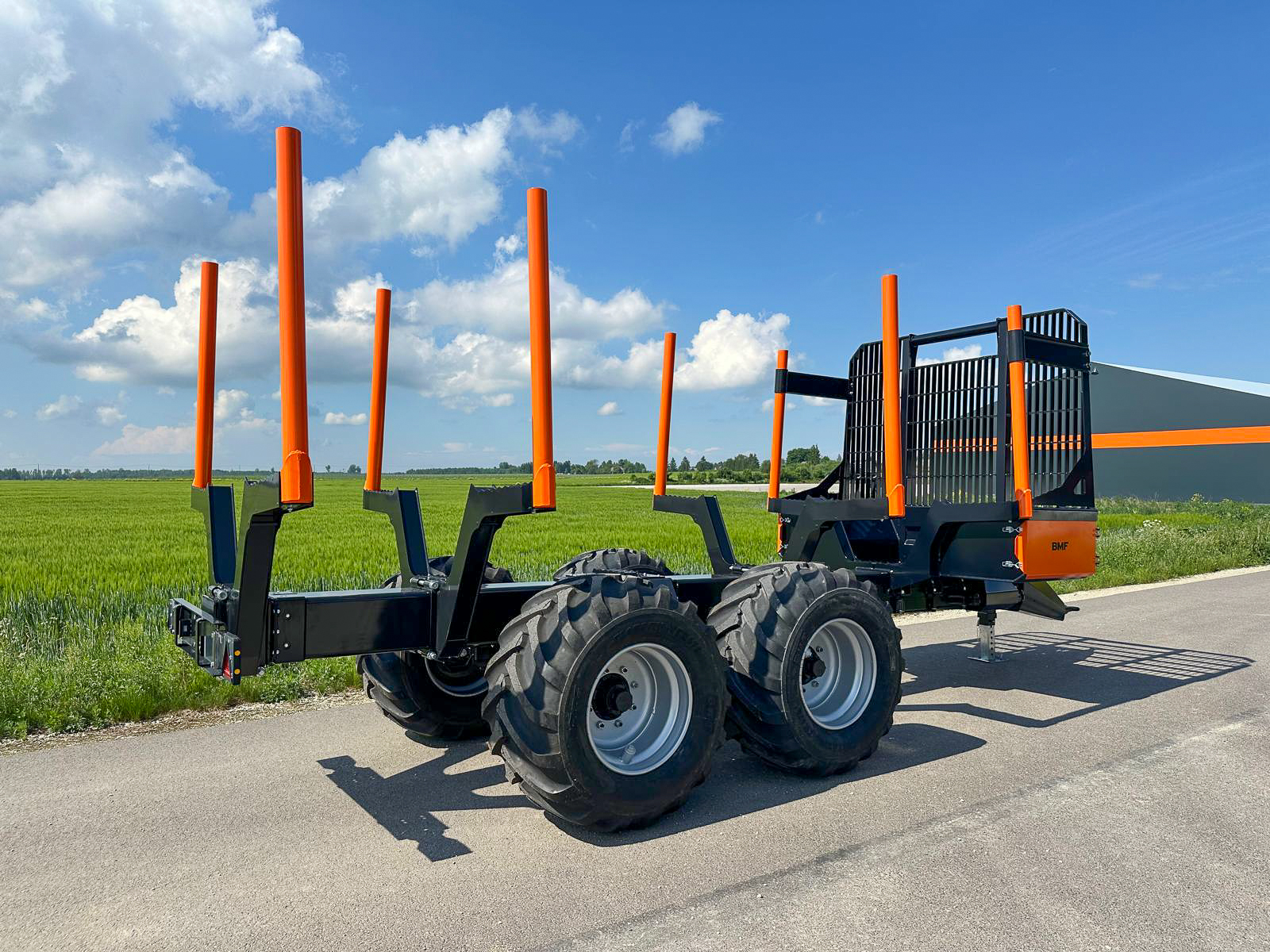

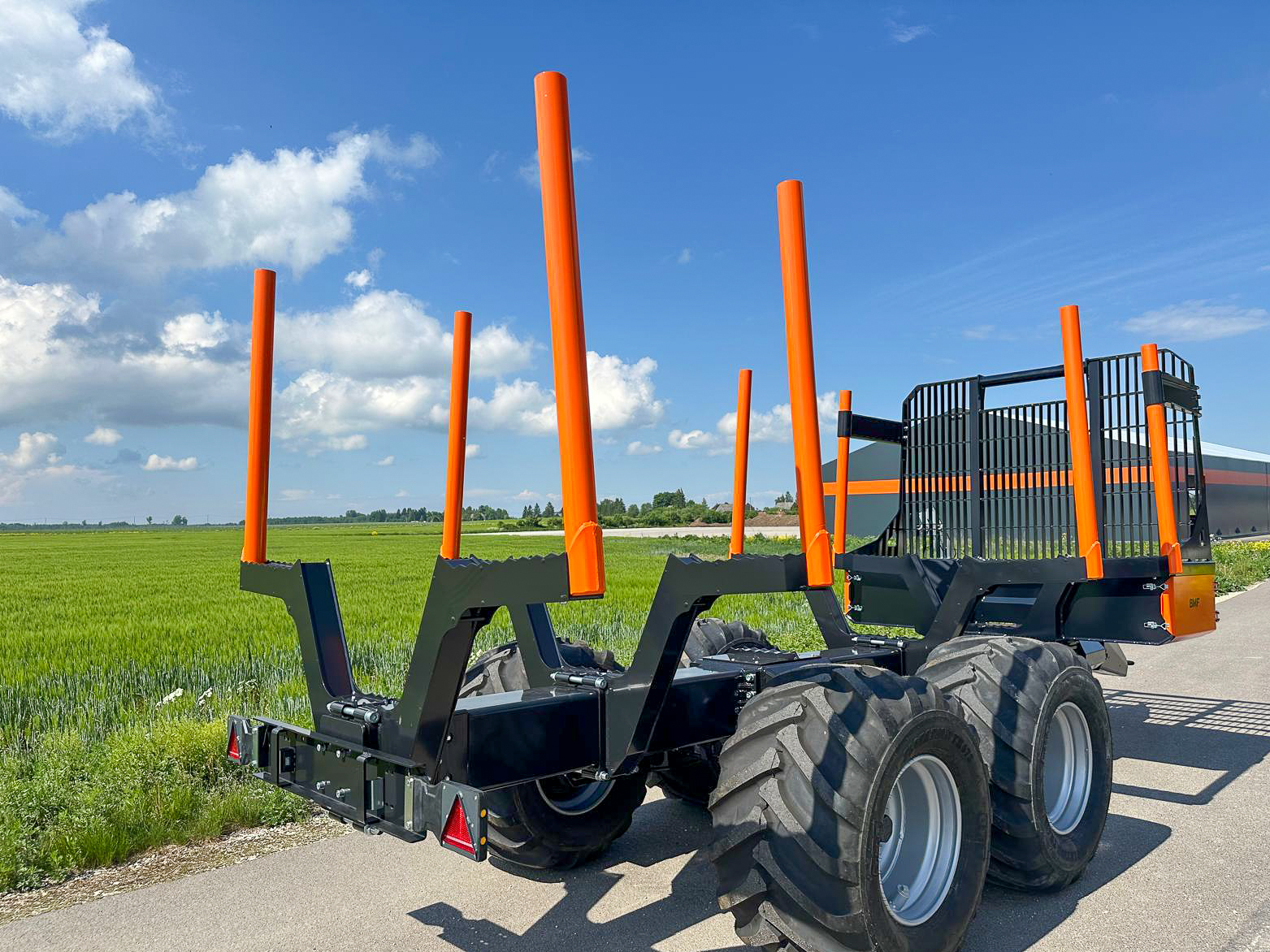

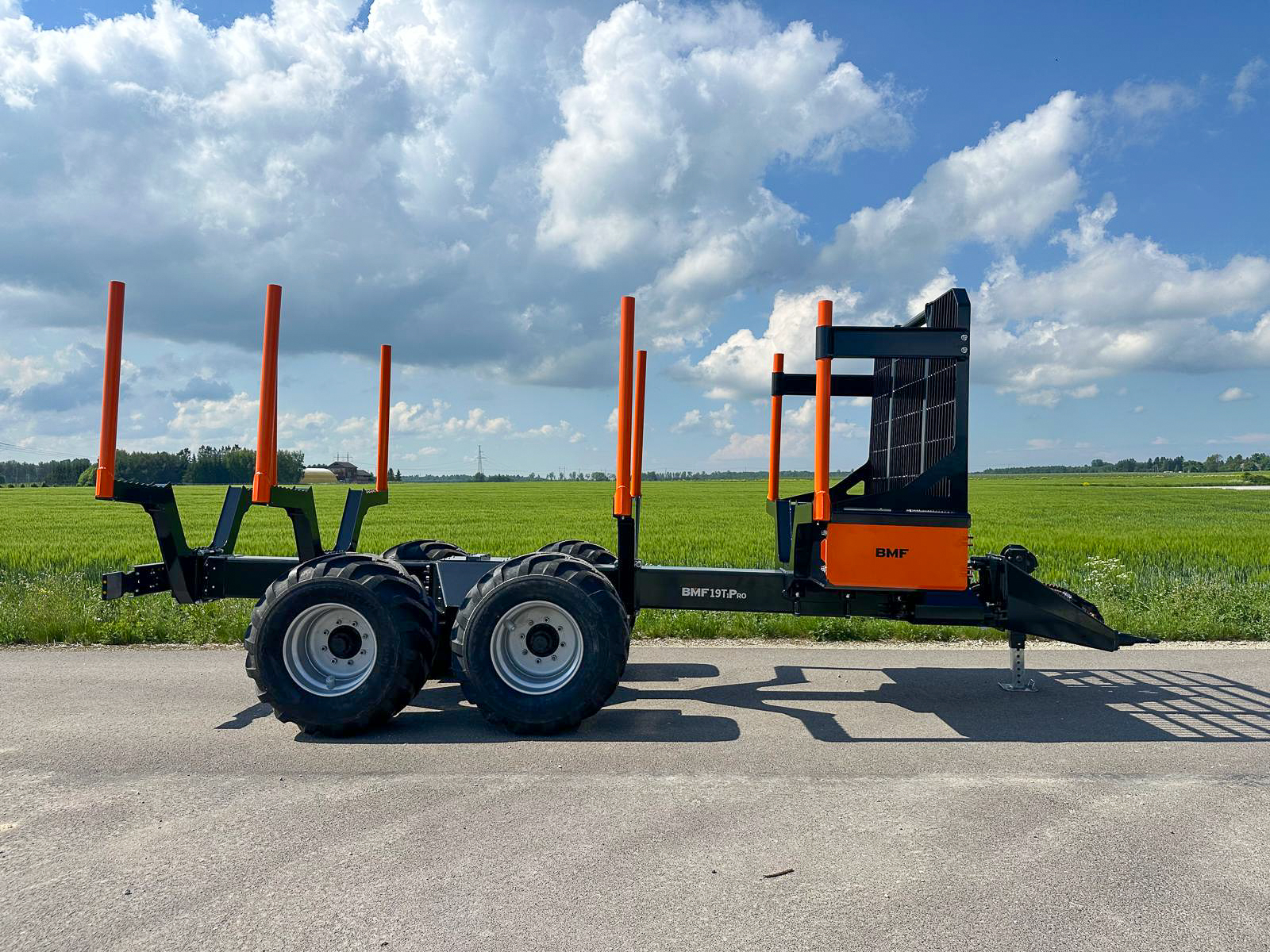

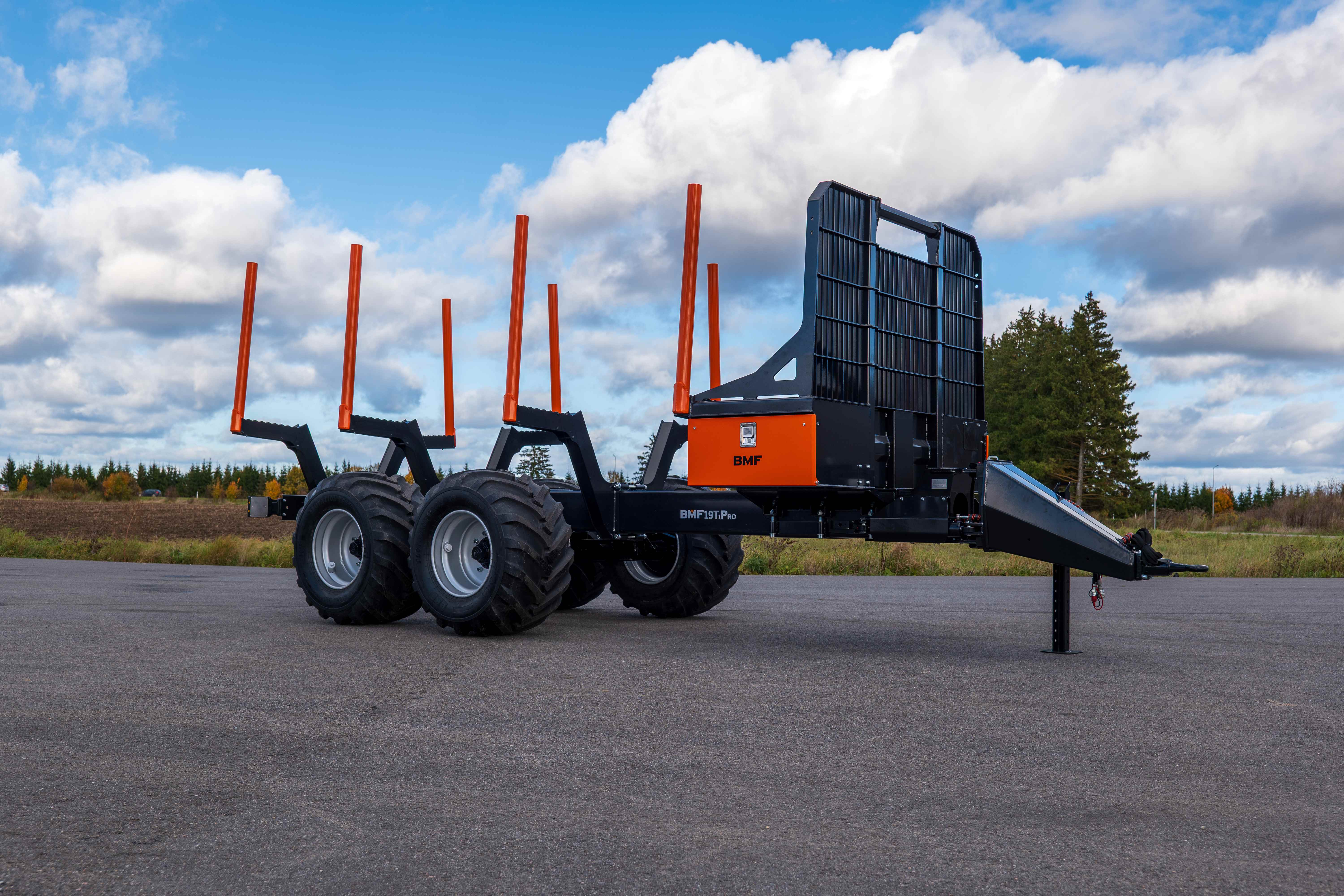

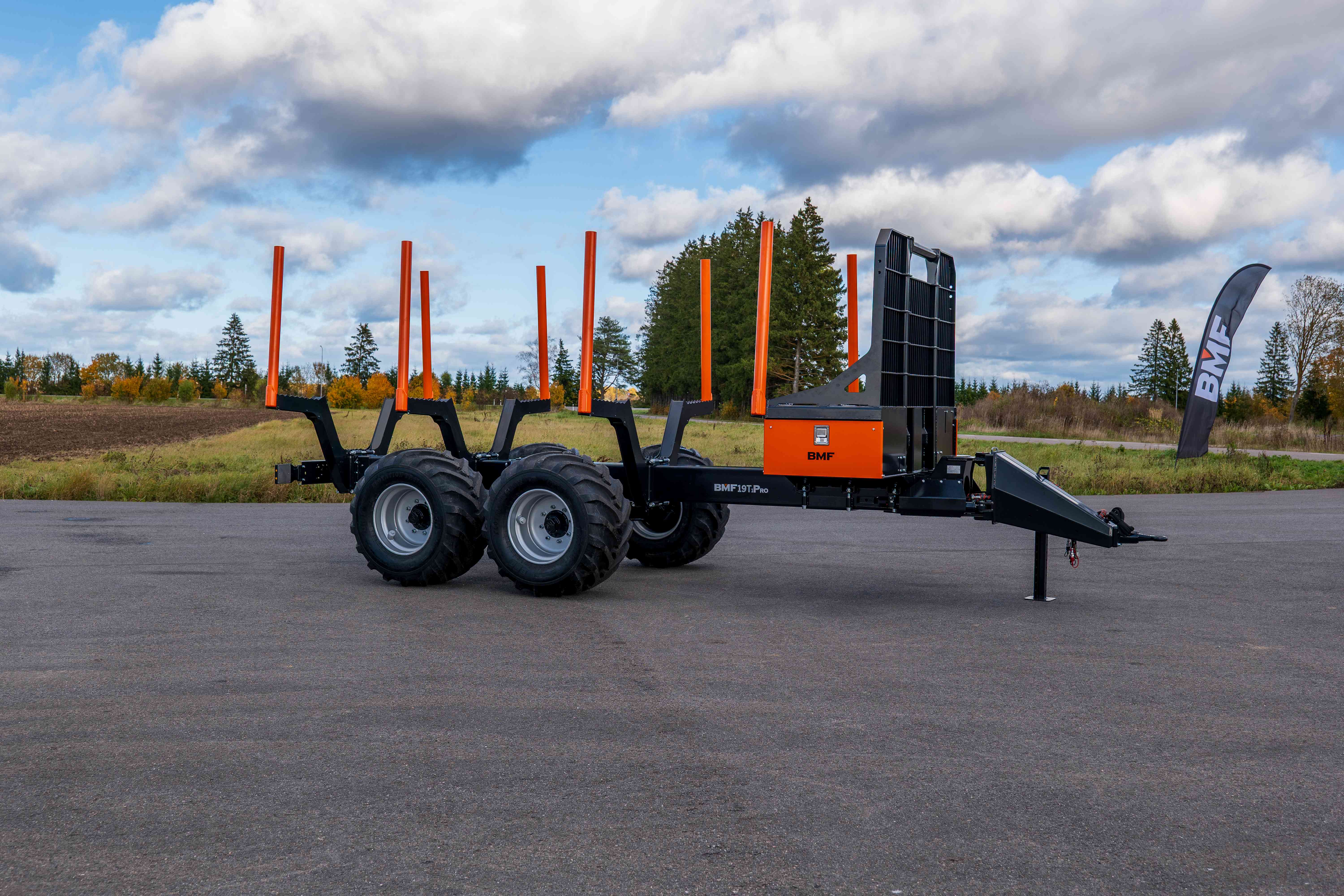

BMF19T1Pro Skidder

Skidder trailer with loading capacity of 19 t

The BMF19T1Pro Skidder is the flagship skidder trailer in the BMF range—built for demanding professional users who want maximum capacity without a crane. With a loading capacity of up to 18 tonnes and a generous load area, it’s designed to move large volumes of timber efficiently from one location to another—quickly, smoothly and with fewer trips.

Technical details

BMF19T1Pro Skidder
Loading capacity
18000 kg
Total length
7930 mm
Length of loading area
6100 mm
Total width with standard wheels
2510 mm
Wheels
600/50/22,5
Chassis
300x300x10 mm
Axles
90X90-8
Loading area
3,05-3,45 m²
Drawbar cylinders
2 pcs
Drawbar angle to sides
40 ± °
Clearance
725 mm
Trailer-mounted support leg type
-
Height
2870 mm
Extension
850 mm
* Technical data is subject to change without prior notice.

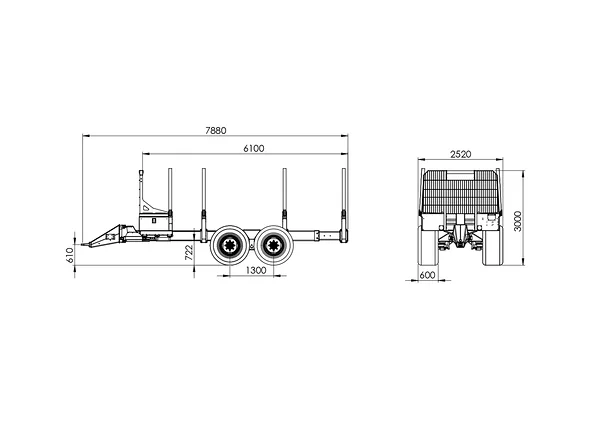

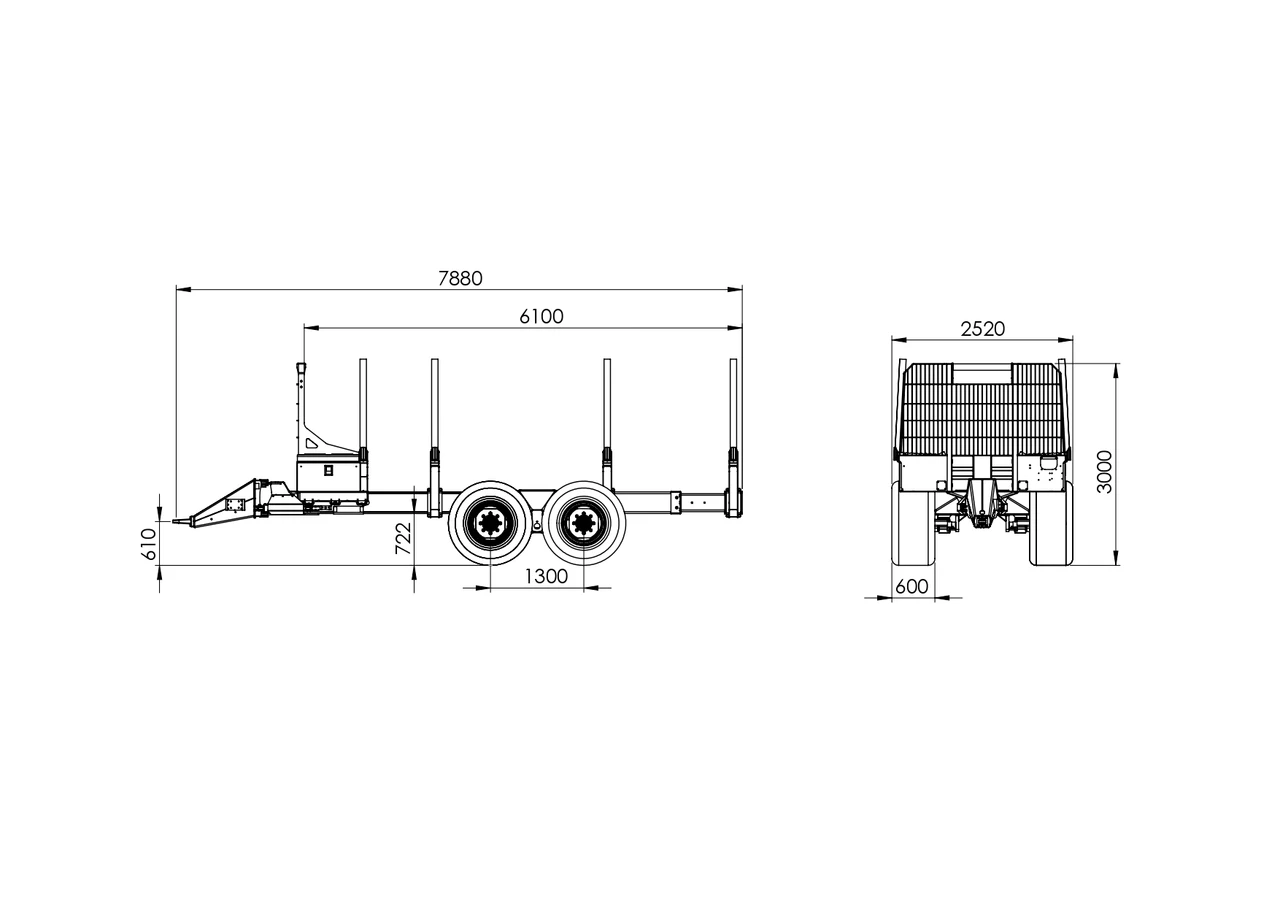

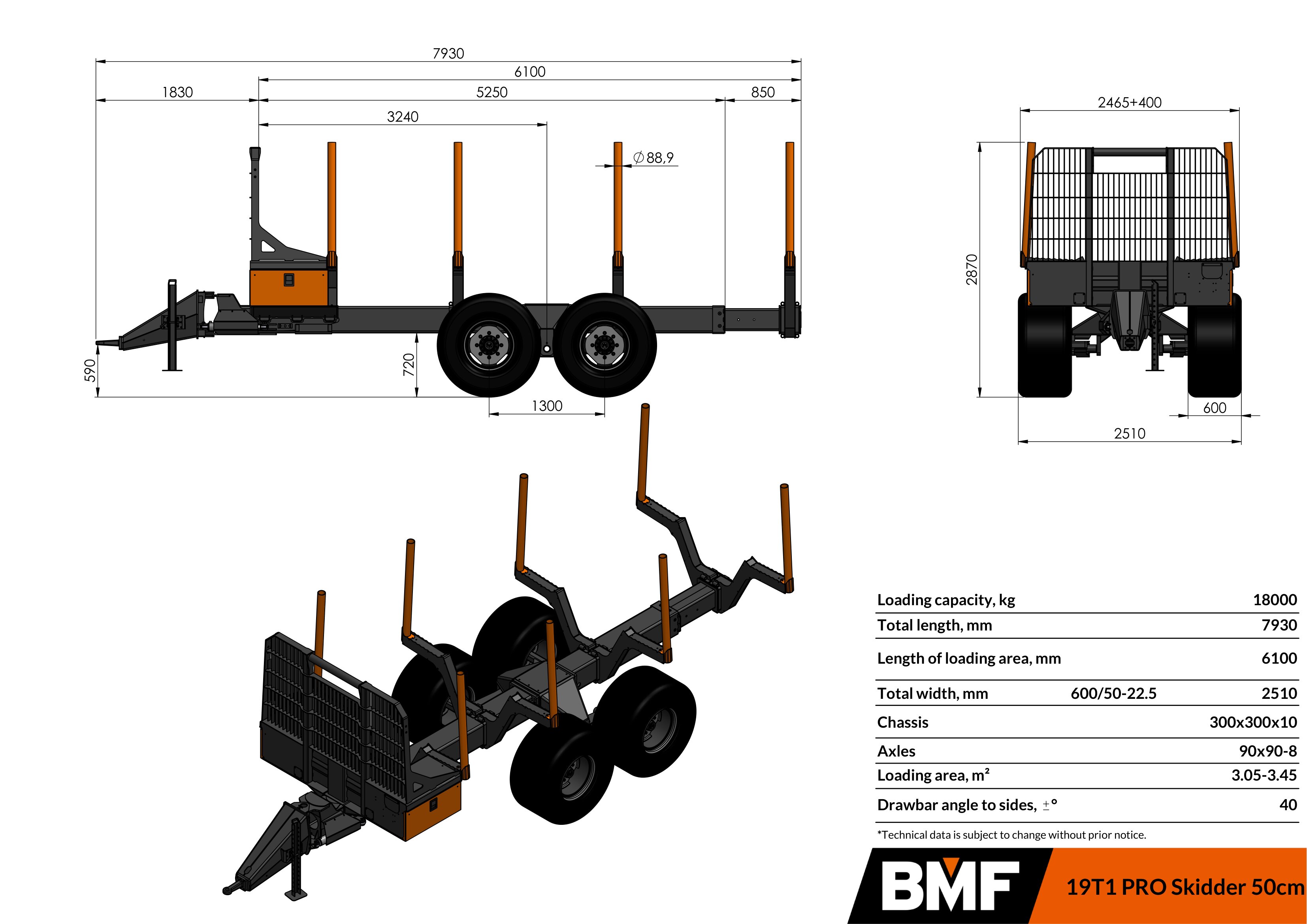

Measurements

BMF19T1Pro Skidder

Key advantages

Protected cylinders
The hydraulic cylinders are securely hidden inside the robust support legs of BMF trailers.
Protected oil pump

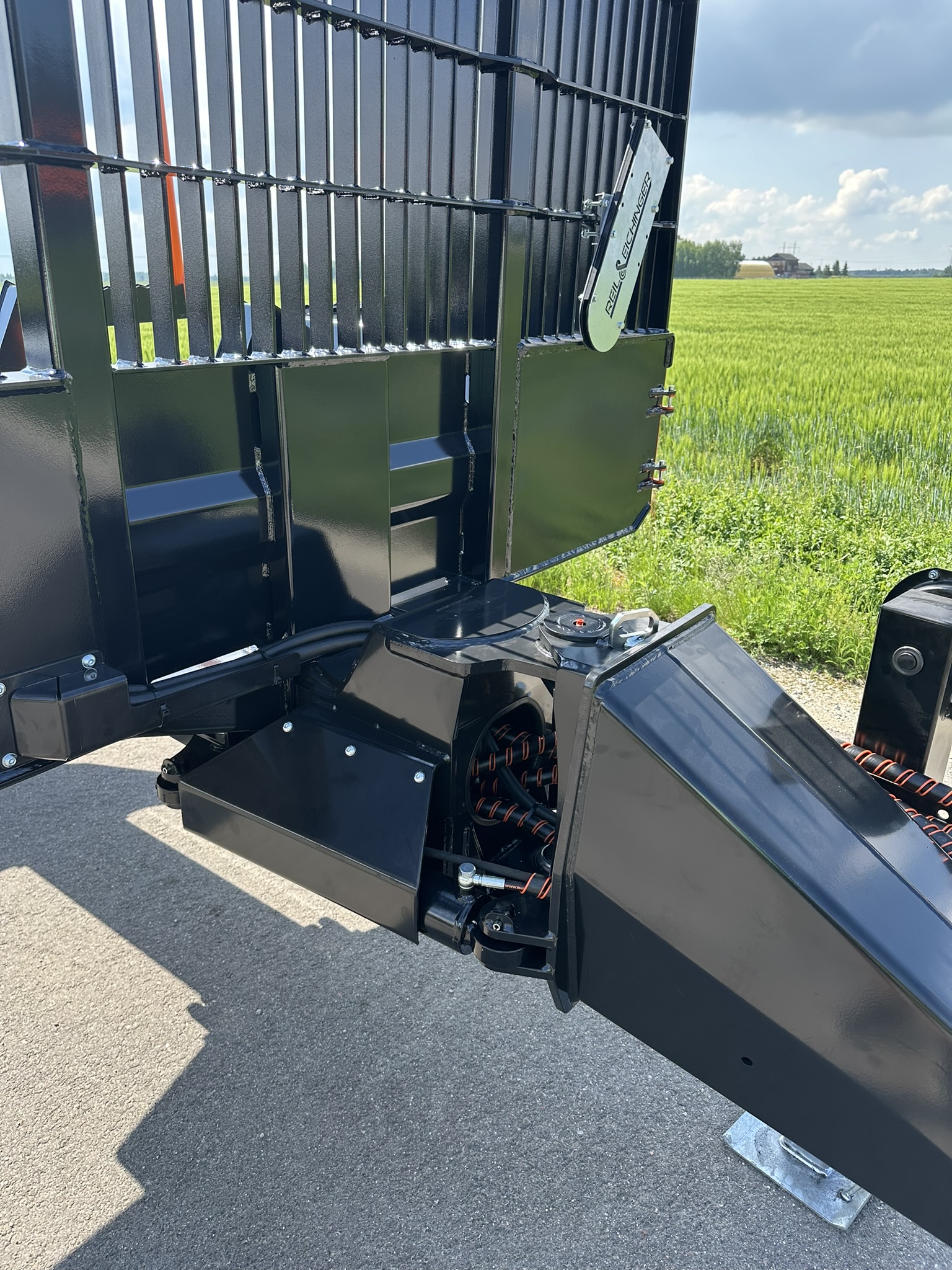

BMF trailers have a robust drawbar with a unique design that protects the oil pump. The oil pump is securely hidden inside the drawbar.
Robot-welded construction
High-quality robot welding and strategically positioned seams help the frame withstand rough terrain and heavy log loads over long service life.

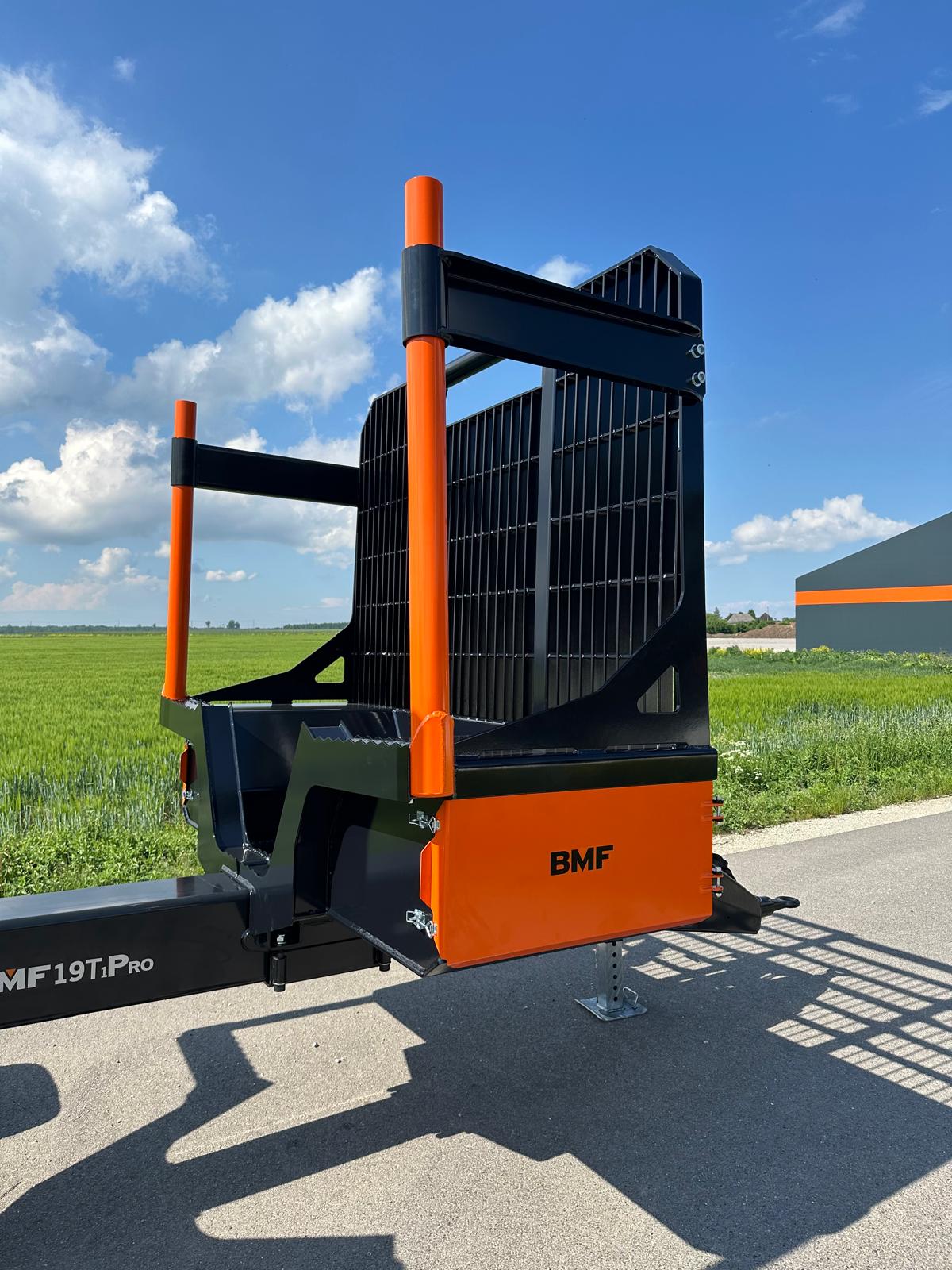

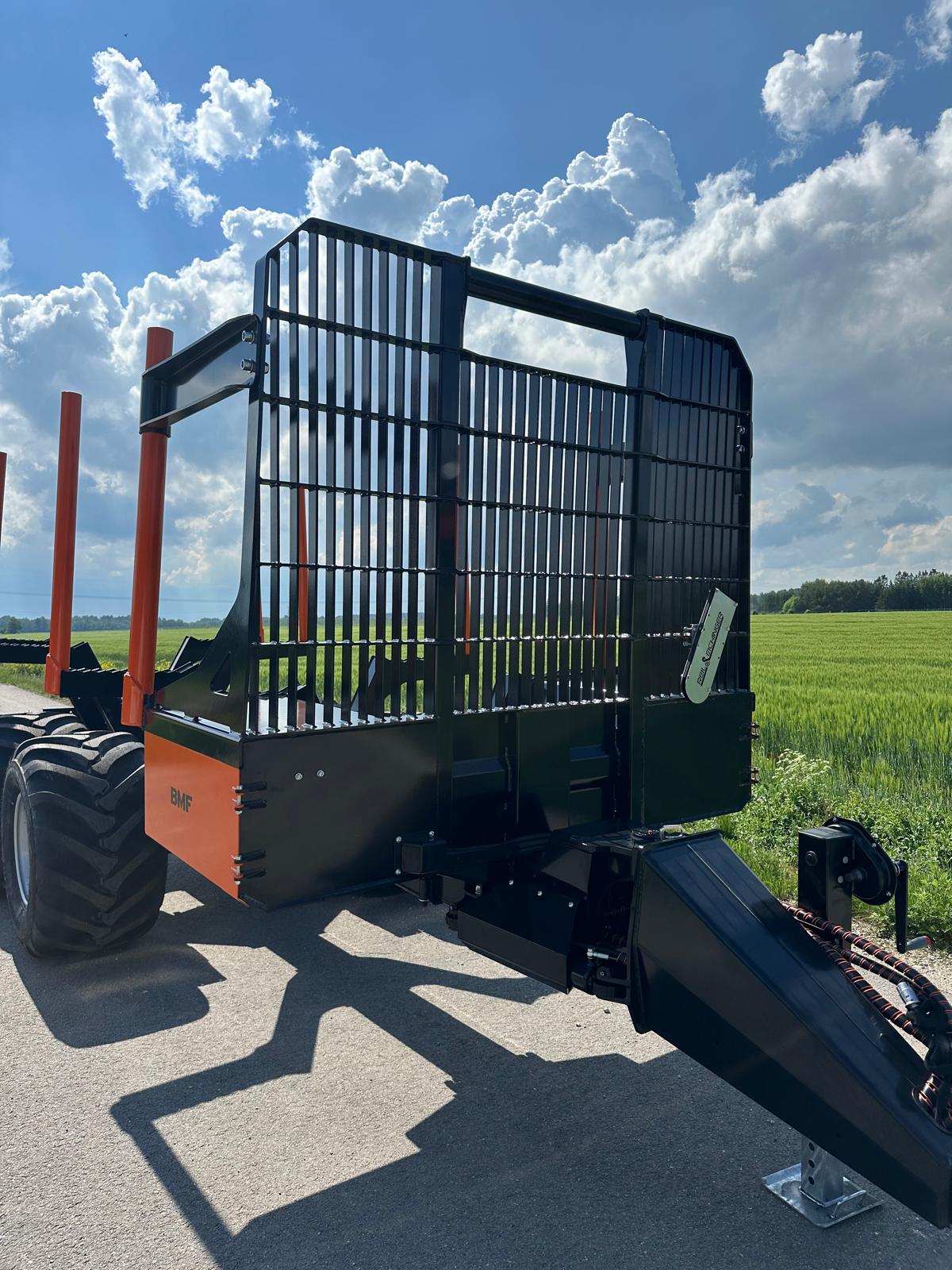

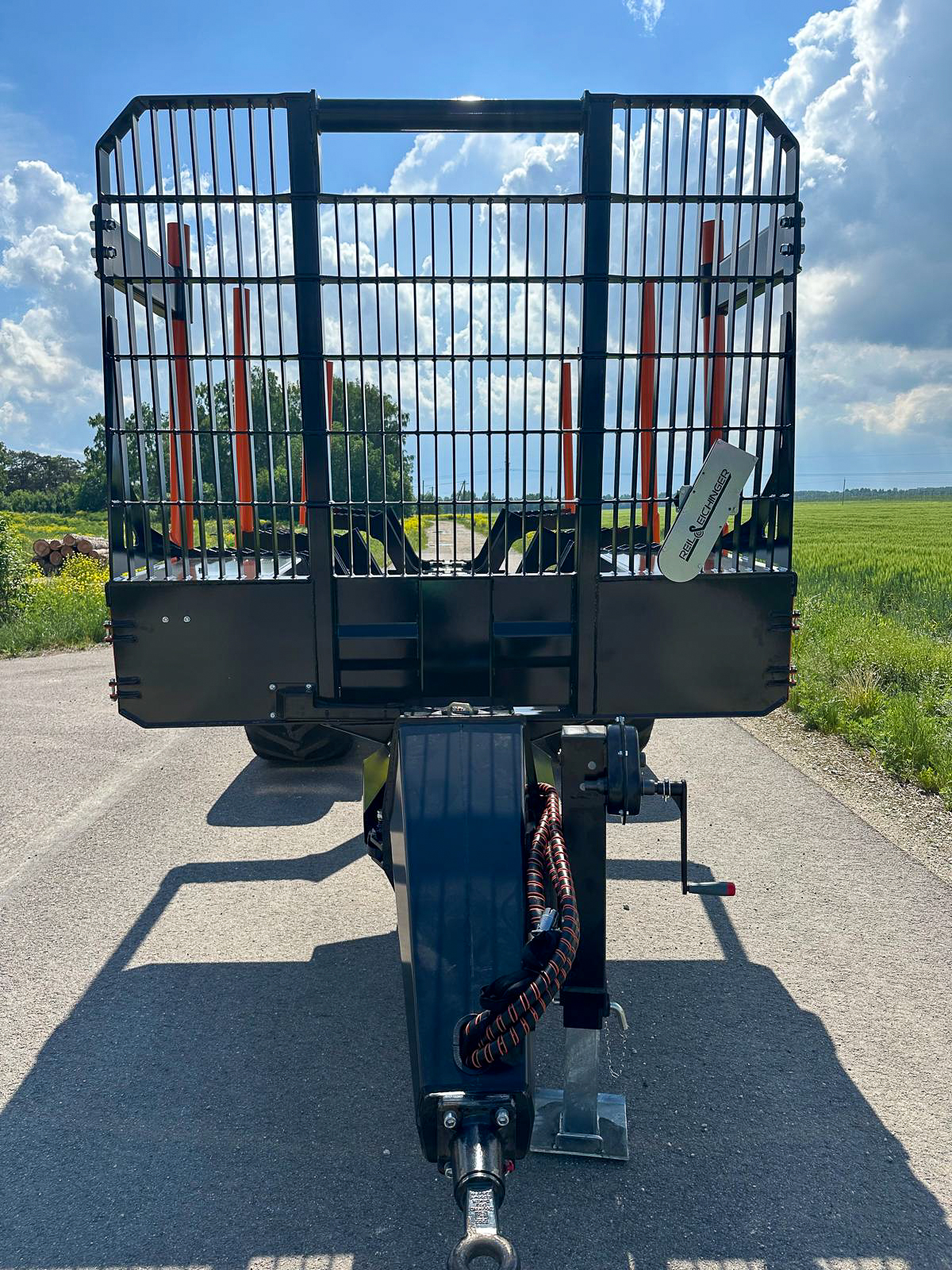

Heavy-duty safety grilles
All BMF single- and double-beam trailers feature strong safety grilles designed for everyday protection in forest conditions.
In-house manufacturing control
BMF produces metal details in-house (and many other components as well) to maintain consistent quality and durability across the machine.
Flexible drawbar connection
Multiple drawbar eye options and two drawbar heights help achieve smooth, correct coupling with different tractors and setups. The drawbar can be mechanically locked to a fixed position for safer, more stable road transport.
EU whole-vehicle type approval
BMF forestry trailers have EU whole-vehicle type approval under Regulation (EU) 167/2013 for use on public roads in EU countries (and neighbouring countries applying the regulation).
