BMF14T2

Two-beam forestry trailer with capacity of up to 14 t

This timber trailer has a payload of up to 14 t and you can choose between A and FD support legs. This trailer is made using special steel that makes it tough, yet lightweight. In addition, BMF14T2 has a turning drawbar that hides a securely protected oil pump. BMF Pro-series focuses on professional forestry, but is of great help around agricultural undertakings as well.

Ask for an offer

Technical details

BMF14T2

Loading capacity

14000 kg

Total length

6700 mm

Length of loading area

4200 mm

Total width with standard wheels

2425 mm

Wheels

550/45-22,5

Chassis

2x(200X100X8) mm

Axels

80X80-8

Loading area

2,7-3,15 m²

Drawbar cylinders

2 pcs

Drawbar angle to sides

35 ± °

Clearence

670 mm

Support leg

A / FD

Height

2535 mm

Extension

725 mm

* Technical data is subject to change without prior notice.

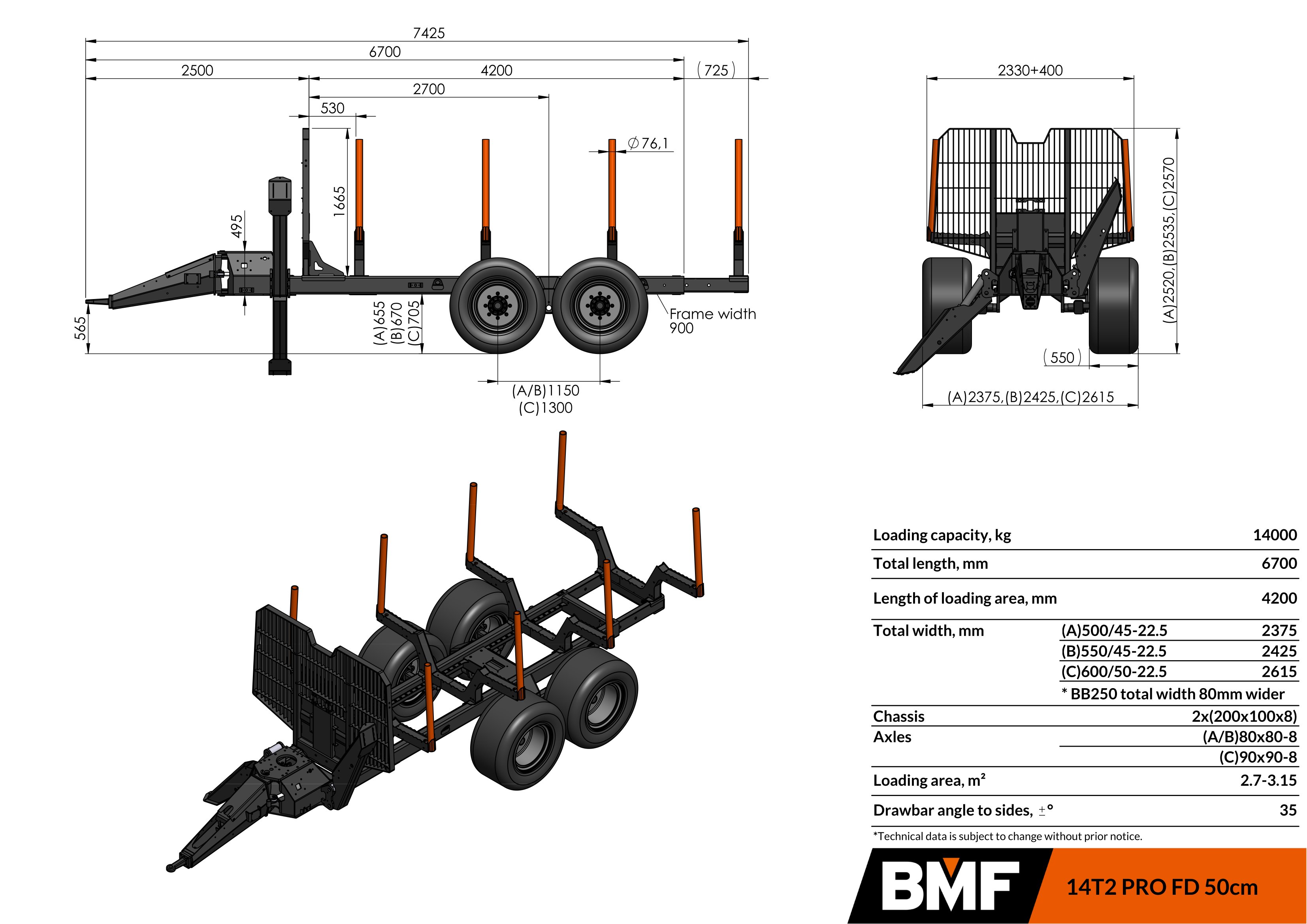

Measurements

Configuration options

Bolster options

Pro Bolsters

Enjoy flexibility with movable and extendable bolsters. Adjust the bolster positions along the trailer beam and expand the load area by pulling the poles outward. Toothed edges help keep logs securely in place. For added versatility, you can install plates between the PRO bolsters for transporting branches or as extra protection.

Drawbar options

Drawbar 80 cm

BMF trailers feature a robust hydraulic steering drawbar with a protected design that keeps the oil pump and hoses safely hidden inside. The drawbar can be mechanically locked for stable road transport and is available in 80 cm height, with multiple hitch options including K80.

Drawbar 50 cm

BMF trailers feature a robust hydraulic steering drawbar with a protected design that keeps the oil pump and hoses safely hidden inside. The drawbar can be mechanically locked for stable road transport and is available in 50 cm height, with multiple hitch options including K80.

Front Screen options

Toolbox version

Extra-robust, forwarder-style safety screen with integrated toolboxes on both sides—ideal for storing essential parts and tools securely on the trailer and keeping the work area tidy for better visibility. Available only with PRO bolsters. Reinforcement bar (fits between the grid and first stanchions), available as an optional accessory.

Standard

Robust safety screen that protects the tractor and crane area from shifting logs and debris during transport and loading. Fully compliant with EU requirements for safe road and forestry use. Reinforcement bar (fits between the grid and first stanchions), available as an optional accessory.

Support legs

A-type support legs

Hydraulically operated A-frame legs attached to the front screen for a compact, space-saving setup—ideal for narrow trails and working between trees.

Flap Down (FD) Legs

Hydraulically operated flap-down legs that open wide for a broad support stance and maximum steadiness during loading—best when you have enough side space to deploy them.

Key advantages

Protected cylinders

The hydraulic cylinders are securely hidden inside the robust support legs of BMF trailers.

Powder-coated surface

Double-component powder coating provides a tough, scratch-resistant surface that protects against wear, tear and corrosion—supporting higher resale value.

Protected oil pump

BMF trailers have a robust drawbar with a unique design that protects the oil pump. The oil pump is securely hidden inside the drawbar.

Stability

Cranes are positioned lower on BMF trailers to reduce the centre of gravity, and on most models the support legs are mounted directly to the trailer frame. Wide wheel spacing and balancing beams help the trailer stay steady and move smoothly on rough terrain.

In-house manufacturing control

BMF produces metal details in-house (and many other components as well) to maintain consistent quality and durability across the machine.

Strength-analysed frame design

BMF trailer frames are engineered according to load distribution and validated through thorough strength analysis for demanding forestry work.

Robot-welded construction

High-quality robot welding and strategically positioned seams help the frame withstand rough terrain and heavy log loads over long service life.

Heavy-duty safety grilles

All BMF single- and double-beam trailers feature strong safety grilles designed for everyday protection in forest conditions.

Strenx® performance steel

BMF trailers are optimized to be strong yet lightweight, using Strenx® performance steel and SSAB-certified design and material specifications

Flexible drawbar connection

Multiple drawbar eye options and two drawbar heights help achieve smooth, correct coupling with different tractors and setups. The drawbar can be mechanically locked to a fixed position for safer, more stable road transport.

EU whole-vehicle type approval

BMF forestry trailers have EU whole-vehicle type approval under Regulation (EU) 167/2013 for use on public roads in EU countries (and neighbouring countries applying the regulation).

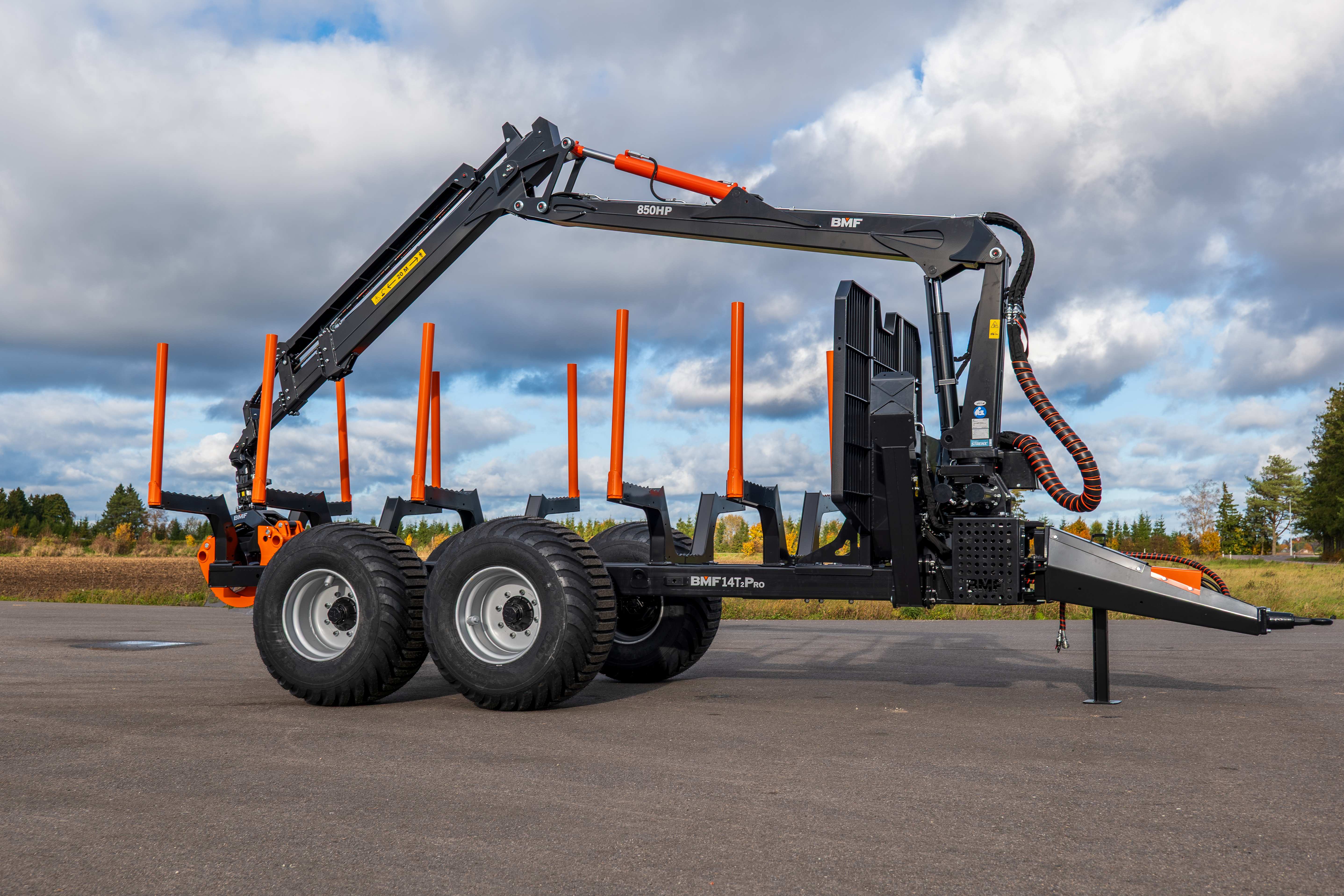

BMF14T2

Two-beam forestry trailer with capacity of up to 14 t

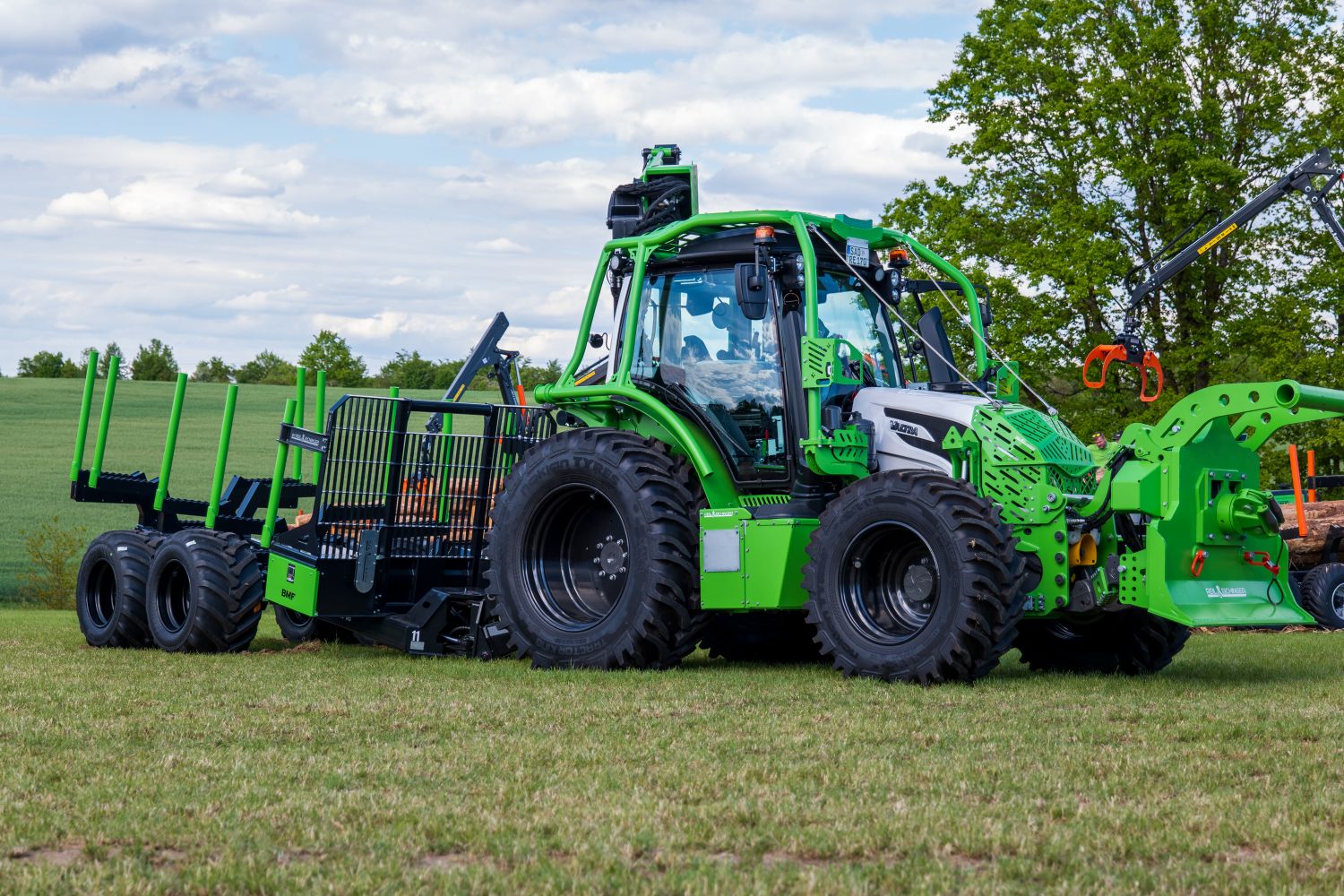

Bmf14t2pro bmf905 special colours green (9) forest set

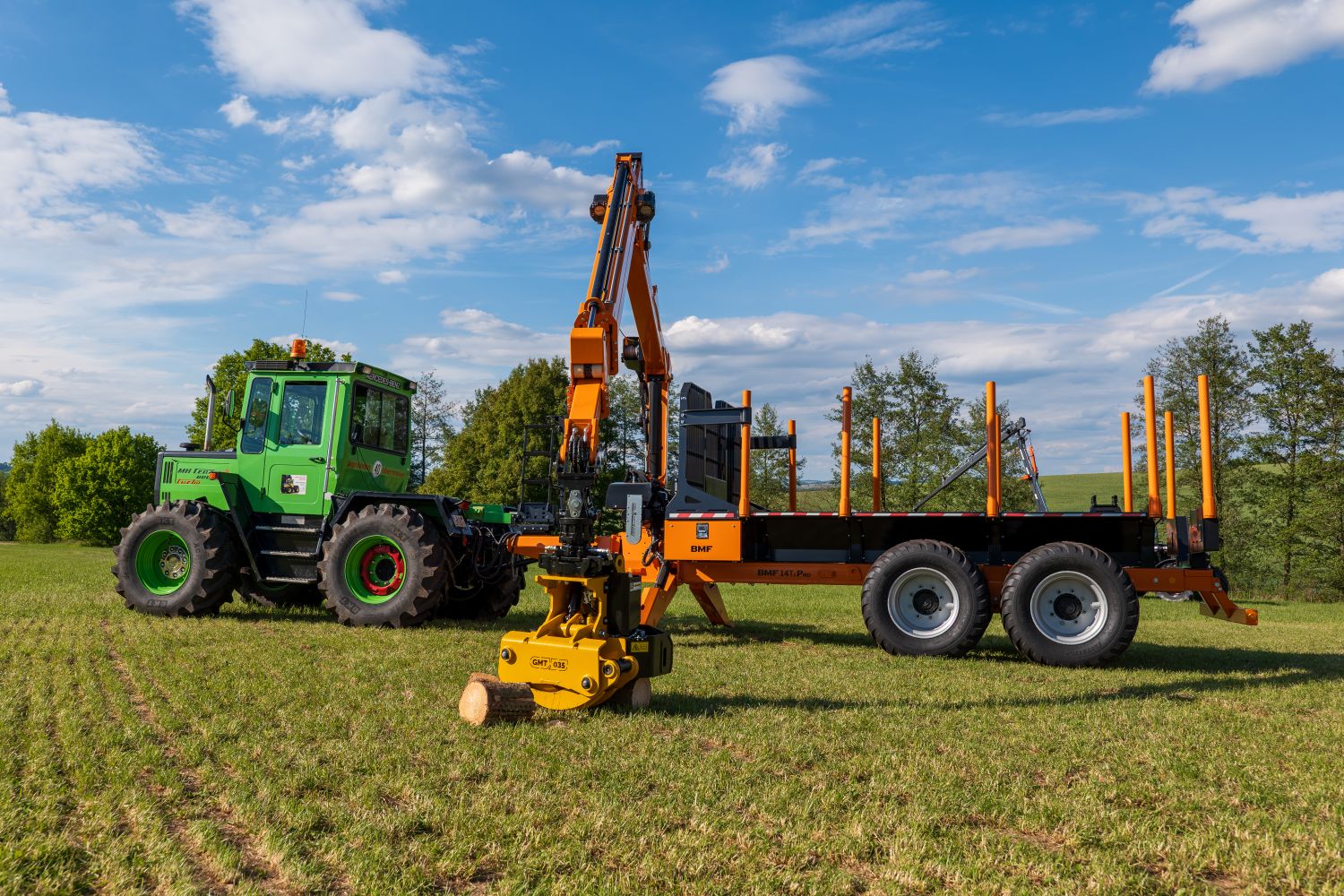

Bmf14t2pro bmf905hp special colours orange (6) forestry trailer and crane

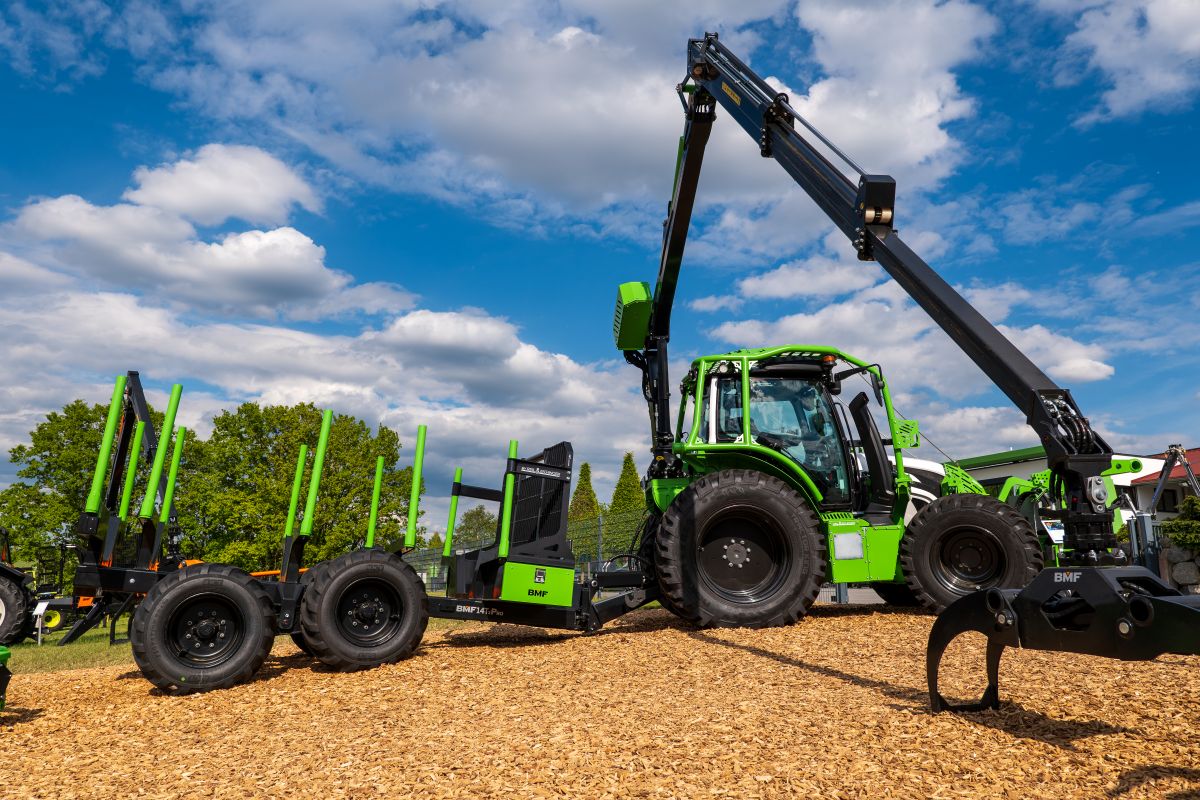

Bmf14t2pro bmf905 special colours green (4)

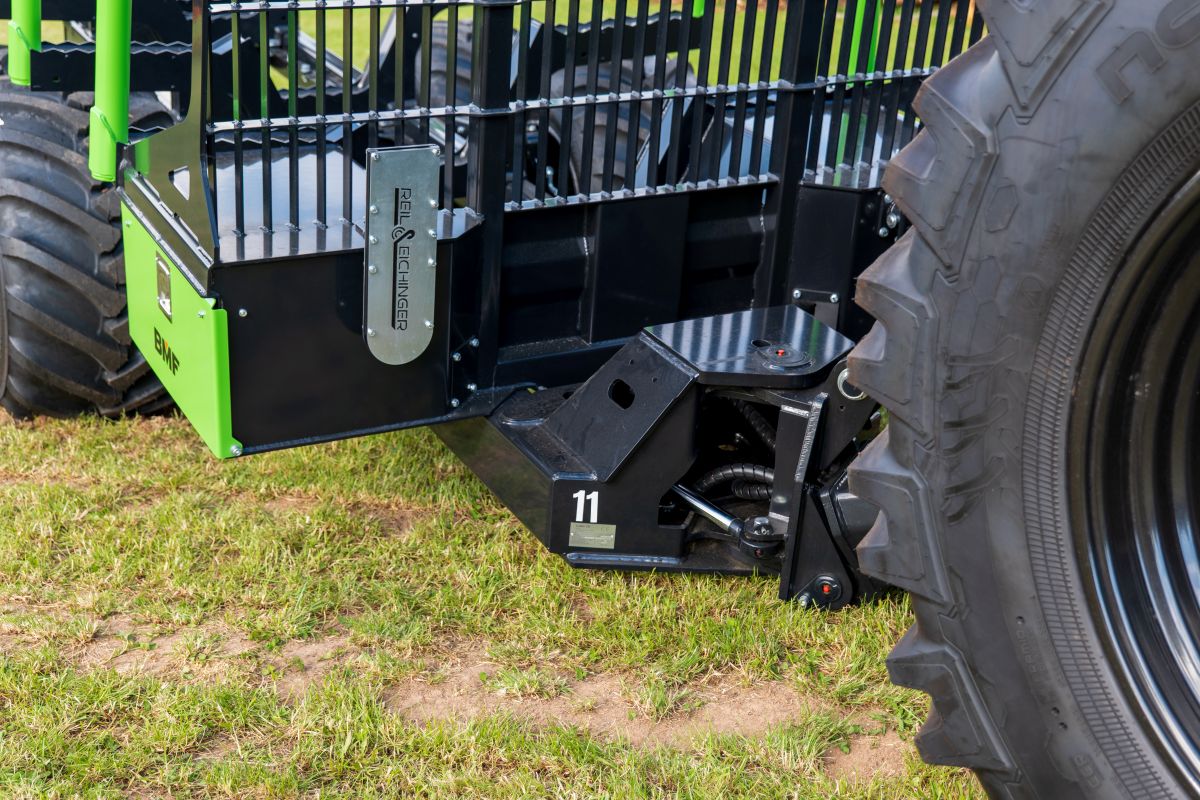

Bmf14t2pro bmf905 special colours green (8)

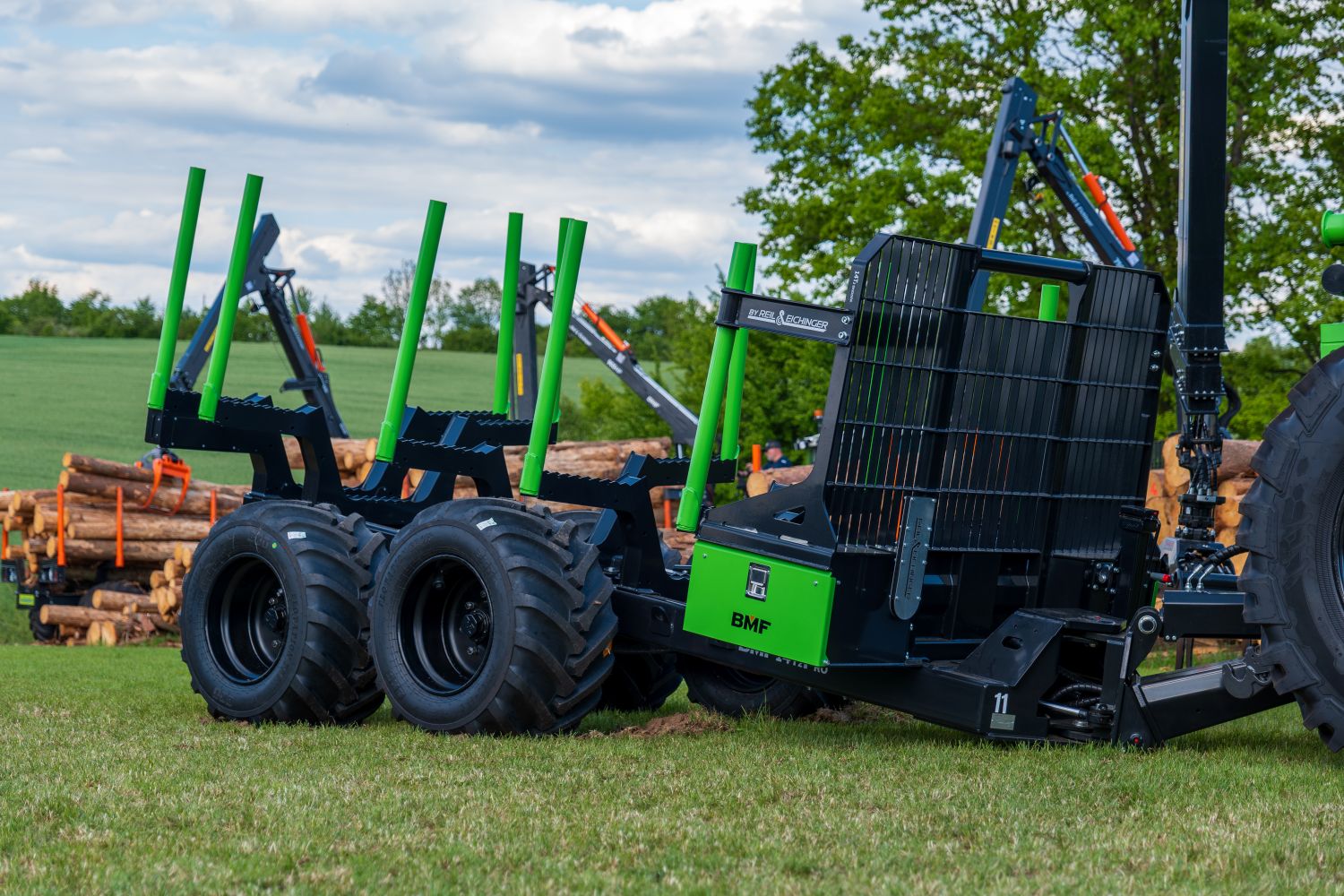

Bmf14t2pro bmf905 special colours green (10)

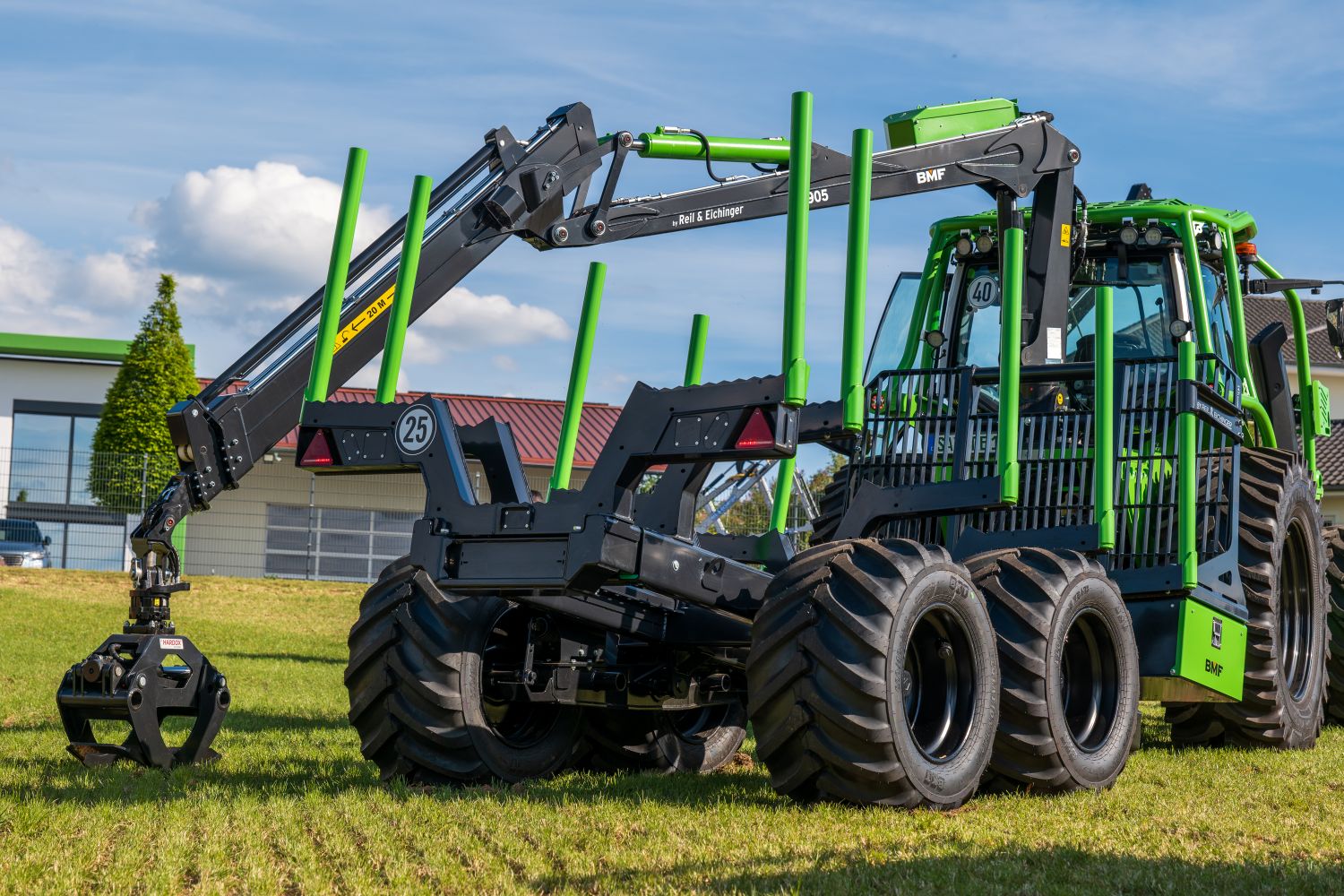

Bmf14t2pro bmf905 special colours green (2)

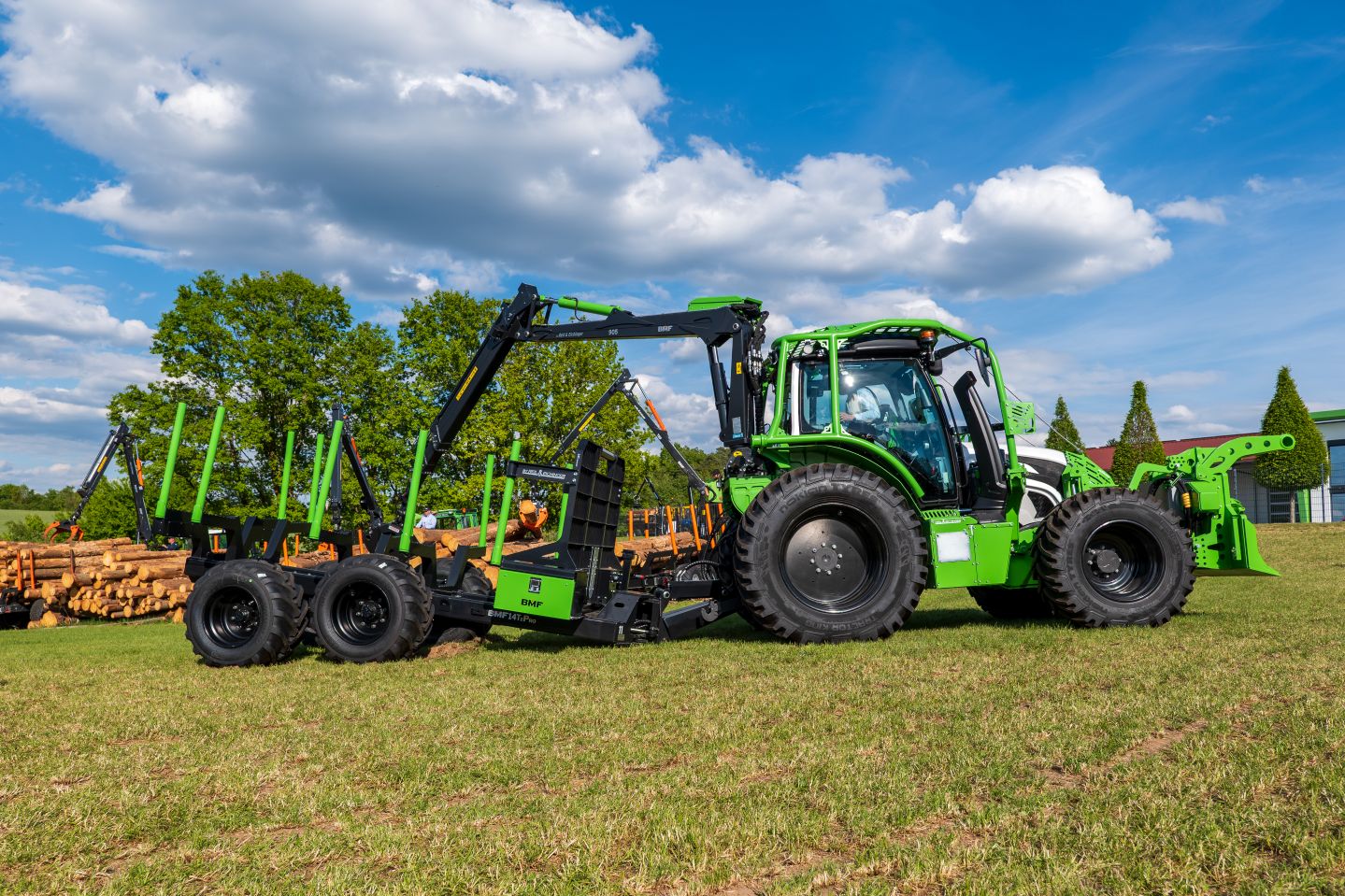

Bmf14t2pro bmf905 special colours green (14)

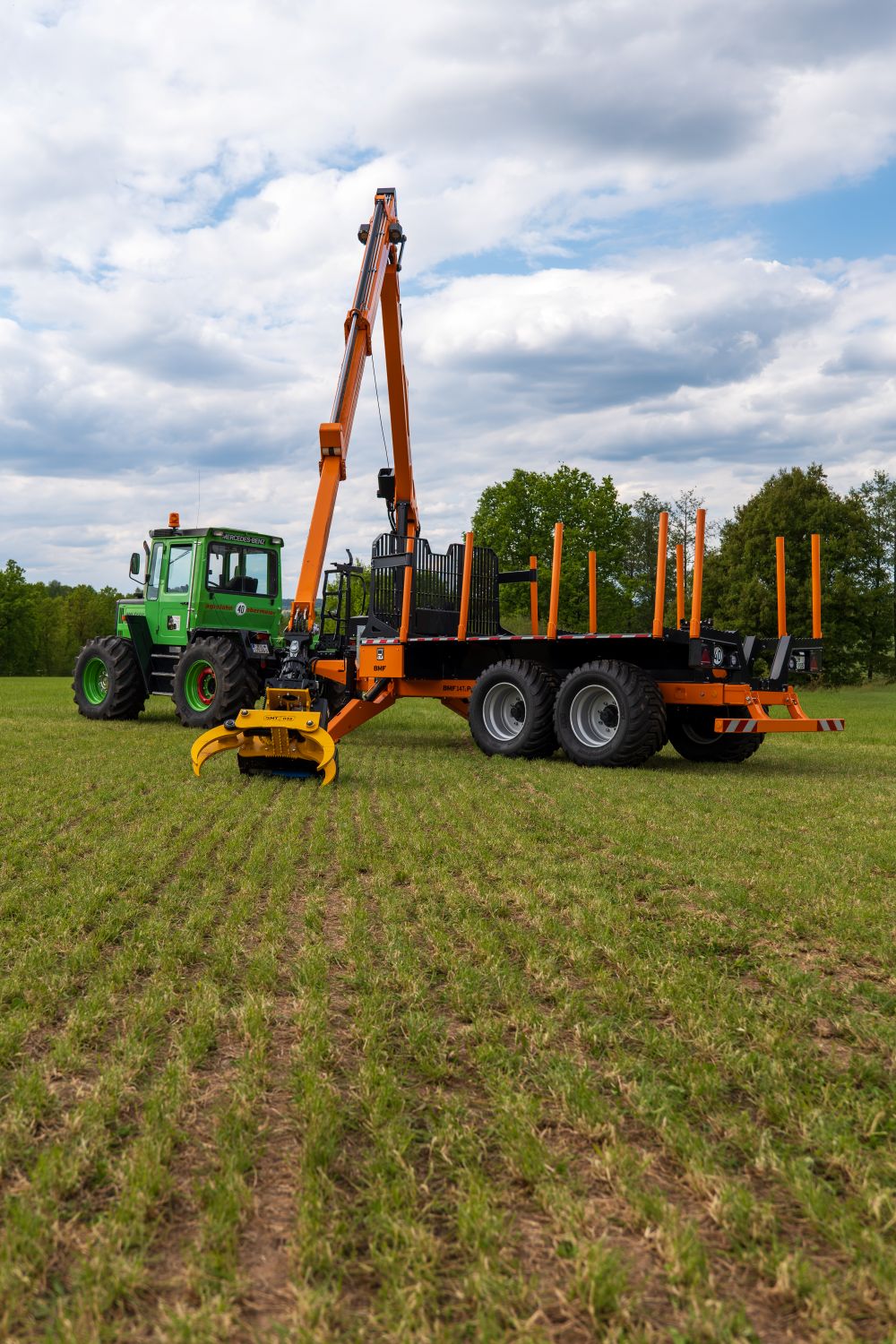

Bmf14t2pro bmf905hp special colours orange (3)

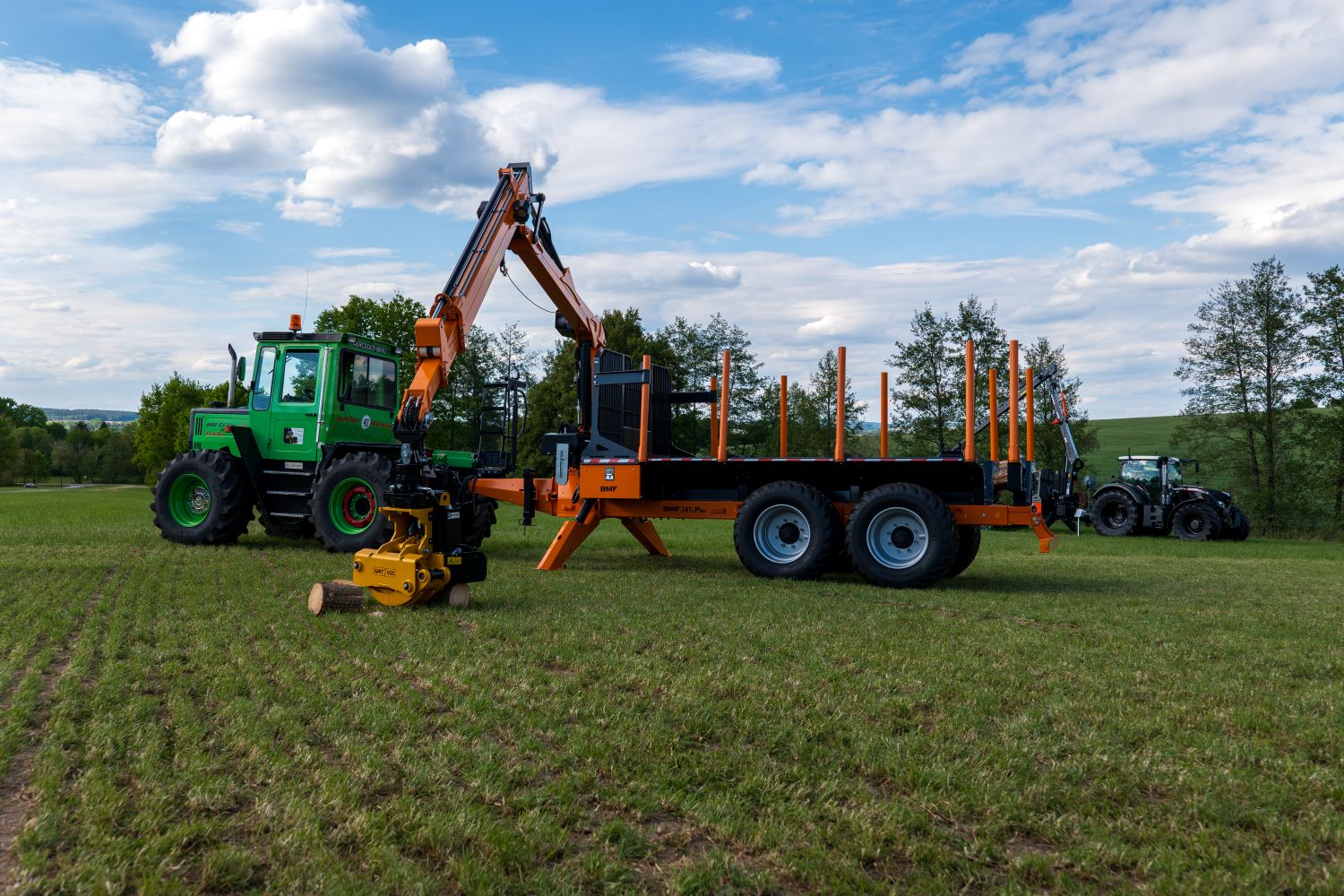

Bmf14t2pro bmf905hp special colours orange (4)

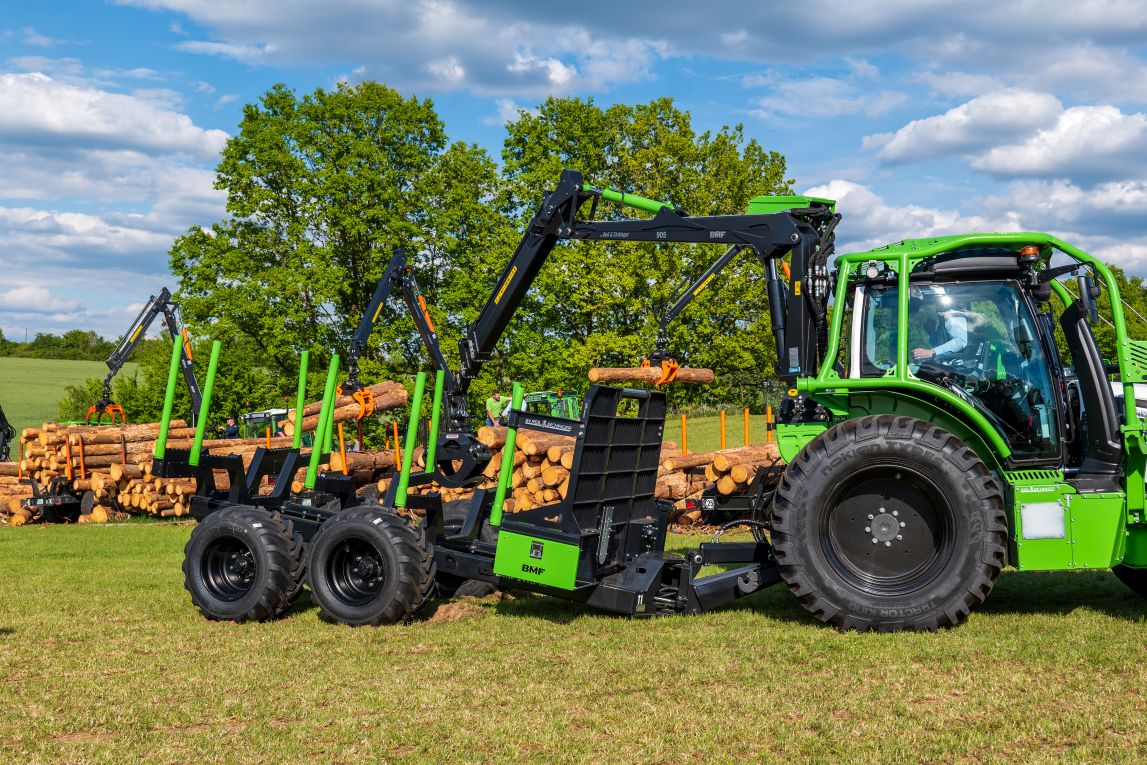

Bmf14t2pro bmf905 special colours green (1)
