BMF12T2

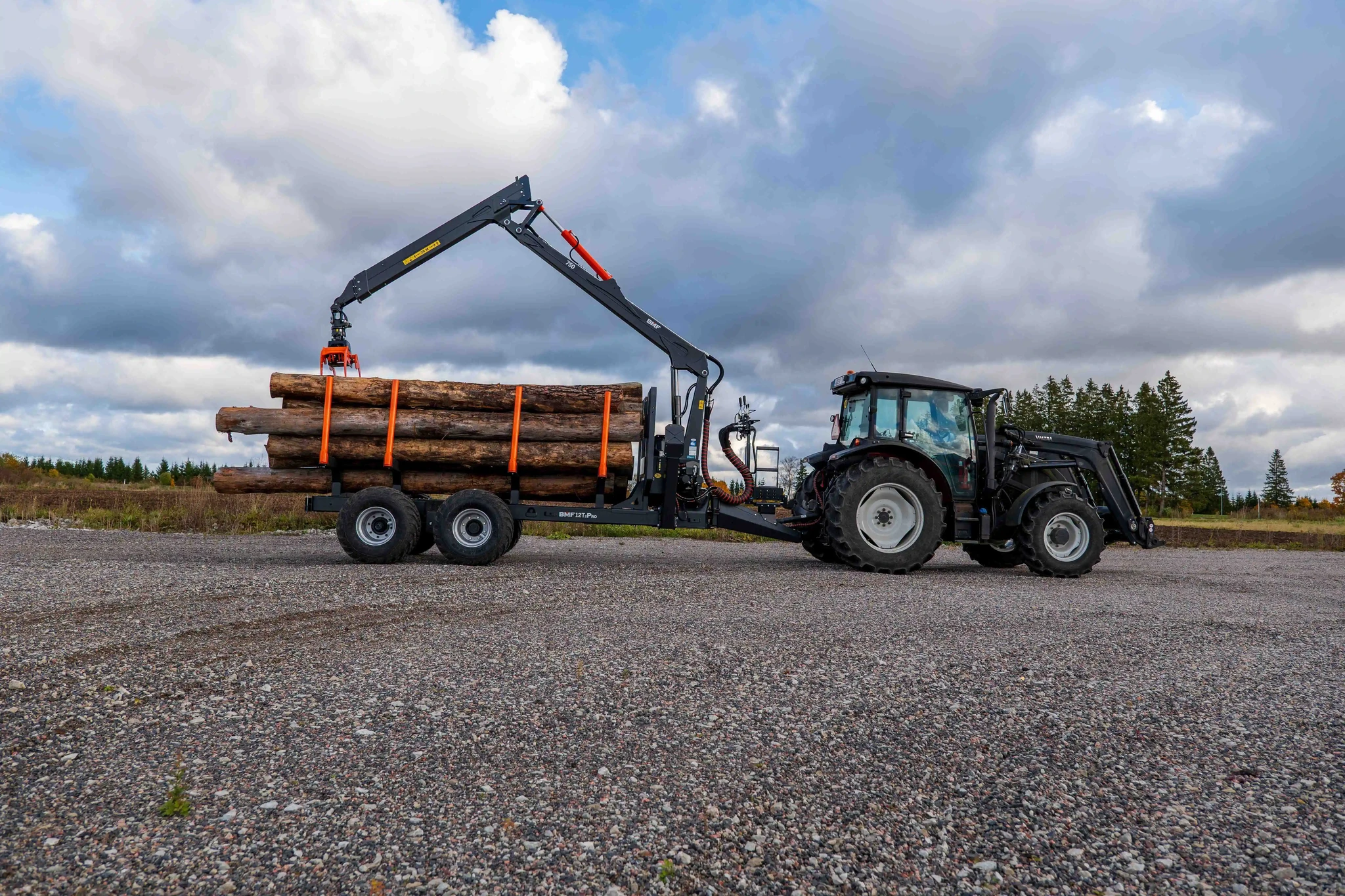

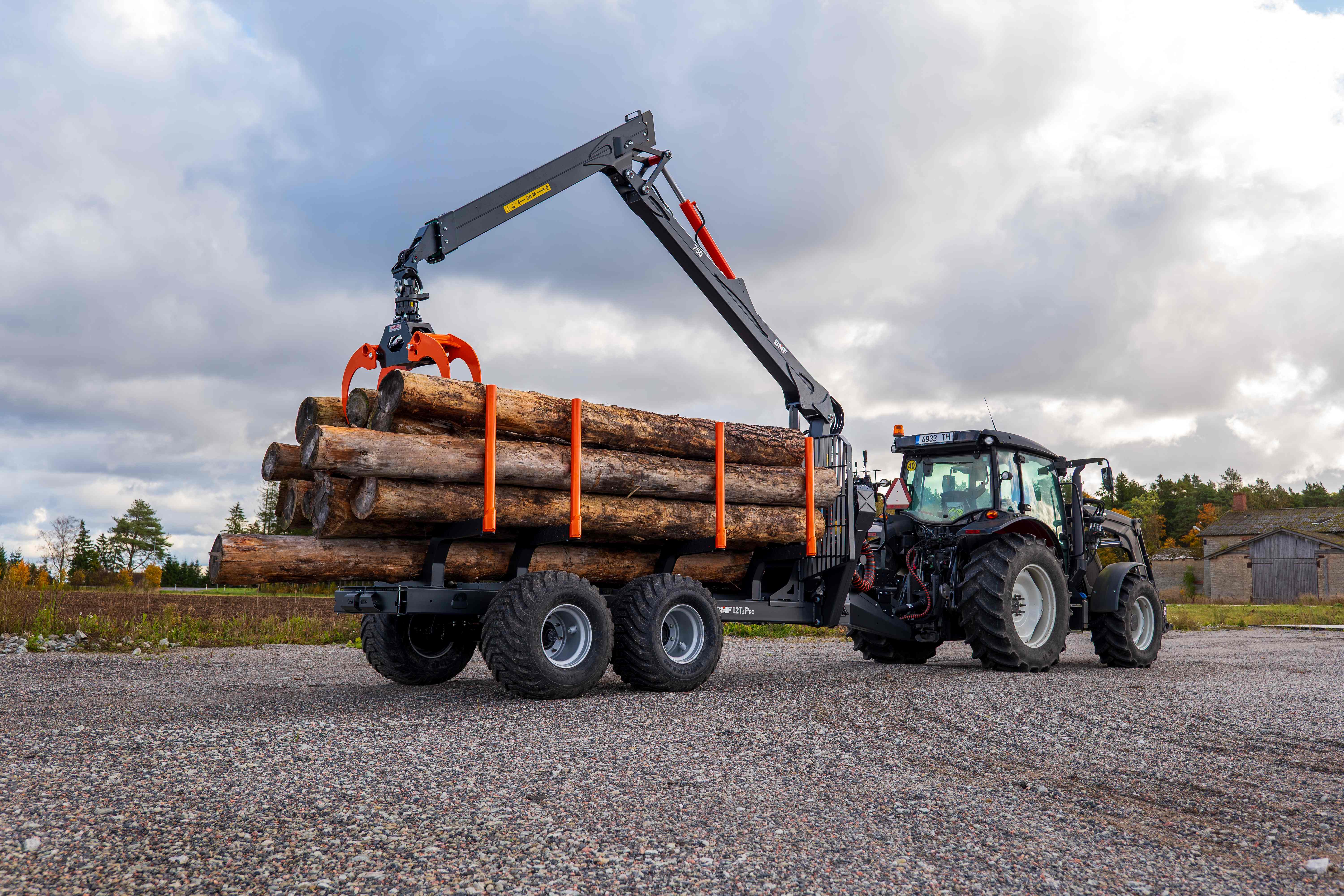

Two-beam trailer with capacity of up to 12 t

One of the most prominent characteristics of this versatile trailer is its robust construction. The loading beams of BMF12T2 are made of especially tough Strenx steel from Swedish provider SSAB. In addition, the main load-bearing frame is constructed of two 200x100 mm pipes with increased wall-thickness of 8 mm. To put it simply, the trailer has been optimized to be strong yet light thanks to special steel. Robustness of the BMF12T2 trailer is further supported by its uniquely designed drawbar that fully protects the oil pump, which is hidden inside of it.

Ask for an offer

Technical details

BMF12T2

Loading capacity

12000 kg

Total length

6700 mm

Length of loading area

4200 mm

Total width with standard wheels

2185 mm

Wheels

400/60-15,5
500/50-17
520/50-17

Chassis

2x(200x100x8) mm

Axels

70x70-6

Loading area

2,6-3,0 m²

Drawbar cylinders

2 pcs

Drawbar angle to sides

35 ± °

Clearence

565 mm

Support leg

A / FD

Height

2350 mm

Extension

725 mm

* Technical data is subject to change without prior notice.

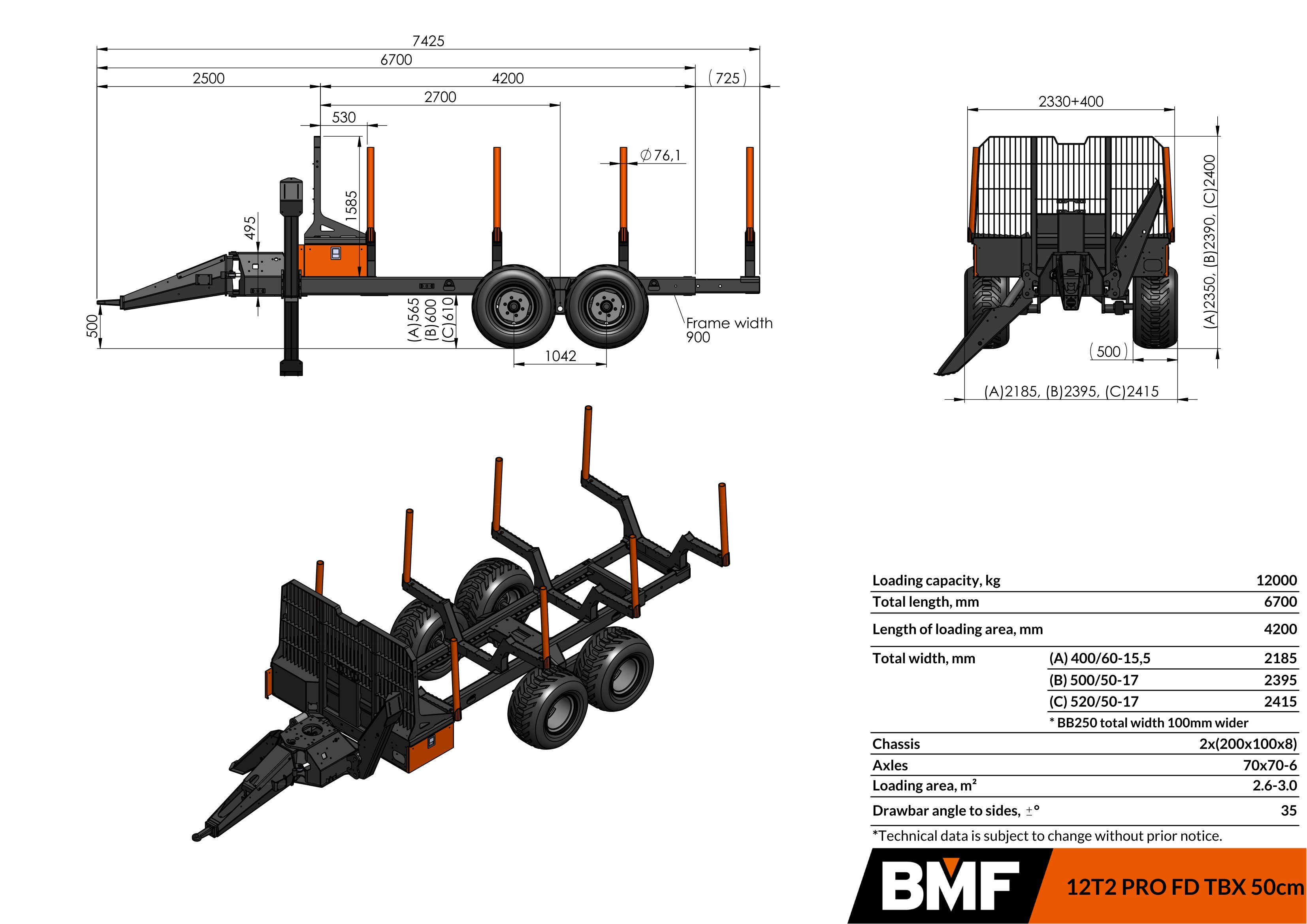

Measurements

Configuration options

Bolster options

Pro Bolsters

Enjoy flexibility with movable and extendable bolsters. Adjust the bolster positions along the trailer beam and expand the load area by pulling the poles outward. Toothed edges help keep logs securely in place. For added versatility, you can install plates between the PRO bolsters for transporting branches or as extra protection.

Standard Bolsters

Streamline your trailer's profile for parking or maneuvering by turning the bolsters inwards. This compact position enhances convenience when you're not in action. True classics that have been around for ages.

Hybrid Bolsters

Experience the best of both worlds with our innovative hybrid bolsters. These bolsters offer the advantages of both Pro and Standard versions: toothed edges, extendable poles, and the ability to turn them inwards.

Drawbar options

Drawbar 80 cm

BMF trailers feature a robust hydraulic steering drawbar with a protected design that keeps the oil pump and hoses safely hidden inside. The drawbar can be mechanically locked for stable road transport and is available in 80 cm height, with multiple hitch options including K80.

Drawbar 50 cm

BMF trailers feature a robust hydraulic steering drawbar with a protected design that keeps the oil pump and hoses safely hidden inside. The drawbar can be mechanically locked for stable road transport and is available in 50 cm height, with multiple hitch options including K80.

Front Screen options

Toolbox version

Extra-robust, forwarder-style safety screen with integrated toolboxes on both sides—ideal for storing essential parts and tools securely on the trailer and keeping the work area tidy for better visibility. Available only with PRO bolsters. Reinforcement bar (fits between the grid and first stanchions), available as an optional accessory.

Standard

Robust safety screen that protects the tractor and crane area from shifting logs and debris during transport and loading. Fully compliant with EU requirements for safe road and forestry use. Reinforcement bar (fits between the grid and first stanchions), available as an optional accessory.

Support legs

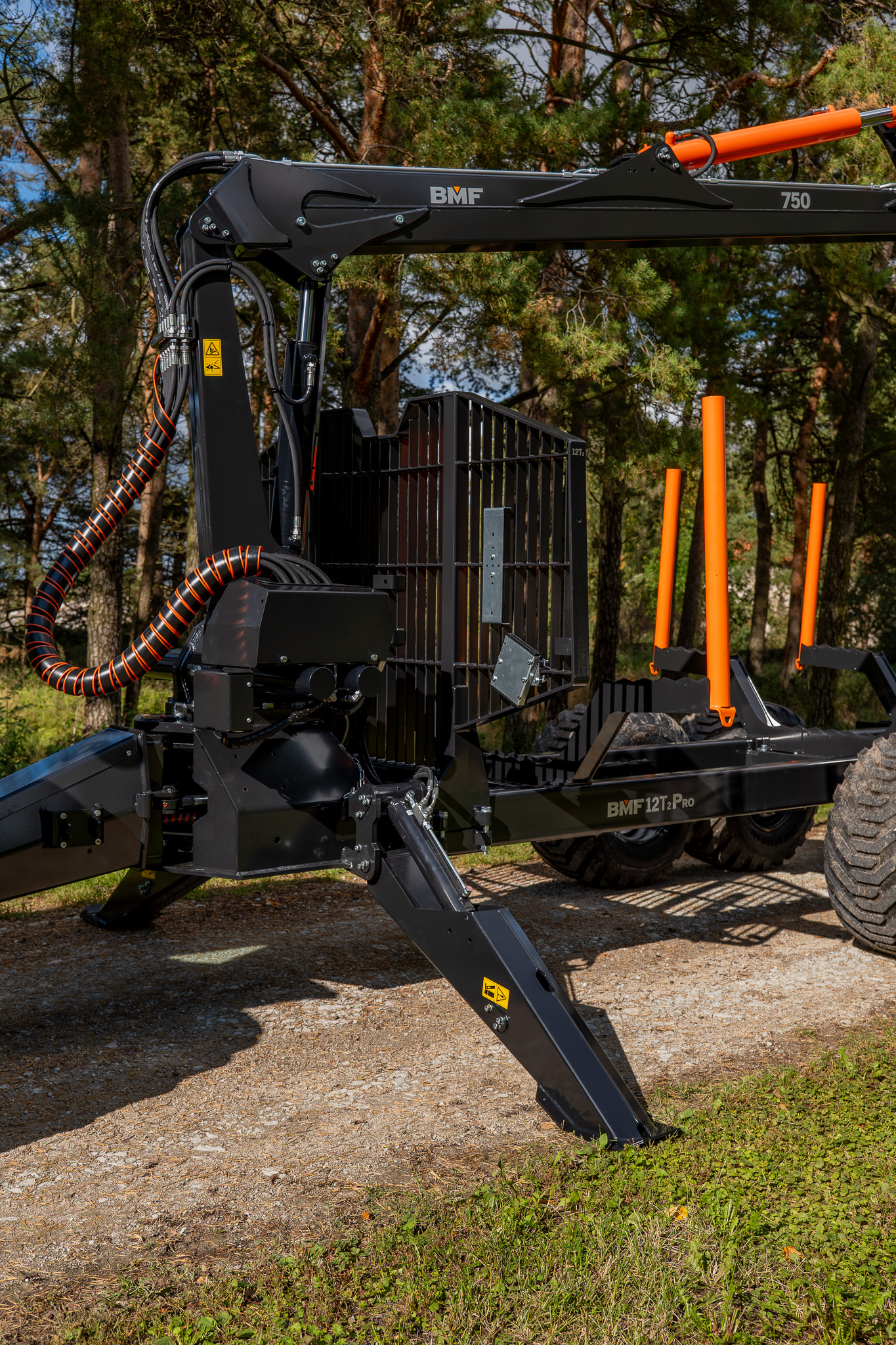

A-type support legs

Hydraulically operated A-frame legs attached to the front screen for a compact, space-saving setup—ideal for narrow trails and working between trees.

Flap Down (FD) Legs

Hydraulically operated flap-down legs that open wide for a broad support stance and maximum steadiness during loading—best when you have enough side space to deploy them.

Key advantages

Protected cylinders

The hydraulic cylinders are securely hidden inside the robust support legs of BMF trailers.

Stability

Cranes are positioned lower on BMF trailers to reduce the centre of gravity, and on most models the support legs are mounted directly to the trailer frame. Wide wheel spacing and balancing beams help the trailer stay steady and move smoothly on rough terrain.

Protected oil pump

BMF trailers have a robust drawbar with a unique design that protects the oil pump. The oil pump is securely hidden inside the drawbar.

In-house manufacturing control

BMF produces metal details in-house (and many other components as well) to maintain consistent quality and durability across the machine.

Powder-coated surface

Double-component powder coating provides a tough, scratch-resistant surface that protects against wear, tear and corrosion—supporting higher resale value.

Strength-analysed frame design

BMF trailer frames are engineered according to load distribution and validated through thorough strength analysis for demanding forestry work.

Robot-welded construction

High-quality robot welding and strategically positioned seams help the frame withstand rough terrain and heavy log loads over long service life.

Heavy-duty safety grilles

All BMF single- and double-beam trailers feature strong safety grilles designed for everyday protection in forest conditions.

Strenx® performance steel

BMF trailers are optimized to be strong yet lightweight, using Strenx® performance steel and SSAB-certified design and material specifications

Flexible drawbar connection

Multiple drawbar eye options and two drawbar heights help achieve smooth, correct coupling with different tractors and setups. The drawbar can be mechanically locked to a fixed position for safer, more stable road transport.

EU whole-vehicle type approval

BMF forestry trailers have EU whole-vehicle type approval under Regulation (EU) 167/2013 for use on public roads in EU countries (and neighbouring countries applying the regulation).

BMF12T2

Two-beam trailer with capacity of up to 12 t

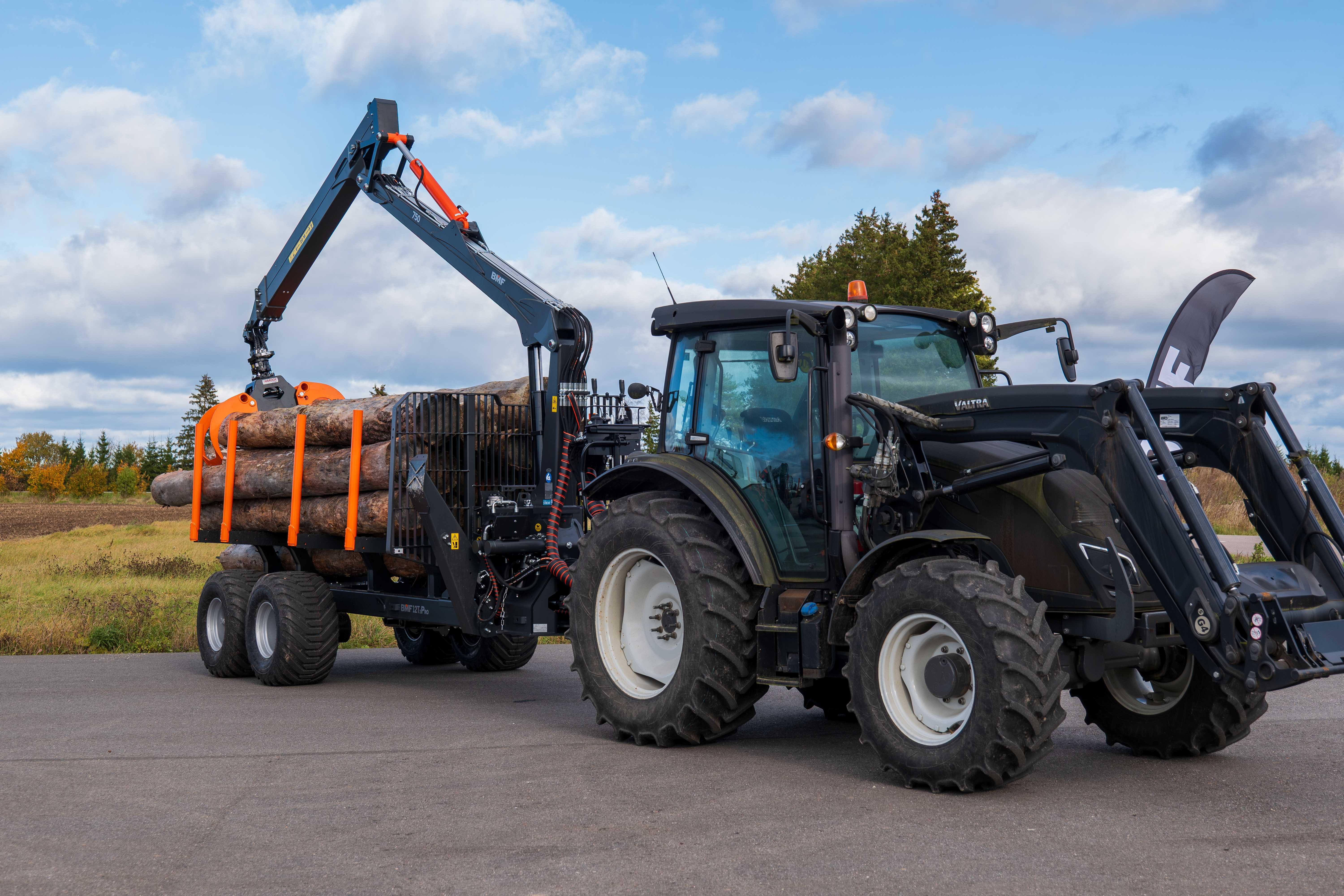

Bmf12t2pro trailer bmf750 gray forest crane 2025 (11)

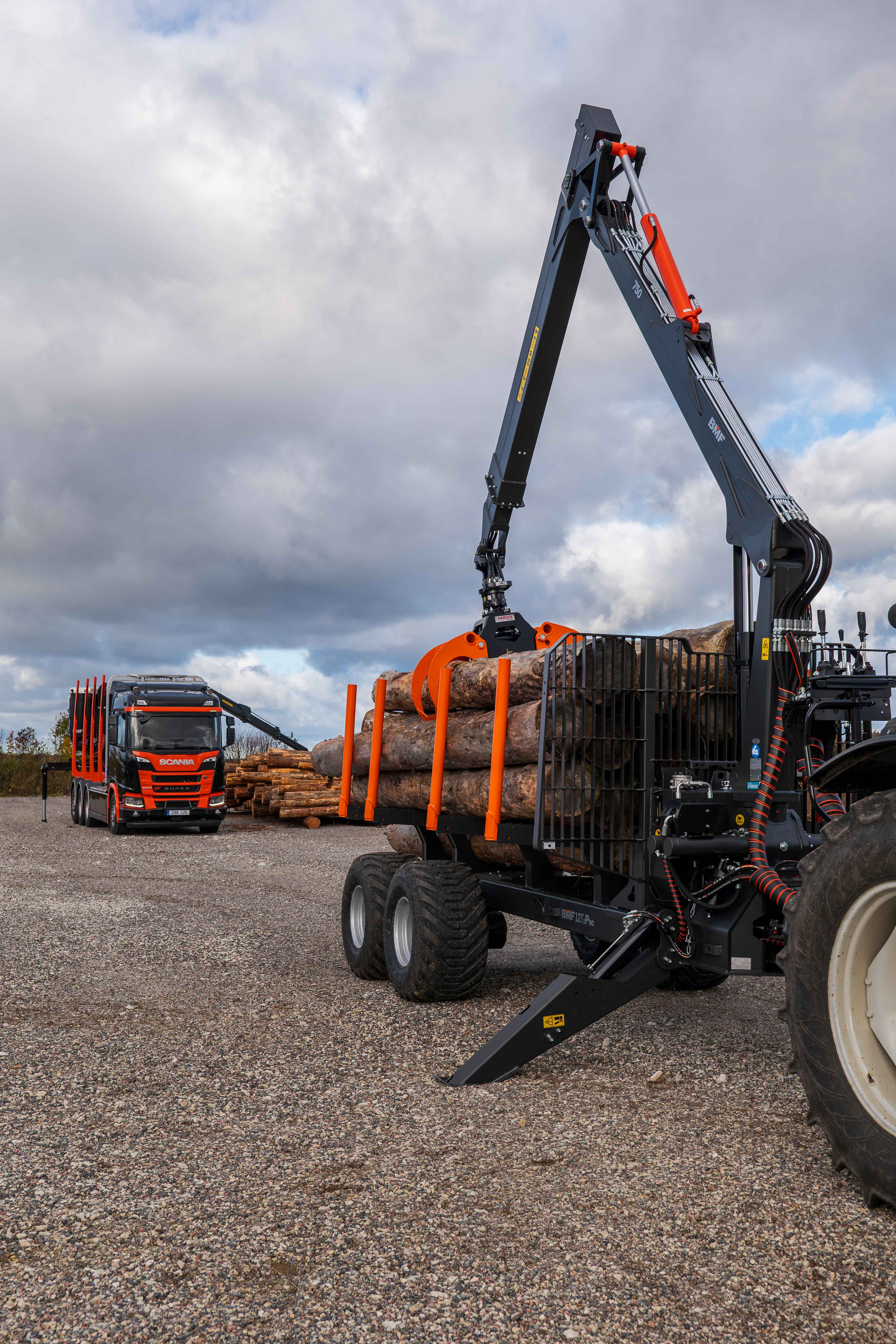

Bmf12t2pro trailer bmf750 gray forest crane 2025 (10)

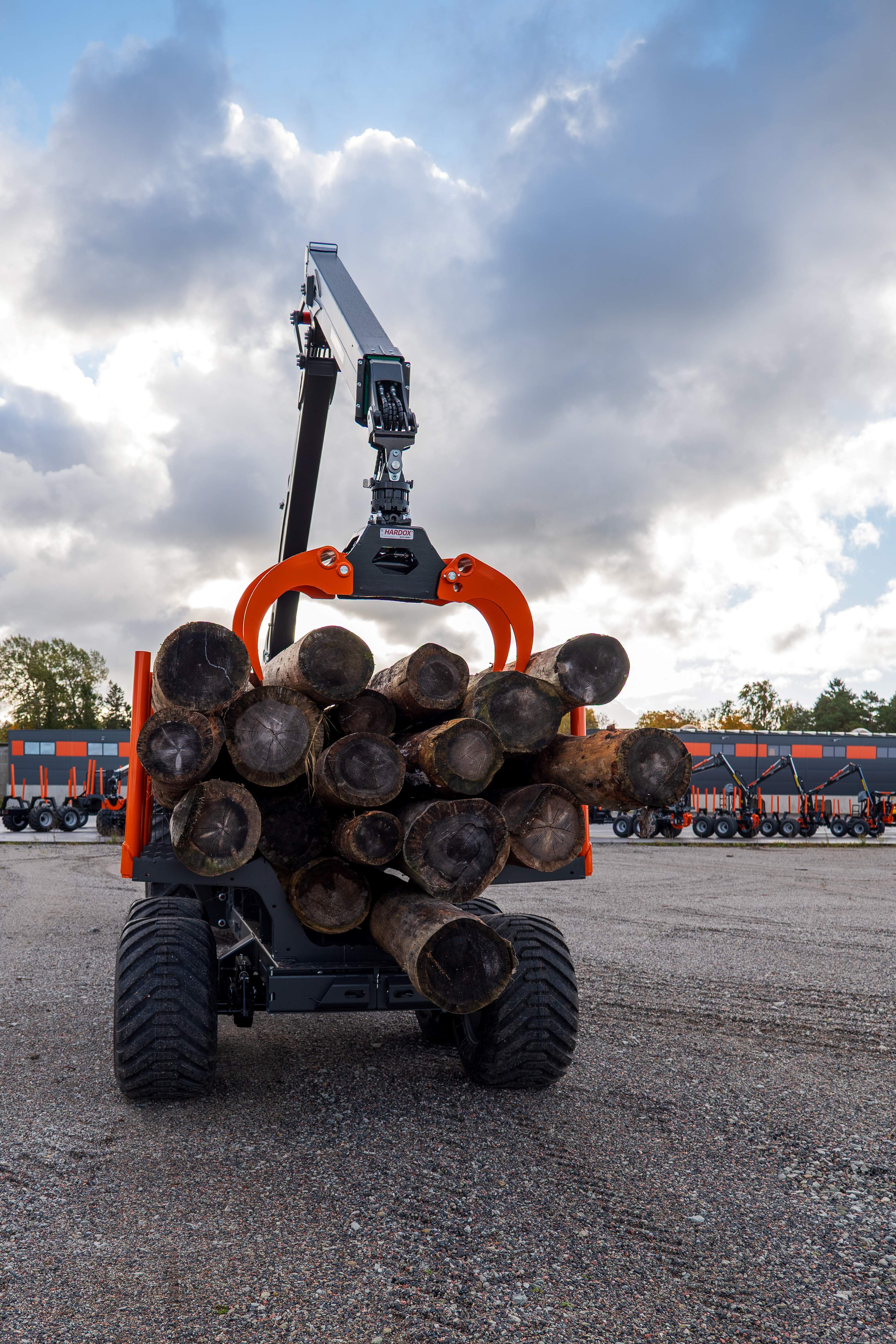

Bmf12t2pro trailer bmf750 gray forest crane 2025 (1)

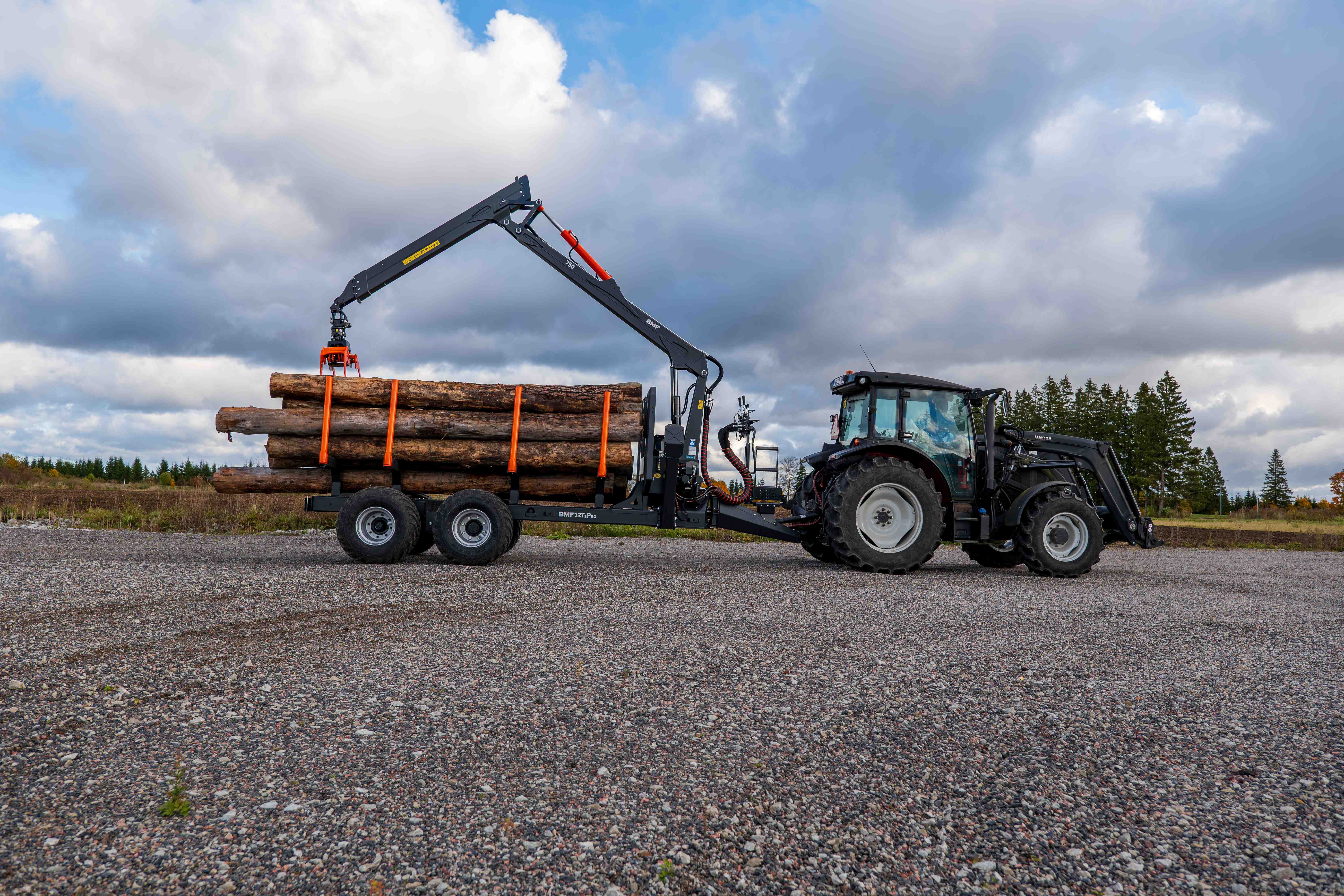

Bmf12t2pro trailer bmf750 gray forest crane 2025 (3)

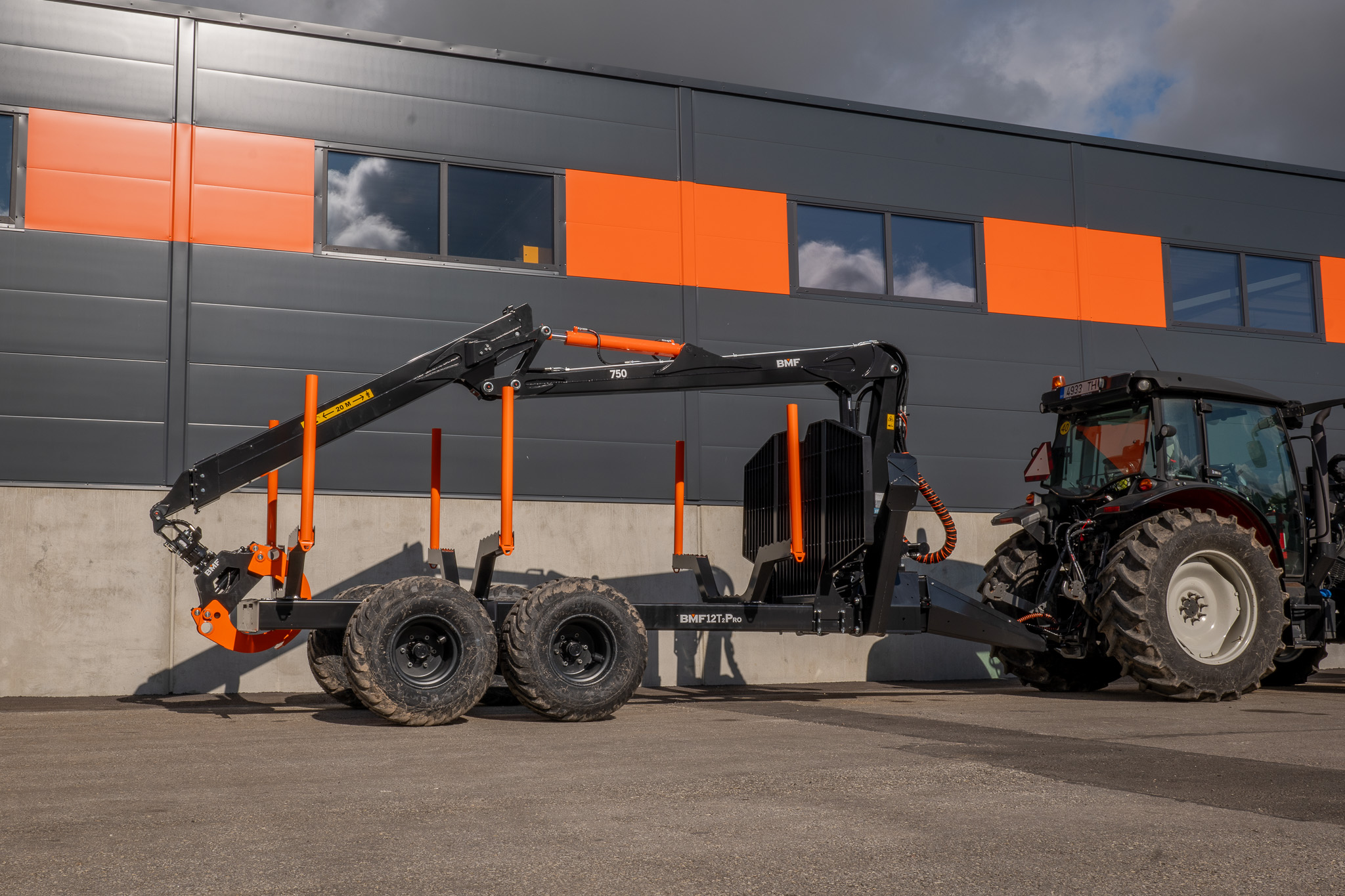

P1043401 bmf12t2pro trailer bmf750 crane 2023 small

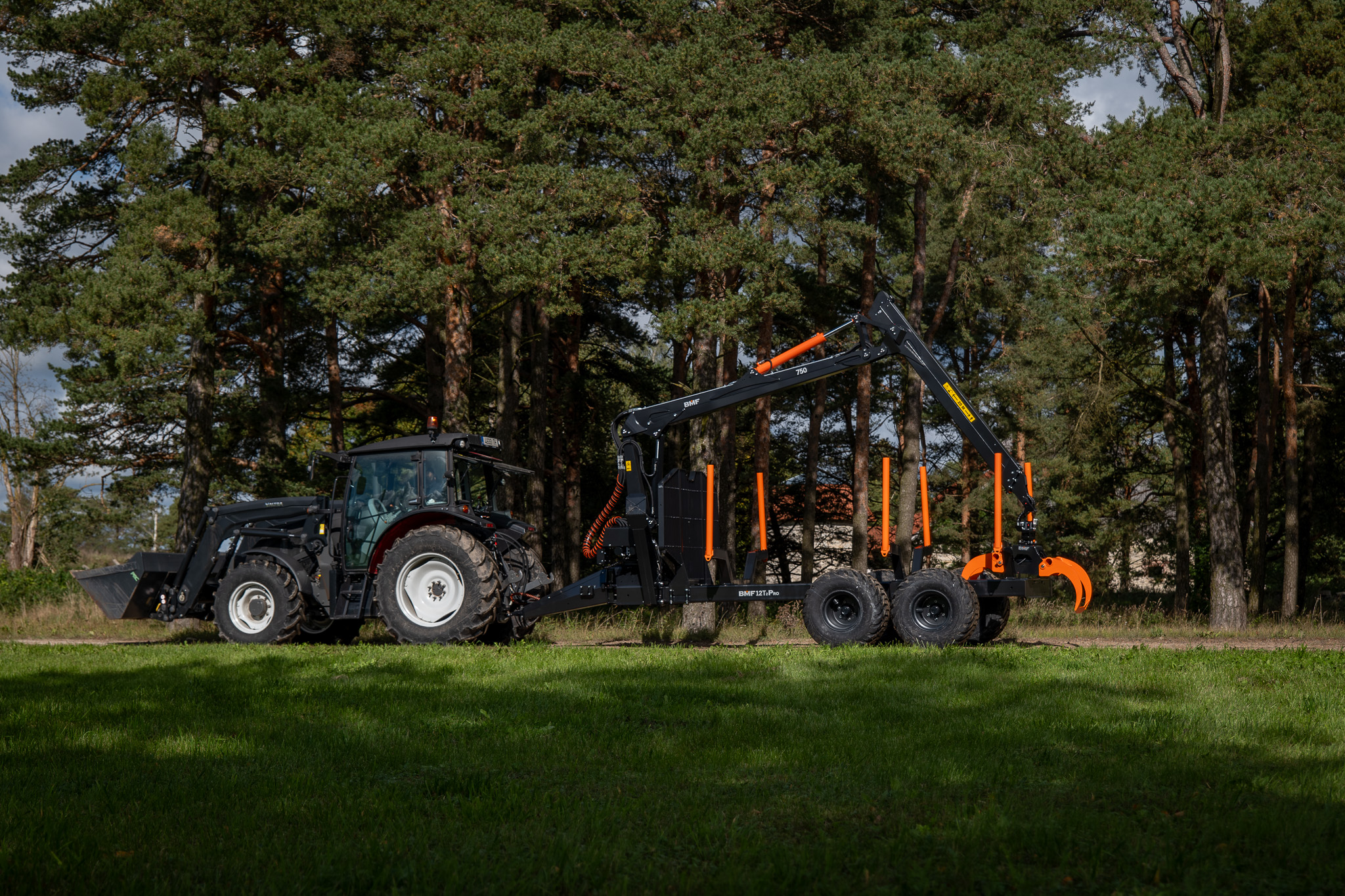

P1043332 bmf12t2pro trailer bmf750 crane 2023 small

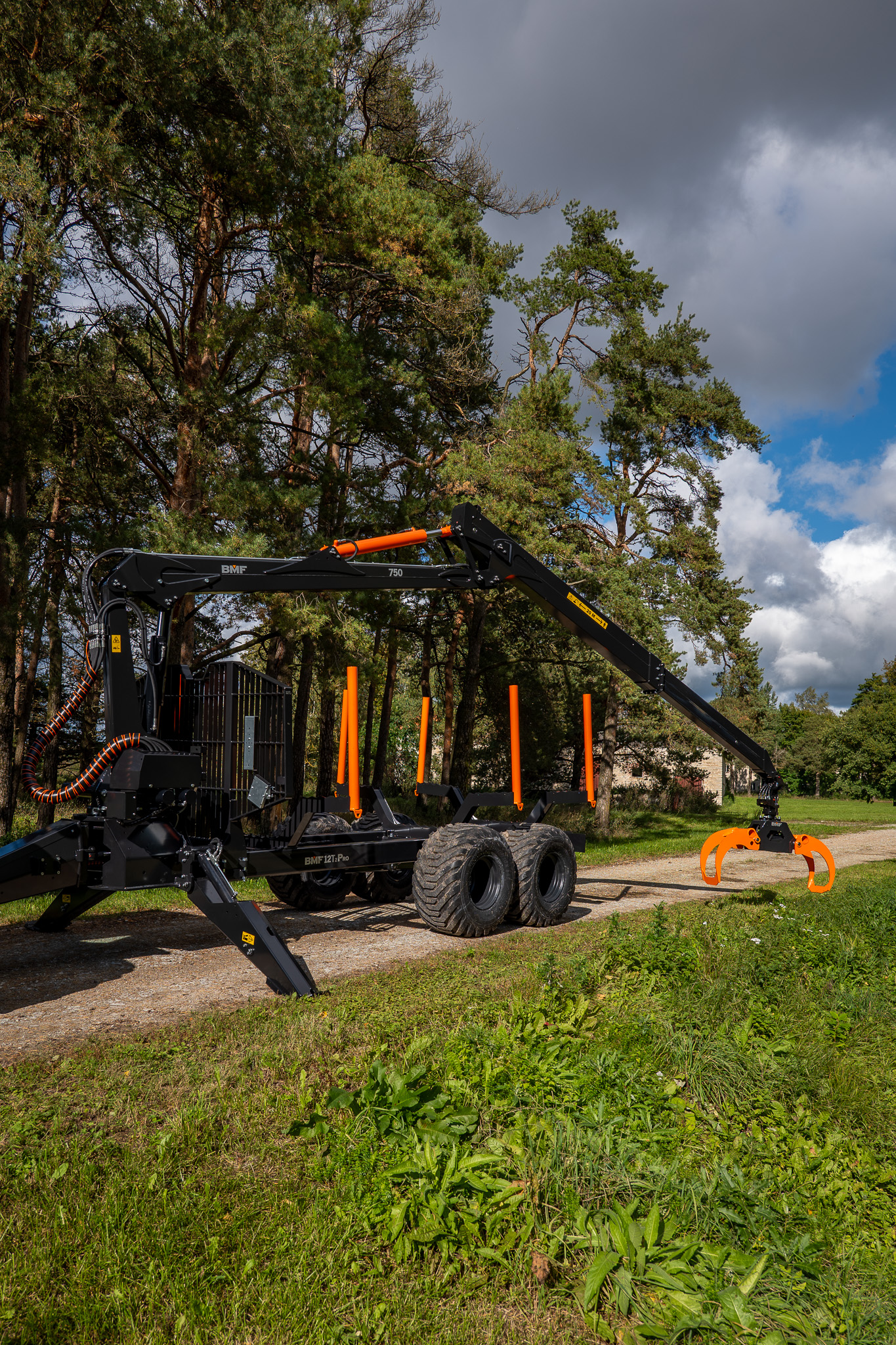

P1043310 bmf12t2pro trailer bmf750 crane 2023 small

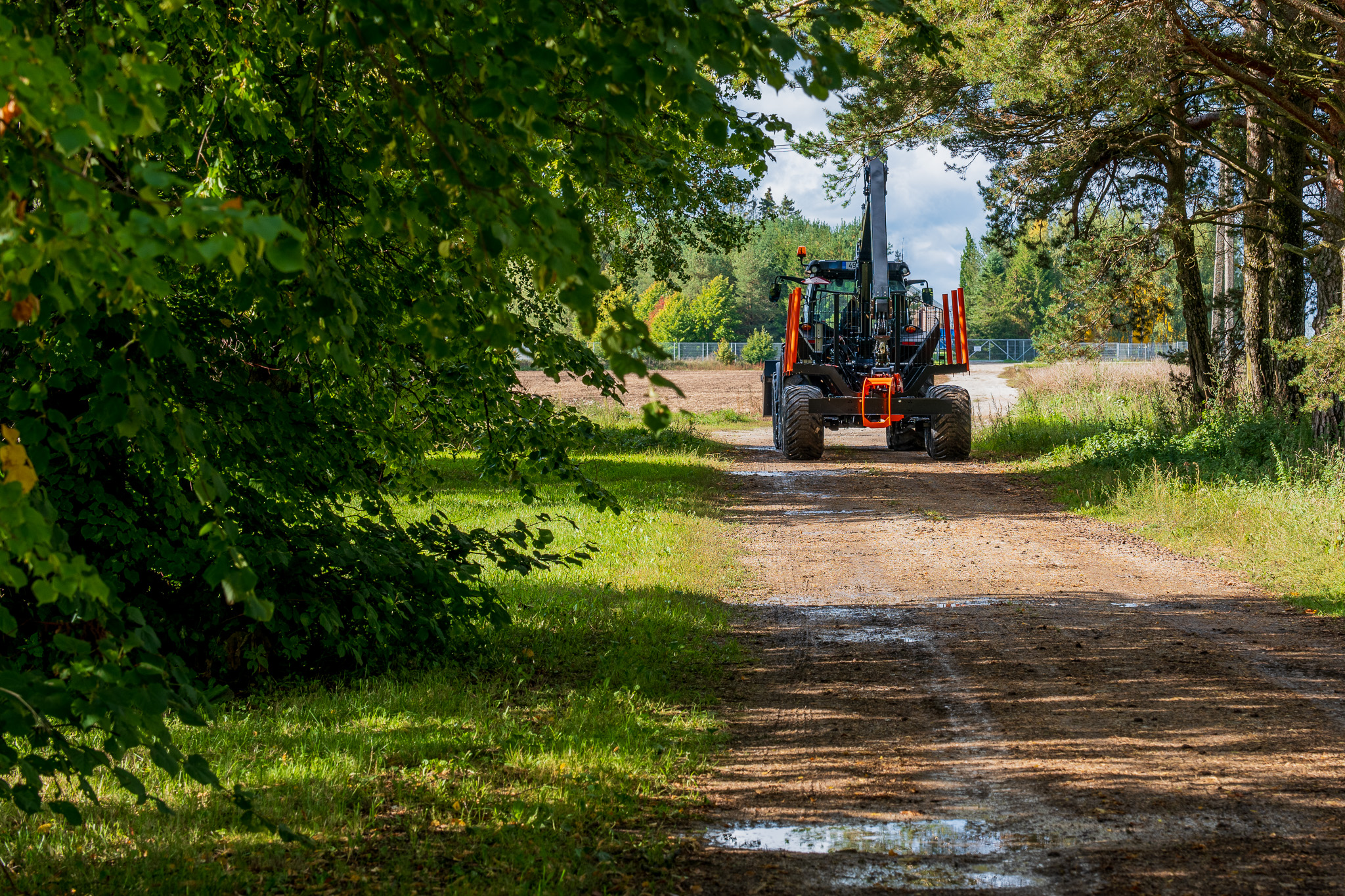

P1043345 bmf12t2pro trailer bmf750 crane 2023 small

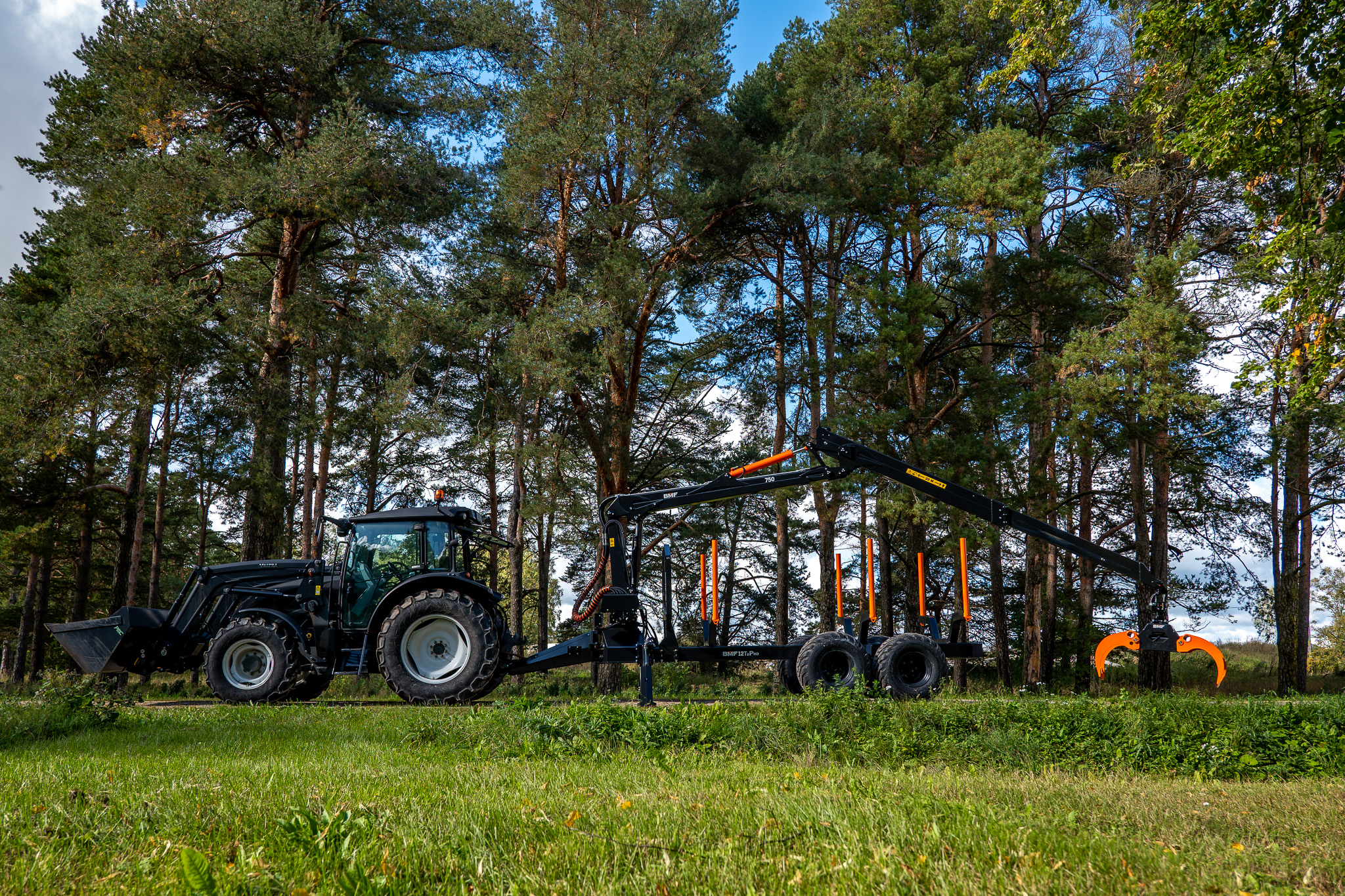

P1043298 bmf12t2pro trailer bmf750 crane 2023 small

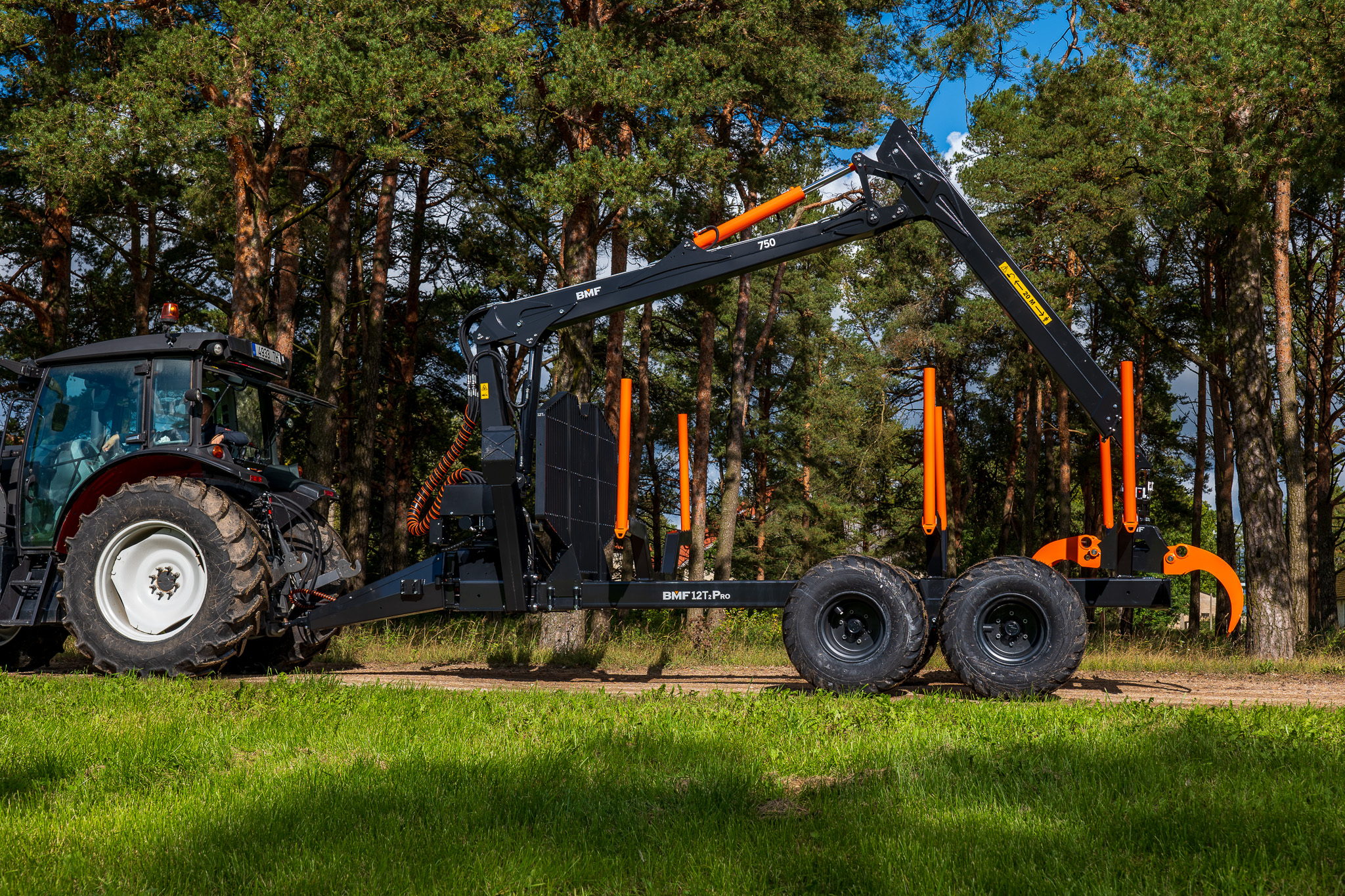

P1043319 bmf12t2pro trailer bmf750 crane 2023 small

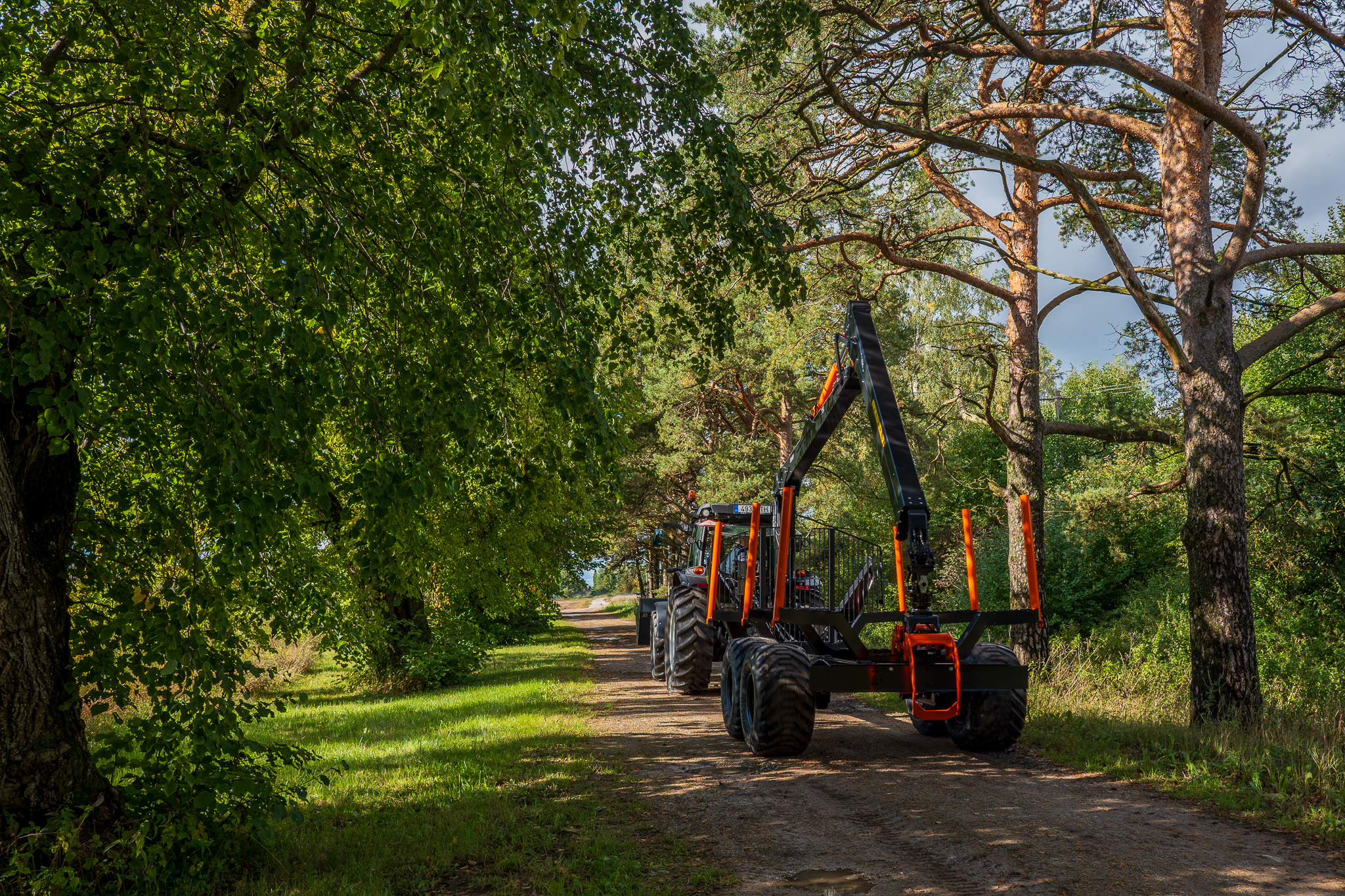

P1043334 bmf12t2pro trailer bmf750 crane 2023 small

P1043309 bmf12t2pro trailer bmf750 crane 2023 small

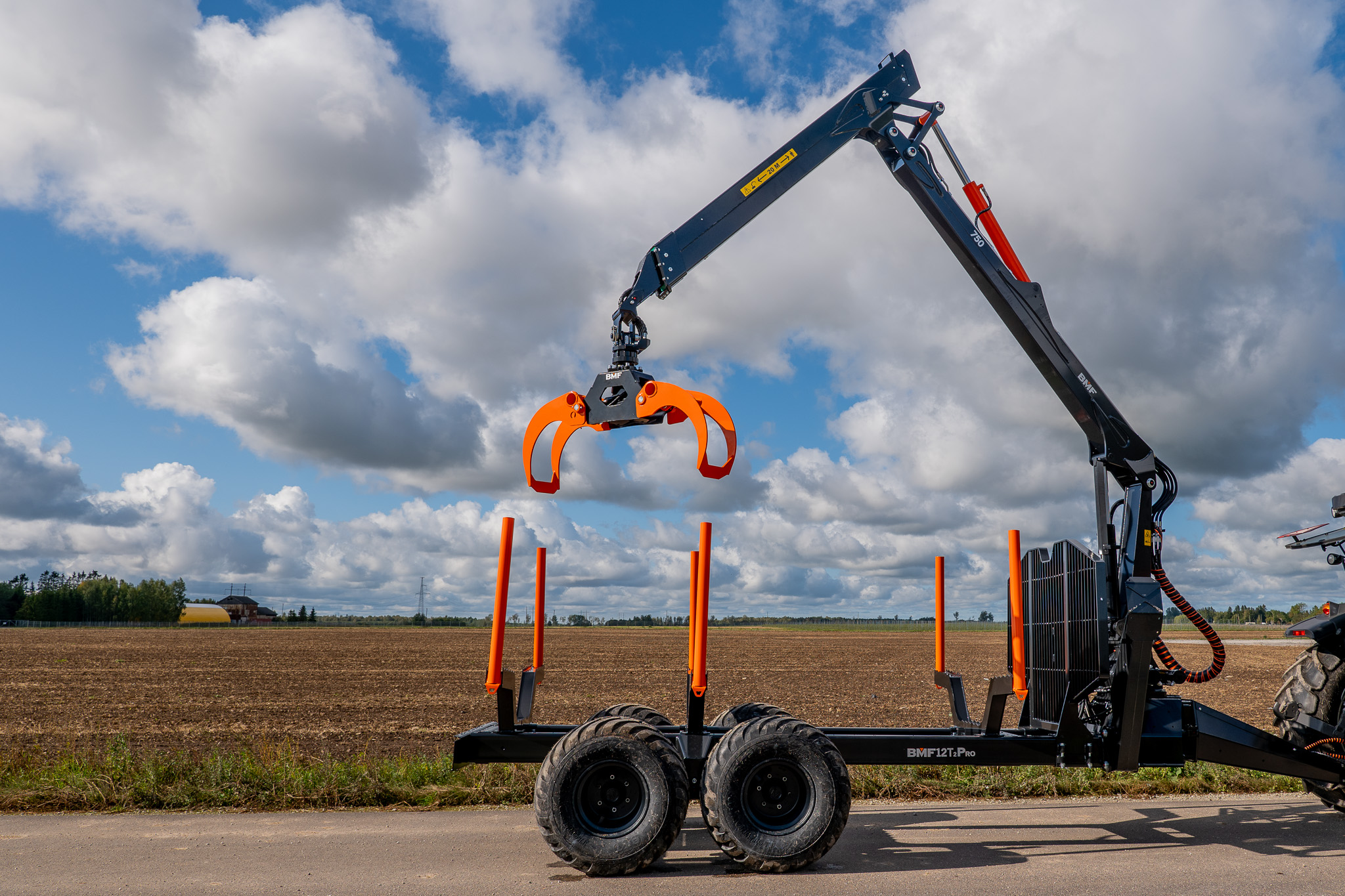

P1043375 bmf12t2pro trailer bmf750 crane 2023 small
