BMF635Z
BMF background
Z Cranes

BMF635Z

Compact Z-crane with 6.35 m reach and folding construction for efficient timber loading.

Ask for an offer

BMF635Z is a compact forestry Z-crane with 6.35 m reach, built for timber loading, log handling and demanding forestry work. Its folding Z-construction allows the crane to fold into a compact transport position, making it practical for everyday forest work.

The crane combines protected hydraulics and durable boom construction for reliable performance in timber handling. BMF635Z can be combined with BMF crane accessories such as control options, rotators and work lights.


Technical details

BMF635Z
Maximum reach
6,35 m
Lifting torque
73 kNm, gross
Lifting power at 4 m w/o grapple and rotator
815 kg
Lifting power at full reach w/o grapple and rotator
600 kg
Grapple
0,2 / 0,24 m²
Rotator
3 / 4 t
Slewing torque,
11 kNm
Slewing cylinders
4 pcs
Boom rotation
360 °
Working pressure
190 bar
Hydr. pump capacity
30-60 l/min
Telescope
+
Total weight without leg, grapple, rotator
60
* Technical data is subject to change without prior notice.

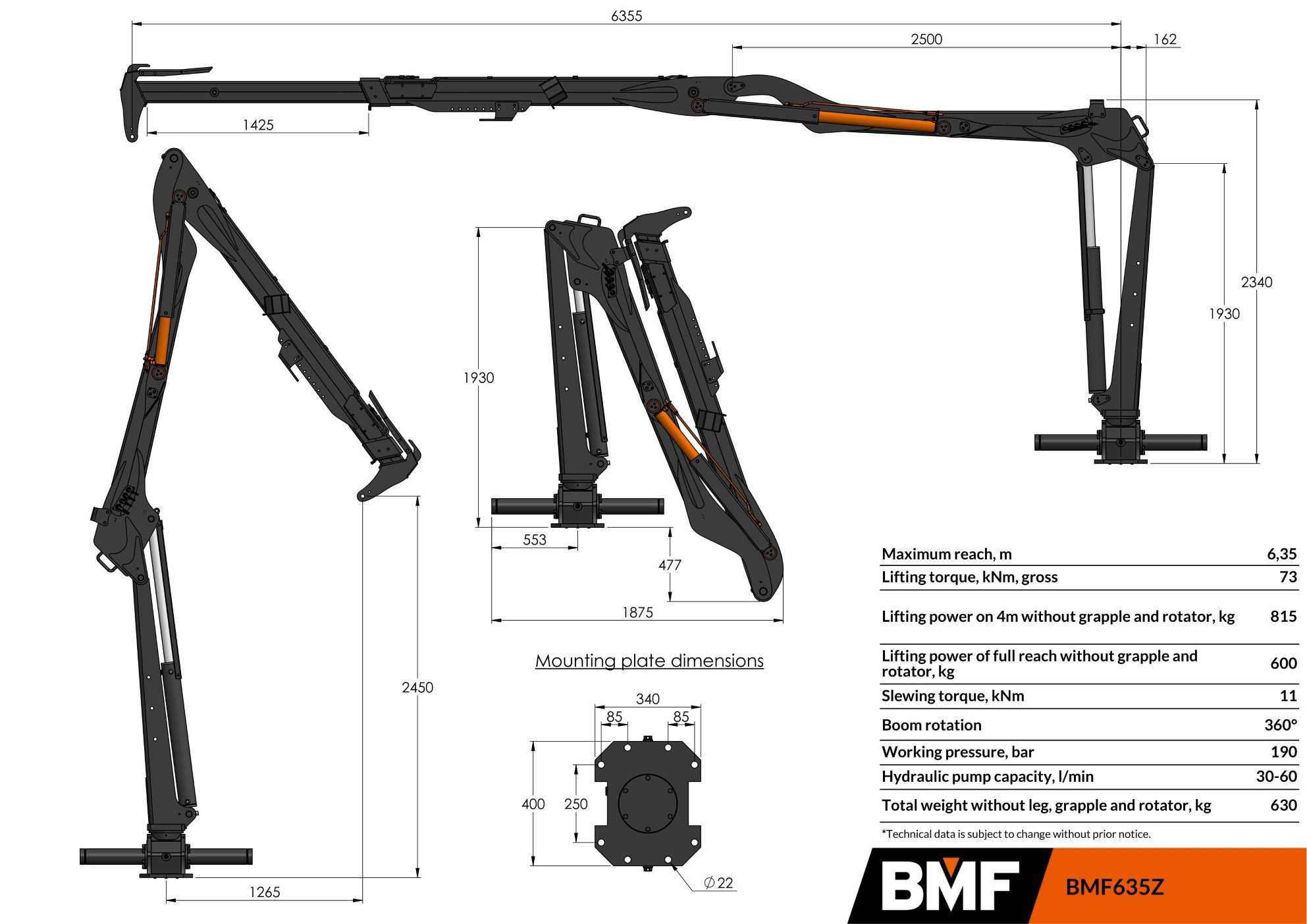

Measurements

BMF635Z

Key advantages

Hidden hydraulic hoses
All the boom tubes of BMF cranes are metal and professional cranes have hidden hydraulic hoses that are safely protected inside the boom system.
My Inner Strenx©
The booms of BMF cranes are made of especially tough steel from Swedish provider SSAB and bear the mark of quality: My Inner Strenx®. Thanks to superior Strenx® steel that is thinner, yet stronger, BMF is able to provide cranes that are lighter in weight and have better durability.
Hardox® In My Body
The grapples of BMF cranes are made of Hardox® wear plate that is provided by SSAB and guarantees high durability, lighter weight and longer life-span.
Tough turning house
BMF cranes have thoroughly tested turning houses that are especially rigid and tough.
Accessible greasing points
All greasing points of BMF products are easily accessible to make maintenance quick and convenient.
BMF background

BMF635Z

Compact Z-crane with 6.35 m reach and folding construction for efficient timber loading.

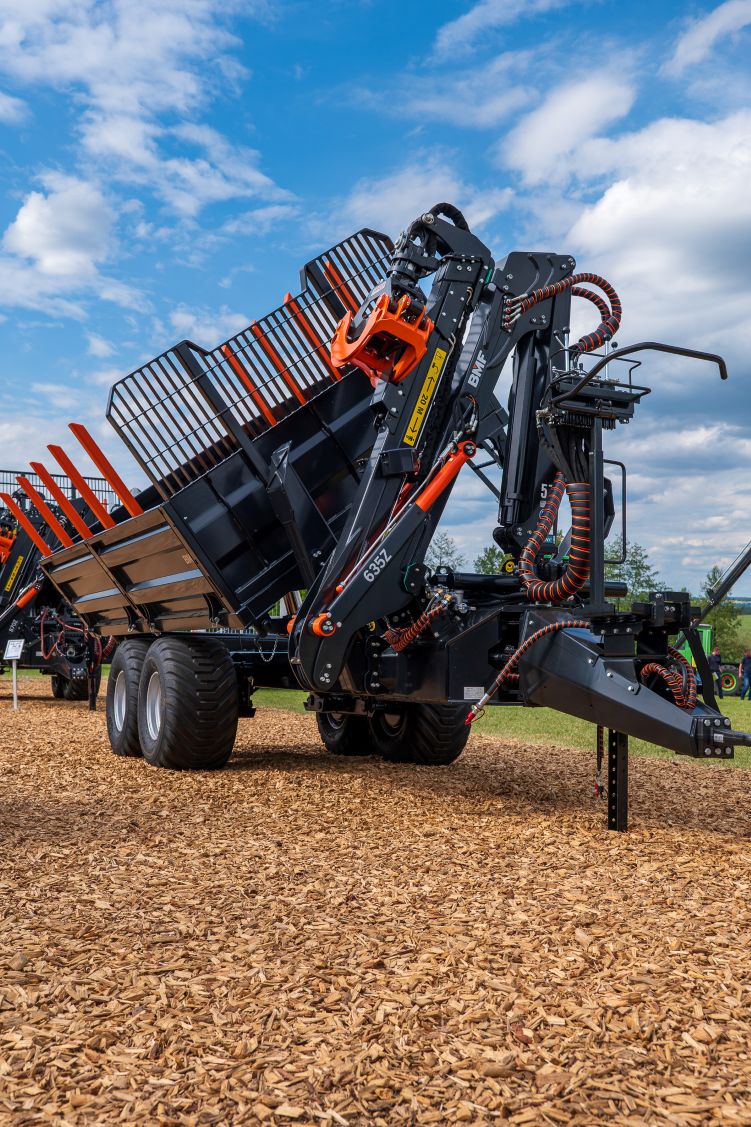

Bmf635z log lift bmf10t2 trailer tipper (2)
Bmf635z log lift bmf10t2 trailer tipper (3)

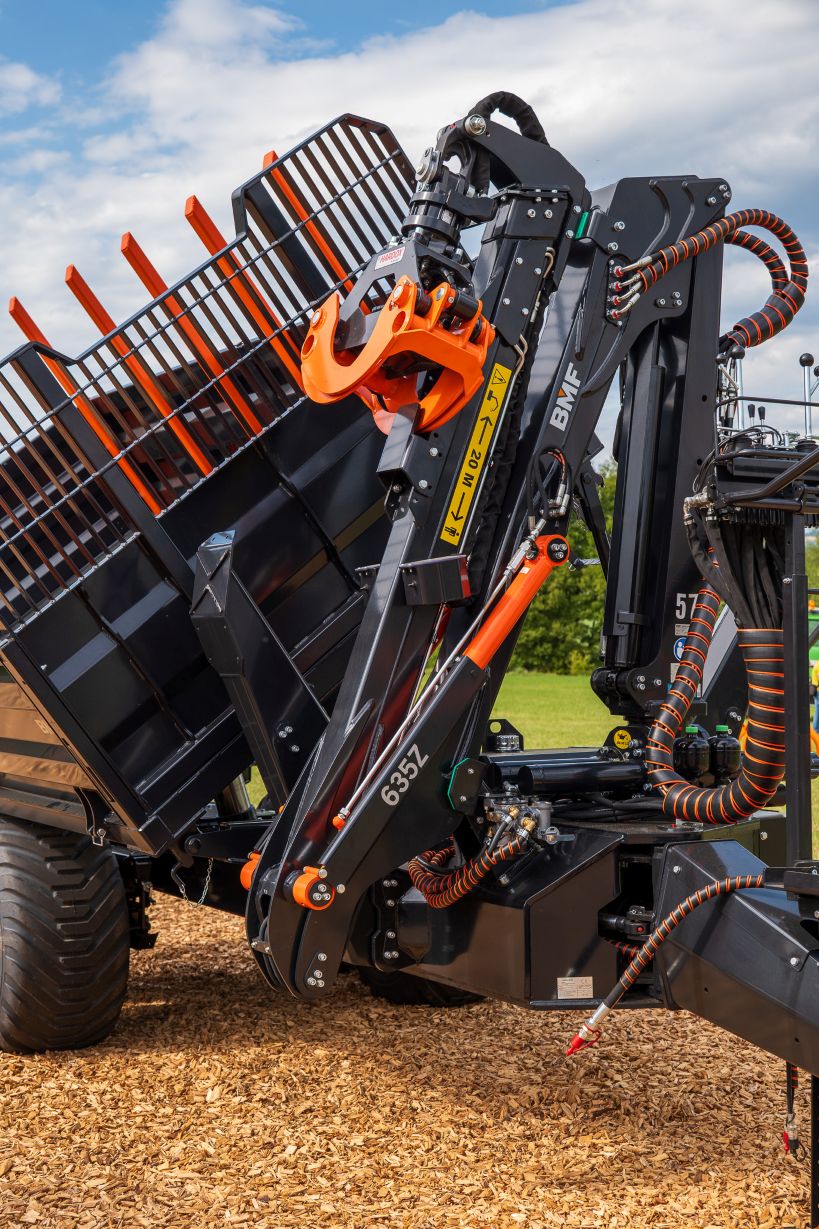

Bmf635z log lift bmf10t2 trailer tipper (1)

Compatible accessories

Rotators
Rotators
Valves and Joysticks
Valves and Joysticks
Lights for Cranes
Lights for Cranes
Seats
Seats
Hultdins Crane Damper
Hultdins Crane Damper

Compatible machines

Trailers BMF635Z
BMF8T2
BMF10T2
