BMF18T1

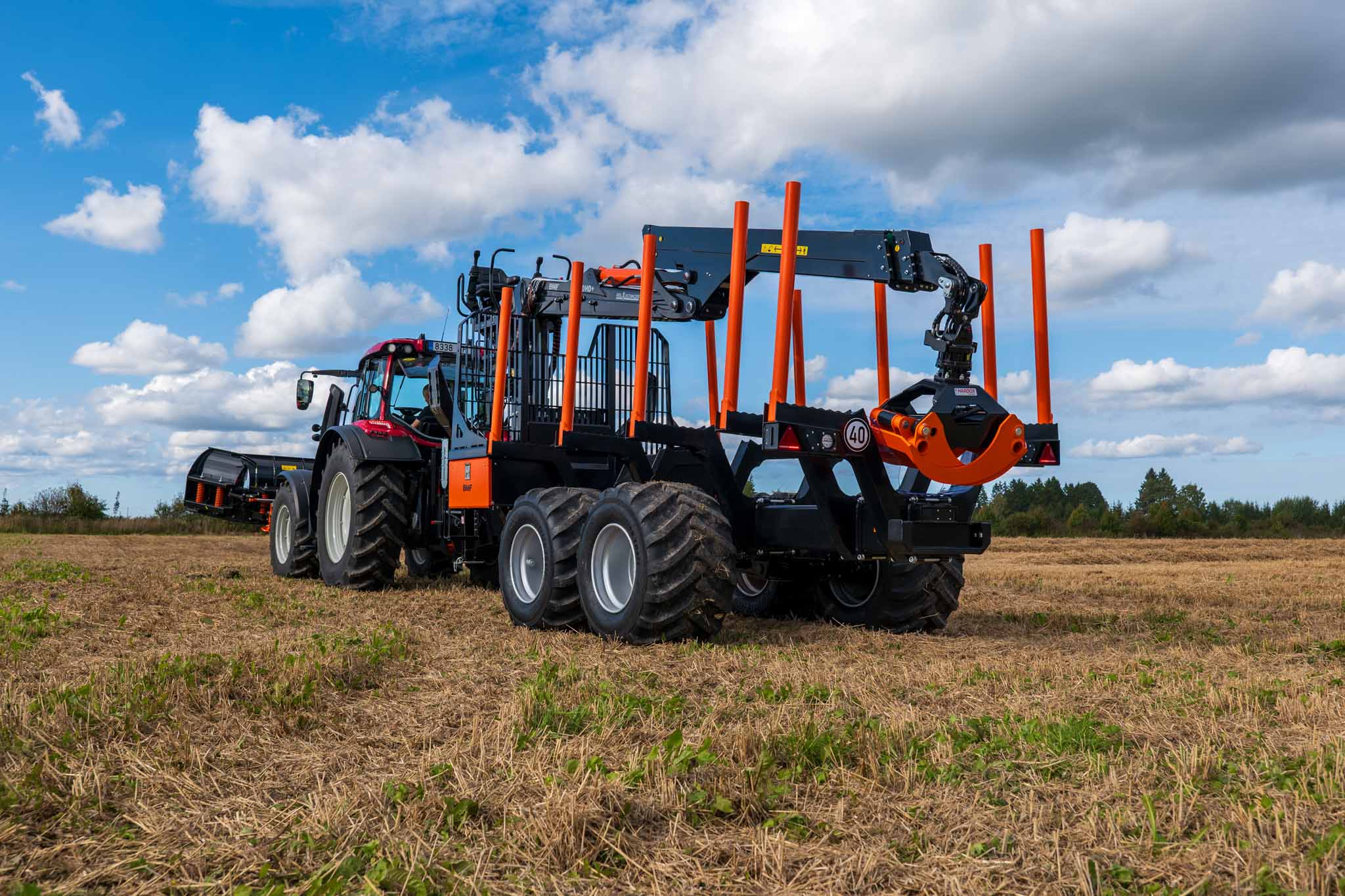

Sturdy one-beam trailer with up to 18t payload

BMF18T1 is the largest and most powerful model in BMF trailer range. The loading capacity of this flagship model is 18 t and loading area covers 3.5-4m2, allowing to transport logs from on location to another quickly, effortlessly and in large quantities. This forestry machine is the choice of demanding professional users.

Ask for an offer

Technical details

BMF18T1

Loading capacity

18000 kg

Total length

8240 mm

Length of loading area

5475 mm

Total width with standard wheels

2520 mm

Wheels

600/50/22,5

Chassis

300x300x10 mm

Axels

90X90-8

Loading area

3,5-4,0 m²

Drawbar cylinders

2 pcs

Drawbar angle to sides

30 ± °

Clearence

725 mm

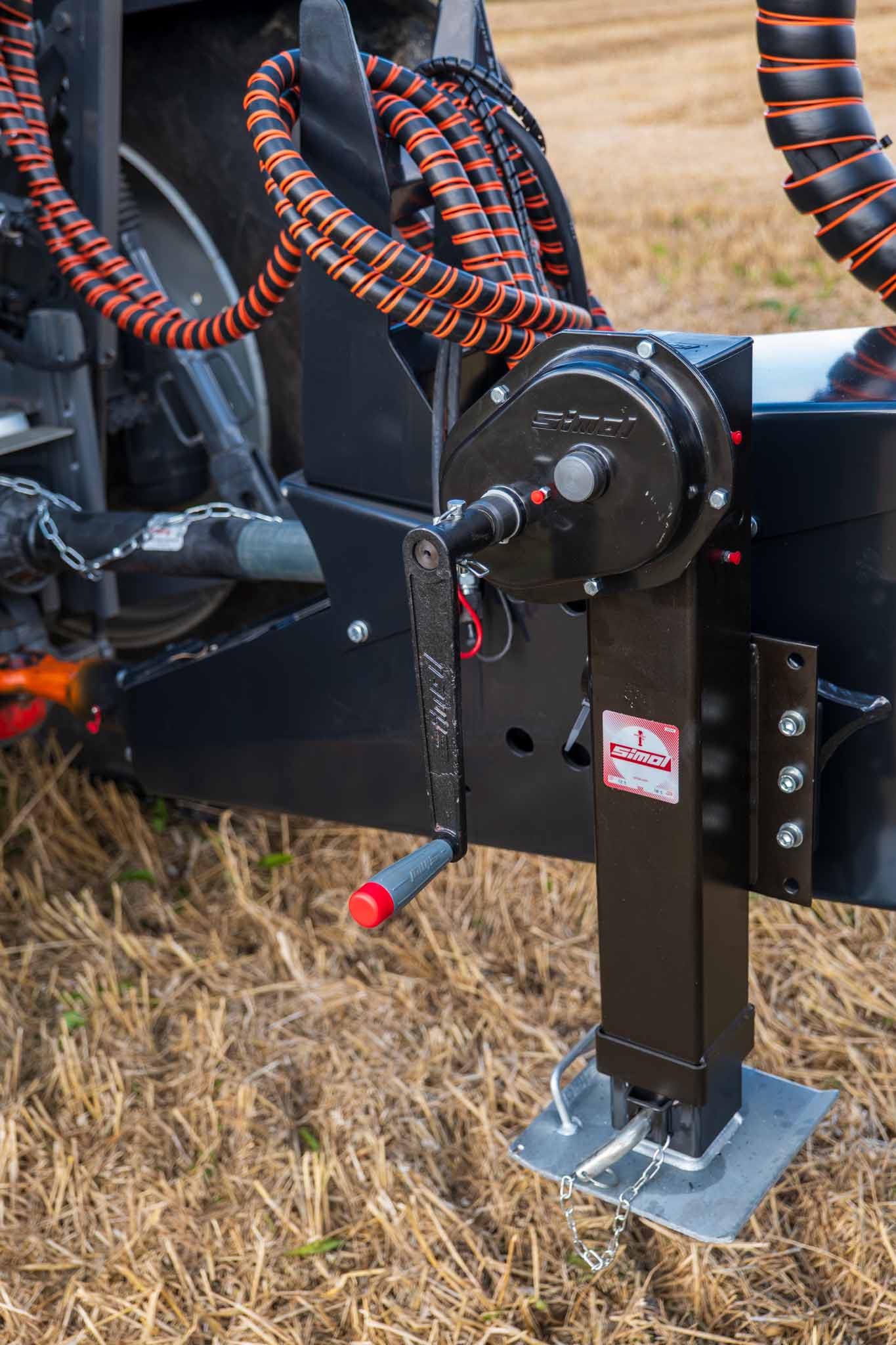

Support leg

Height

2870 mm

Extension

850 mm

* Technical data is subject to change without prior notice.

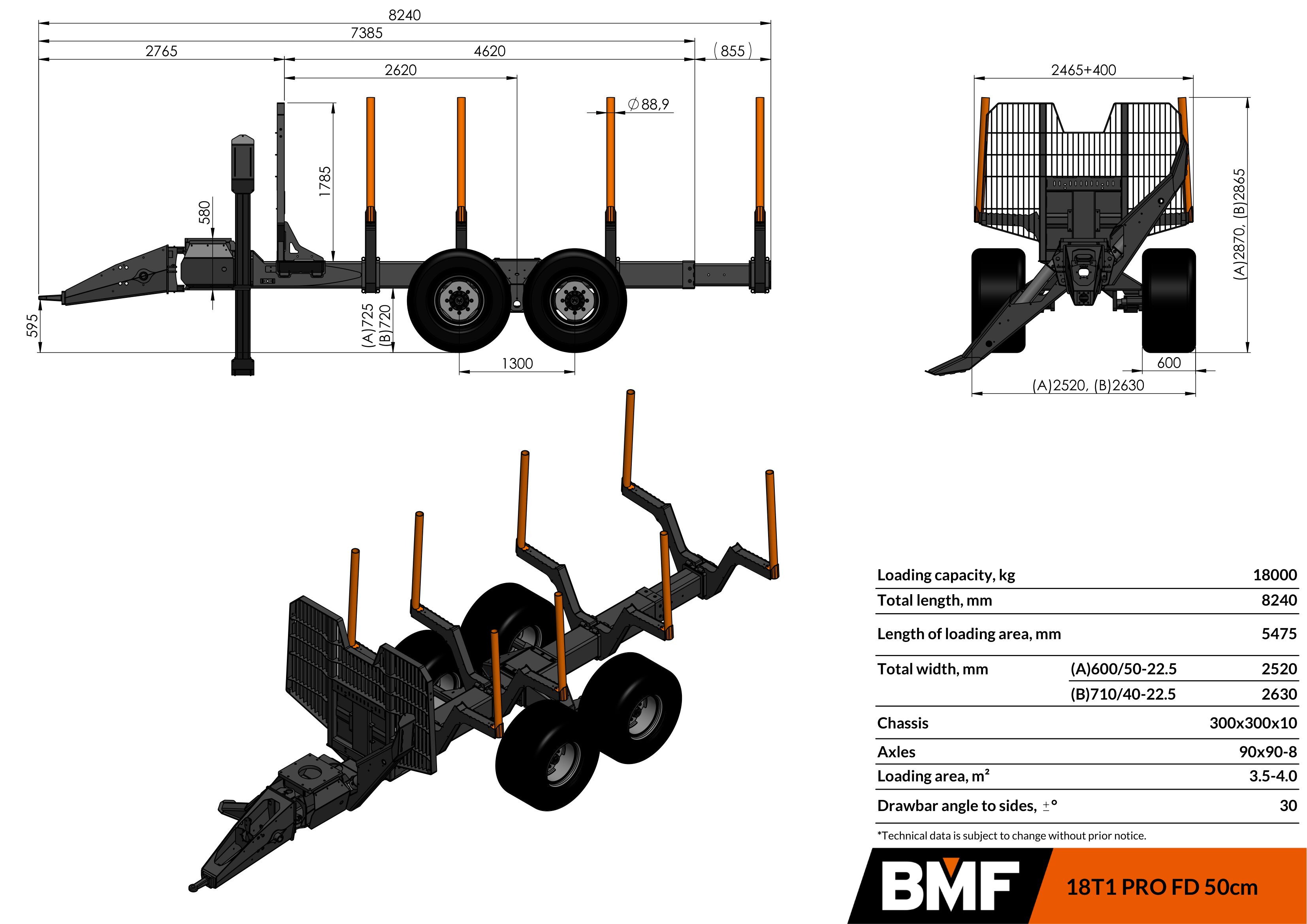

Measurements

Configuration options

Bolster options

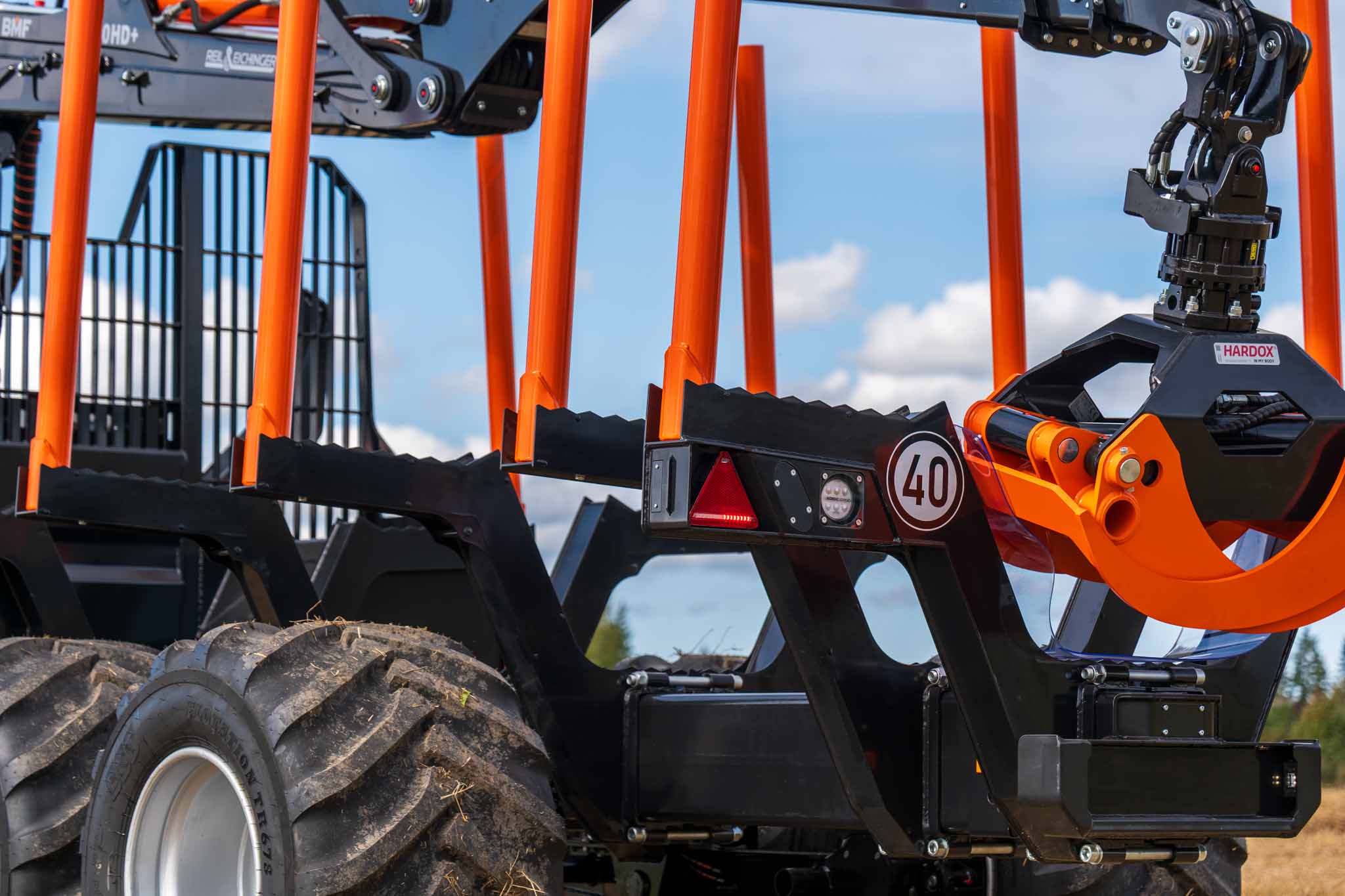

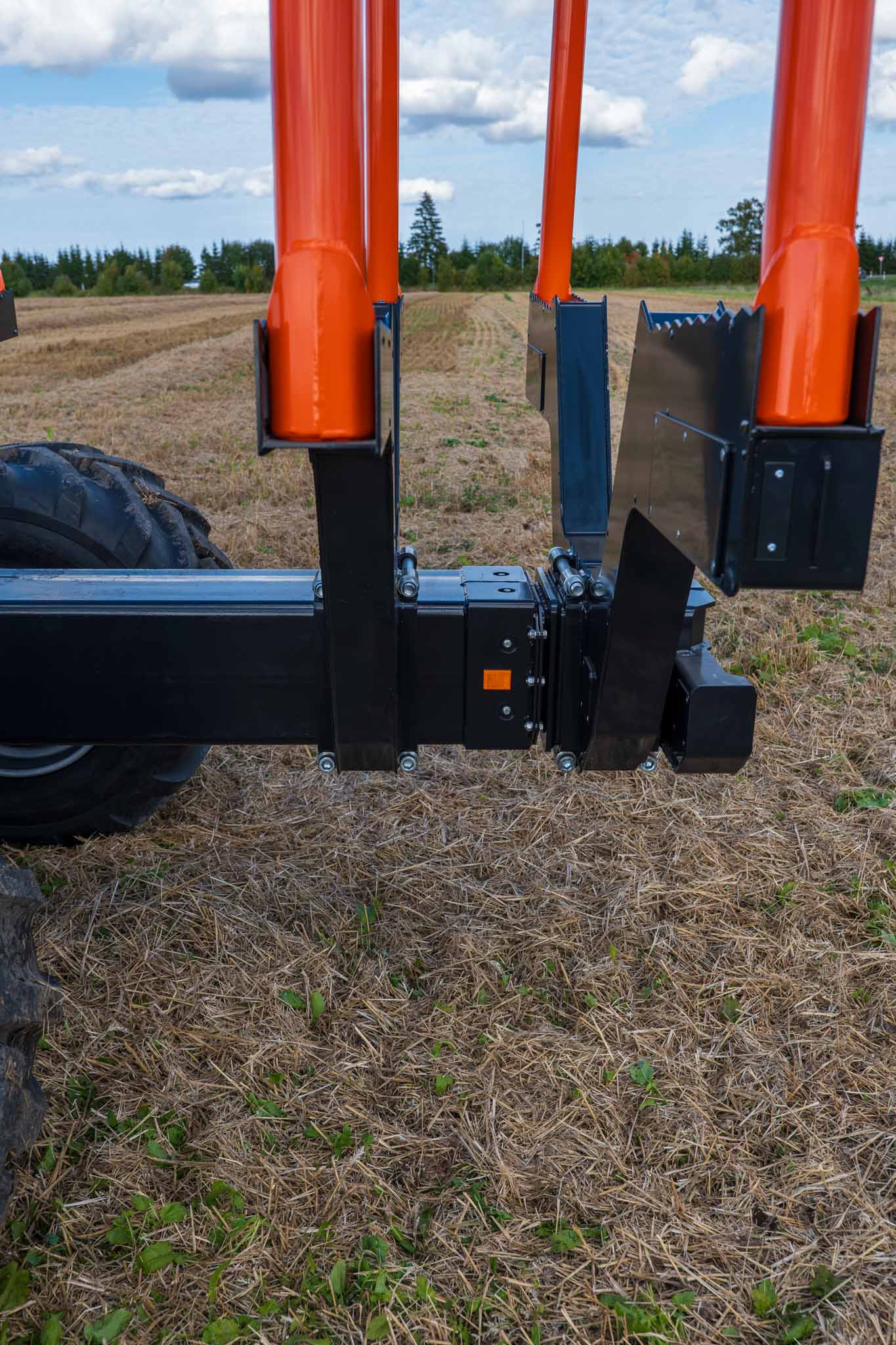

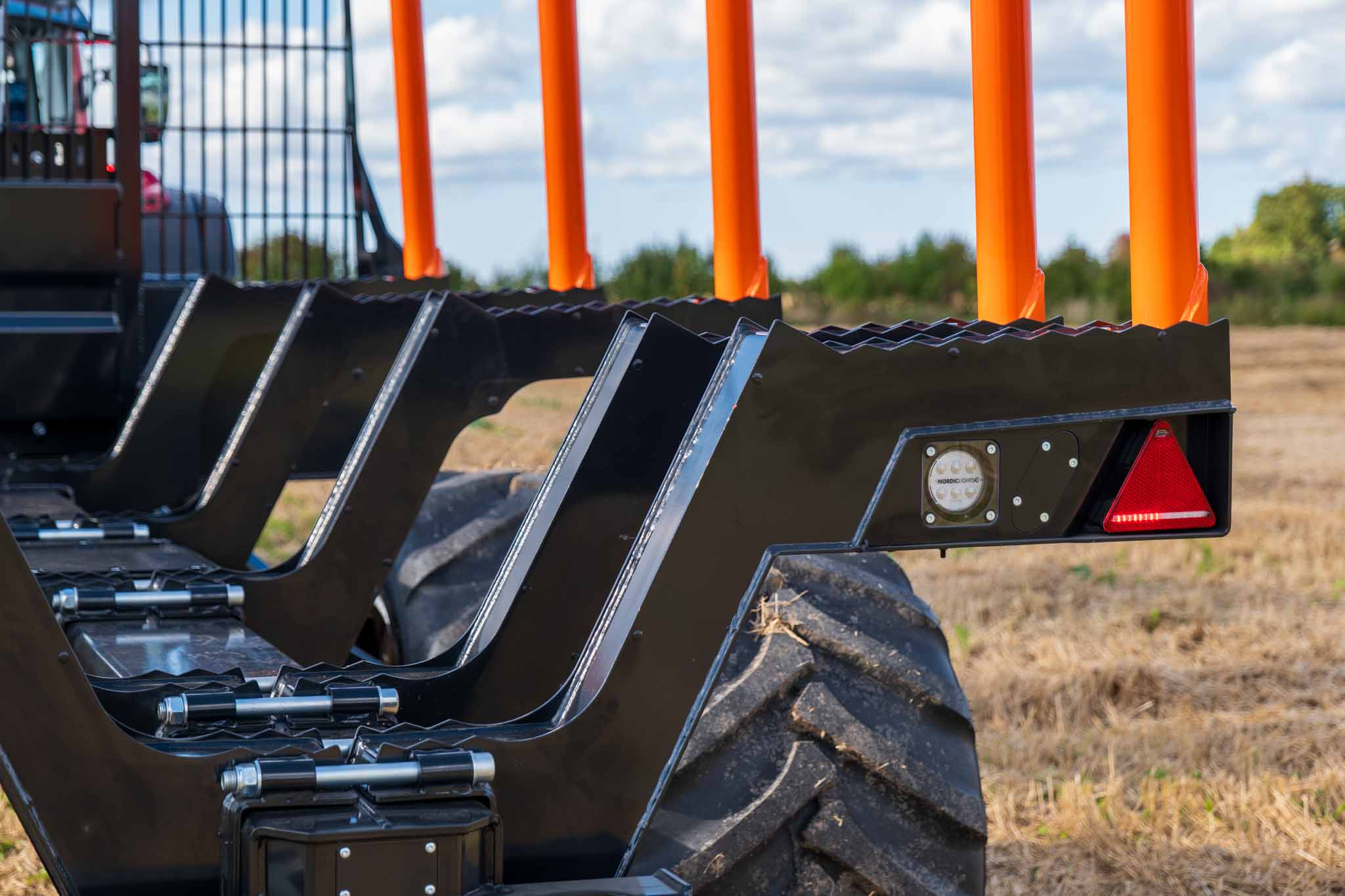

Pro Bolsters

Enjoy flexibility with movable and extendable bolsters. Adjust the bolster positions along the trailer beam and expand the load area by pulling the poles outward. Toothed edges help keep logs securely in place. For added versatility, you can install plates between the PRO bolsters for transporting branches or as extra protection.

Drawbar options

Drawbar 80 cm

BMF trailers feature a robust hydraulic steering drawbar with a protected design that keeps the oil pump and hoses safely hidden inside. The drawbar can be mechanically locked for stable road transport and is available in 80 cm height, with multiple hitch options including K80.

Drawbar 50 cm

BMF trailers feature a robust hydraulic steering drawbar with a protected design that keeps the oil pump and hoses safely hidden inside. The drawbar can be mechanically locked for stable road transport and is available in 50 cm height, with multiple hitch options including K80.

Front Screen options

Toolbox version

Extra-robust, forwarder-style safety screen with integrated toolboxes on both sides—ideal for storing essential parts and tools securely on the trailer and keeping the work area tidy for better visibility. Available only with PRO bolsters. Reinforcement bar (fits between the grid and first stanchions), available as an optional accessory.

Standard

Robust safety screen that protects the tractor and crane area from shifting logs and debris during transport and loading. Fully compliant with EU requirements for safe road and forestry use. Reinforcement bar (fits between the grid and first stanchions), available as an optional accessory.

Support legs

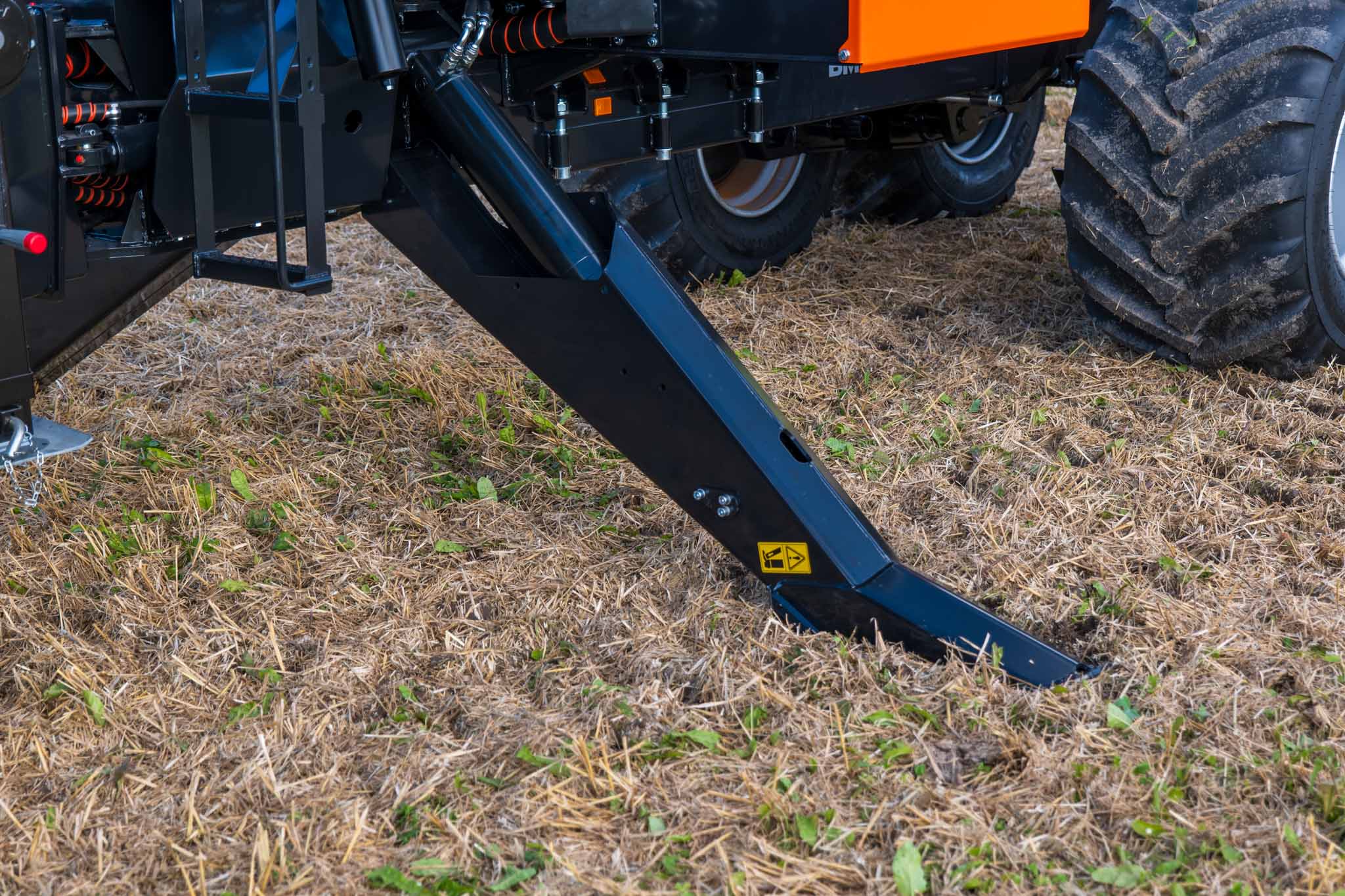

Flap Down (FD) Legs

Hydraulically operated flap-down legs that open wide for a broad support stance and maximum steadiness during loading—best when you have enough side space to deploy them.

Key advantages

Protected cylinders

The hydraulic cylinders are securely hidden inside the robust support legs of BMF trailers.

Stability

Cranes are positioned lower on BMF trailers to reduce the centre of gravity, and on most models the support legs are mounted directly to the trailer frame. Wide wheel spacing and balancing beams help the trailer stay steady and move smoothly on rough terrain.

In-house manufacturing control

BMF produces metal details in-house (and many other components as well) to maintain consistent quality and durability across the machine.

Protected oil pump

BMF trailers have a robust drawbar with a unique design that protects the oil pump. The oil pump is securely hidden inside the drawbar.

Strength-analysed frame design

BMF trailer frames are engineered according to load distribution and validated through thorough strength analysis for demanding forestry work.

Robot-welded construction

High-quality robot welding and strategically positioned seams help the frame withstand rough terrain and heavy log loads over long service life.

Heavy-duty safety grilles

All BMF single- and double-beam trailers feature strong safety grilles designed for everyday protection in forest conditions.

Strenx® performance steel

BMF trailers are optimized to be strong yet lightweight, using Strenx® performance steel and SSAB-certified design and material specifications

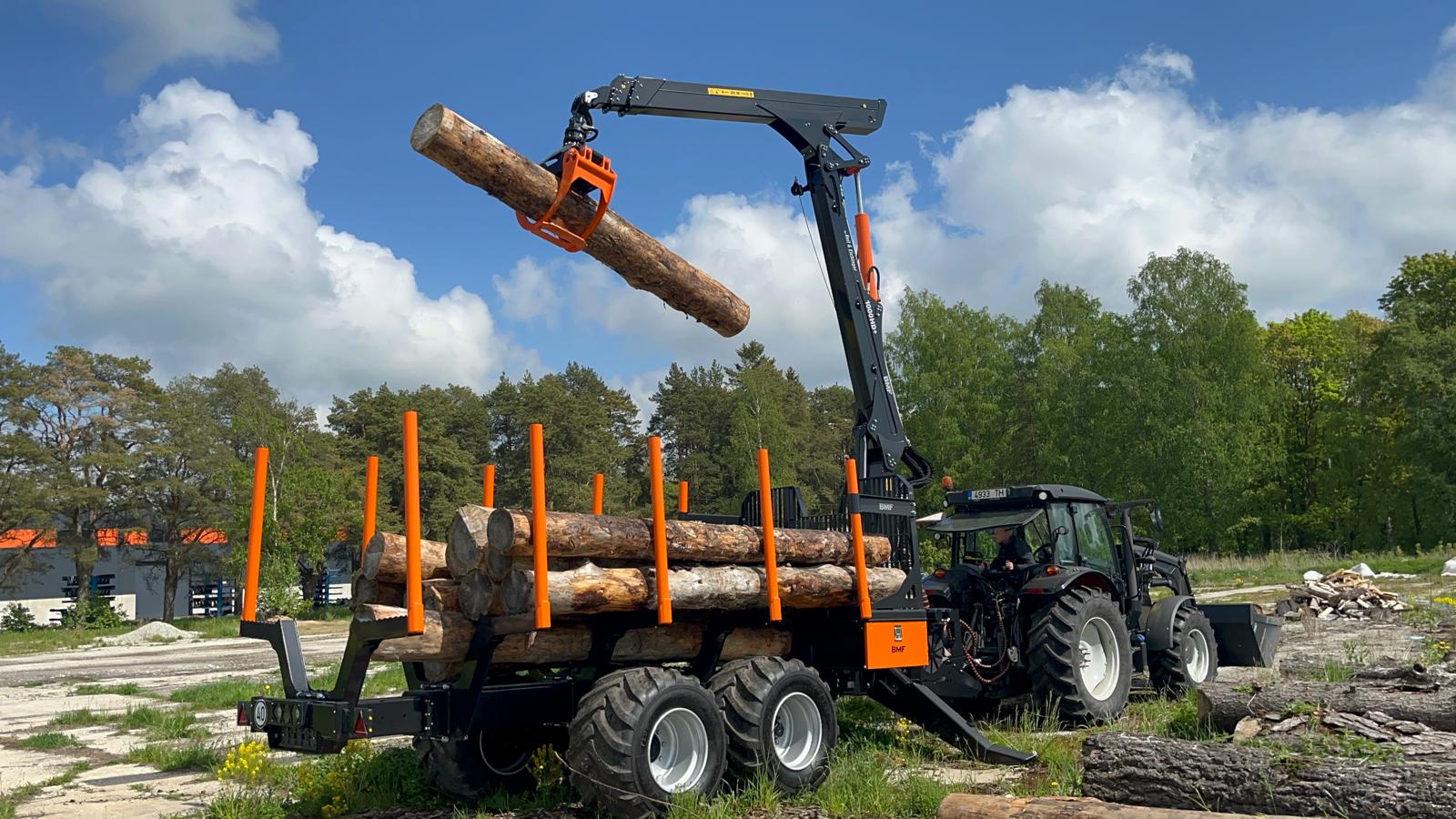

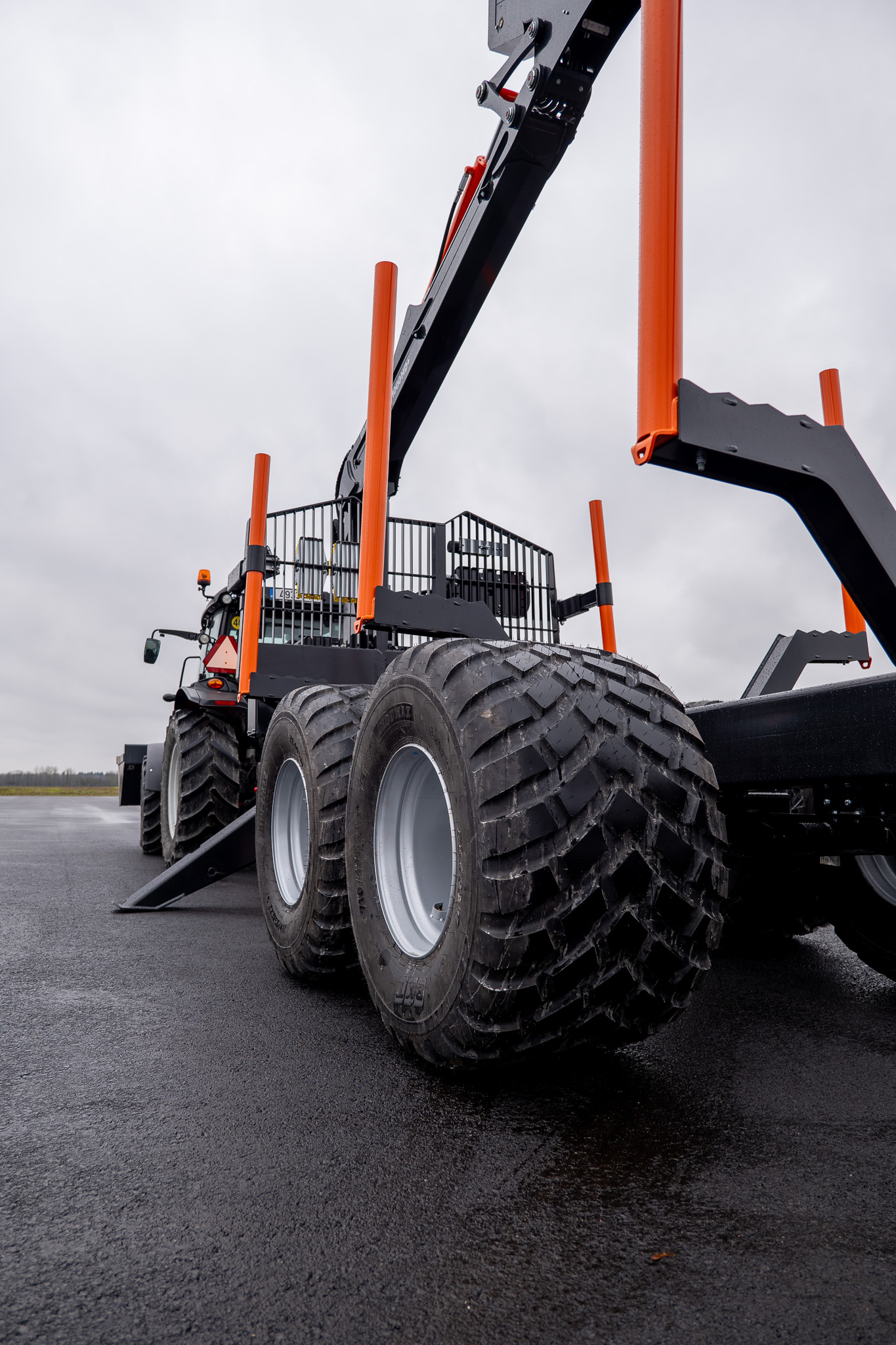

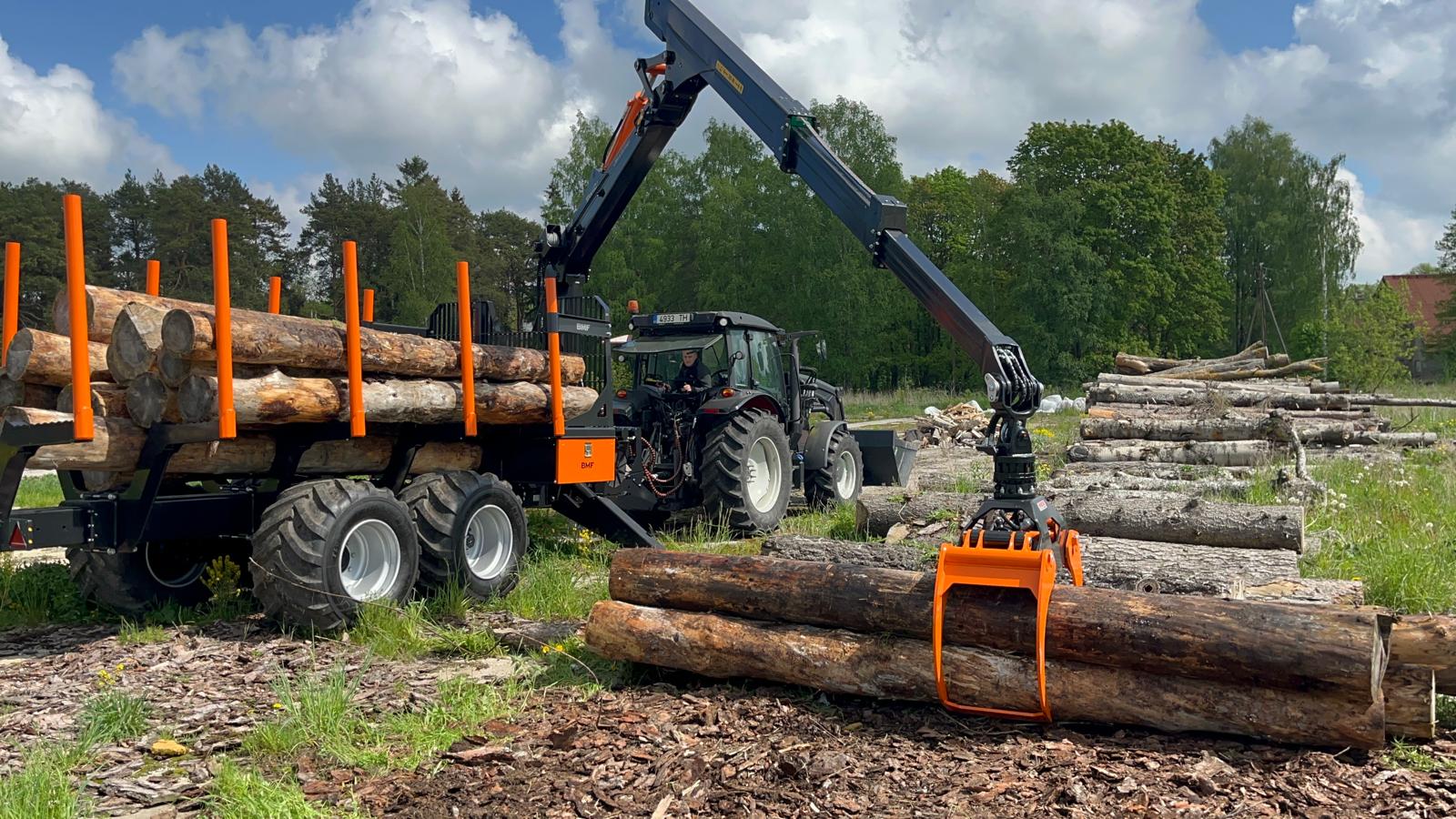

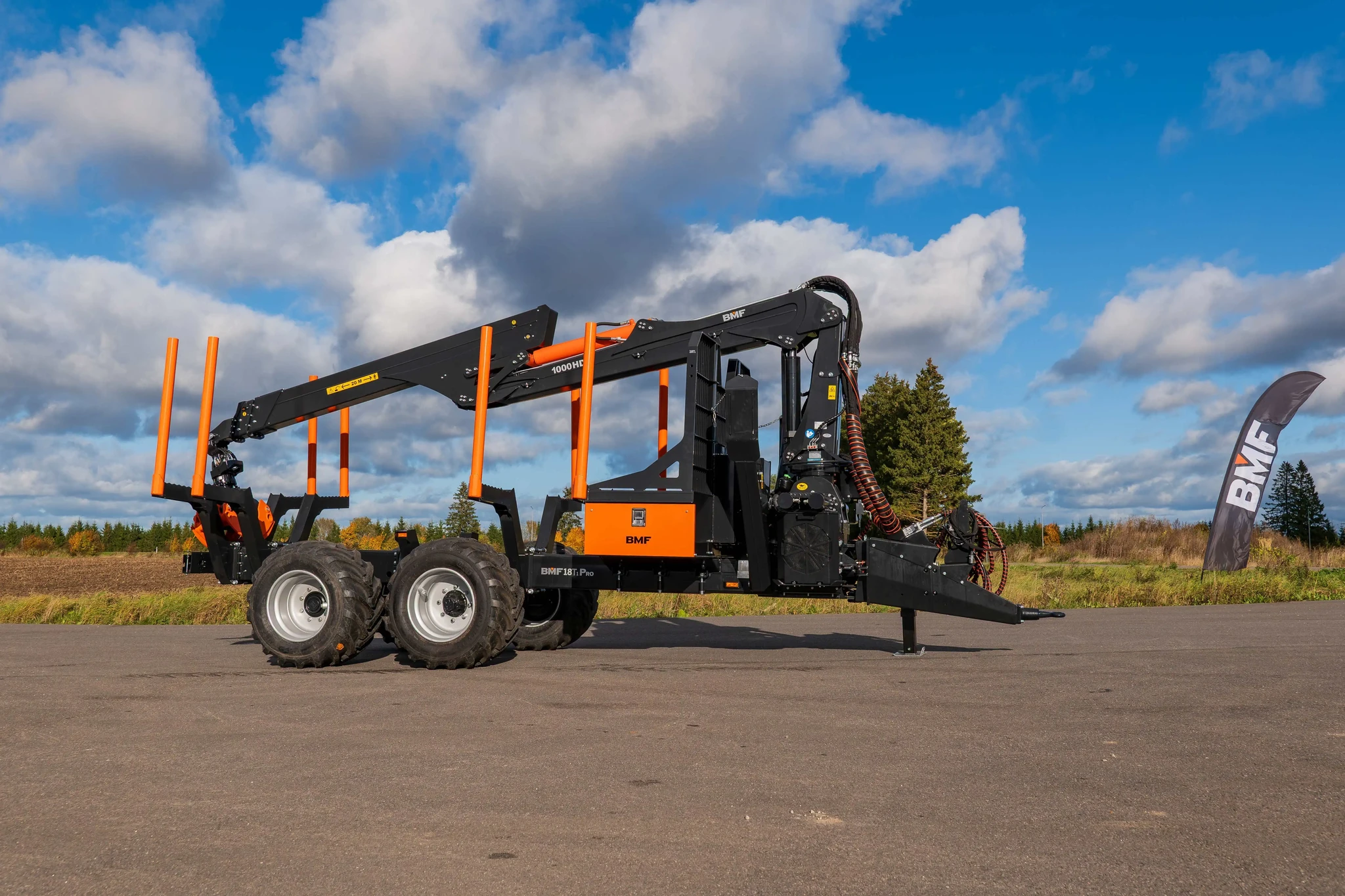

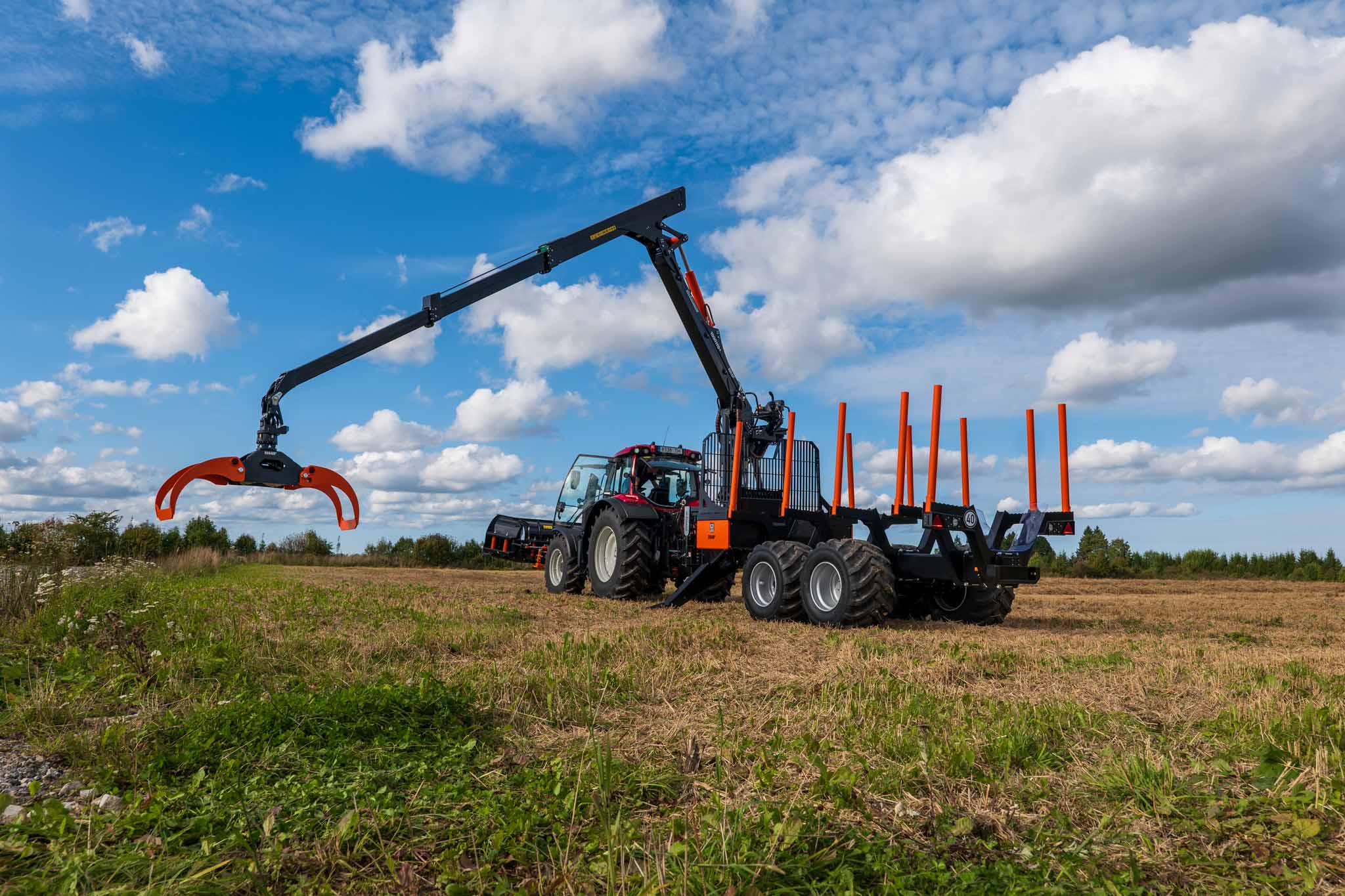

BMF18T1

Sturdy one-beam trailer with up to 18t payload

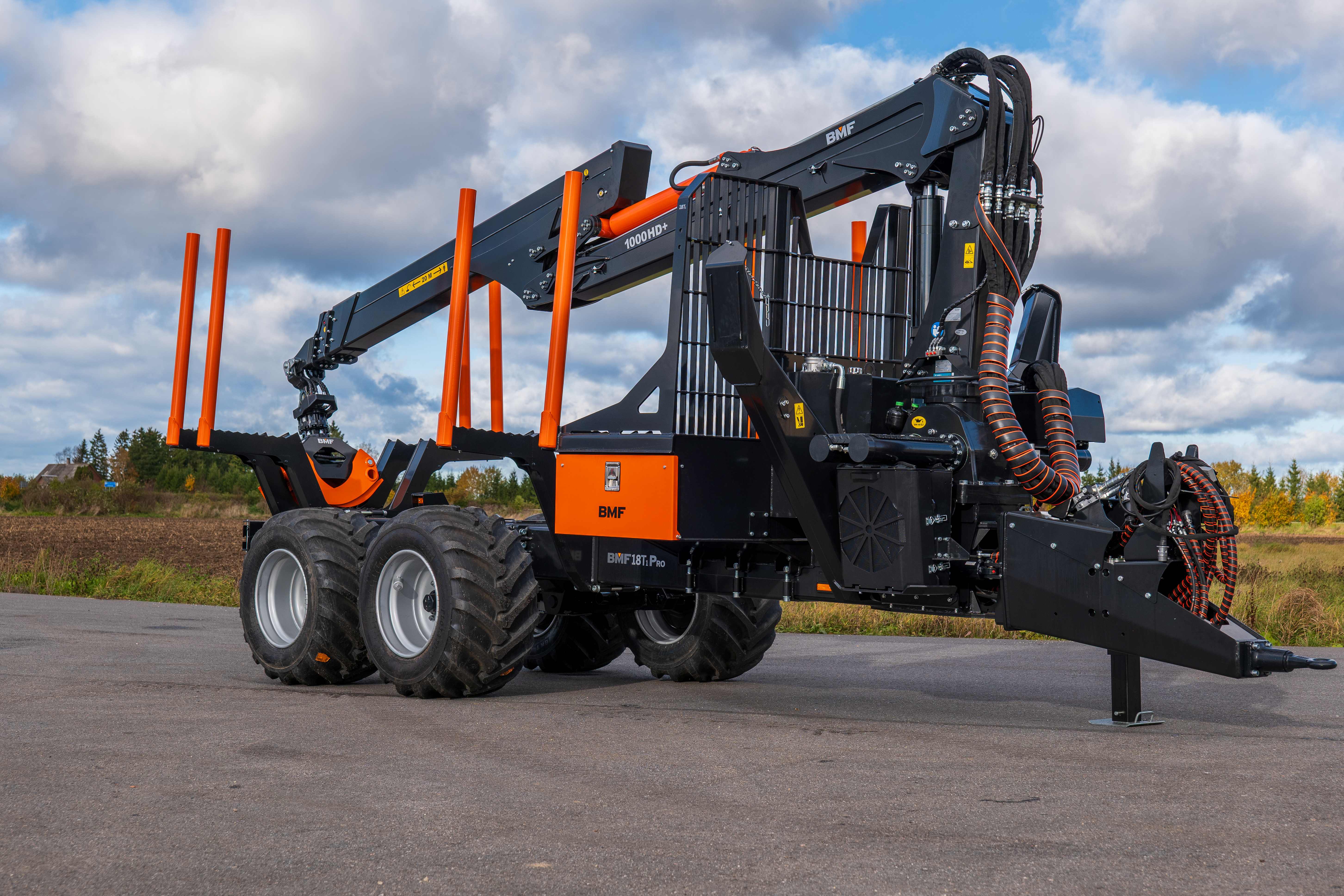

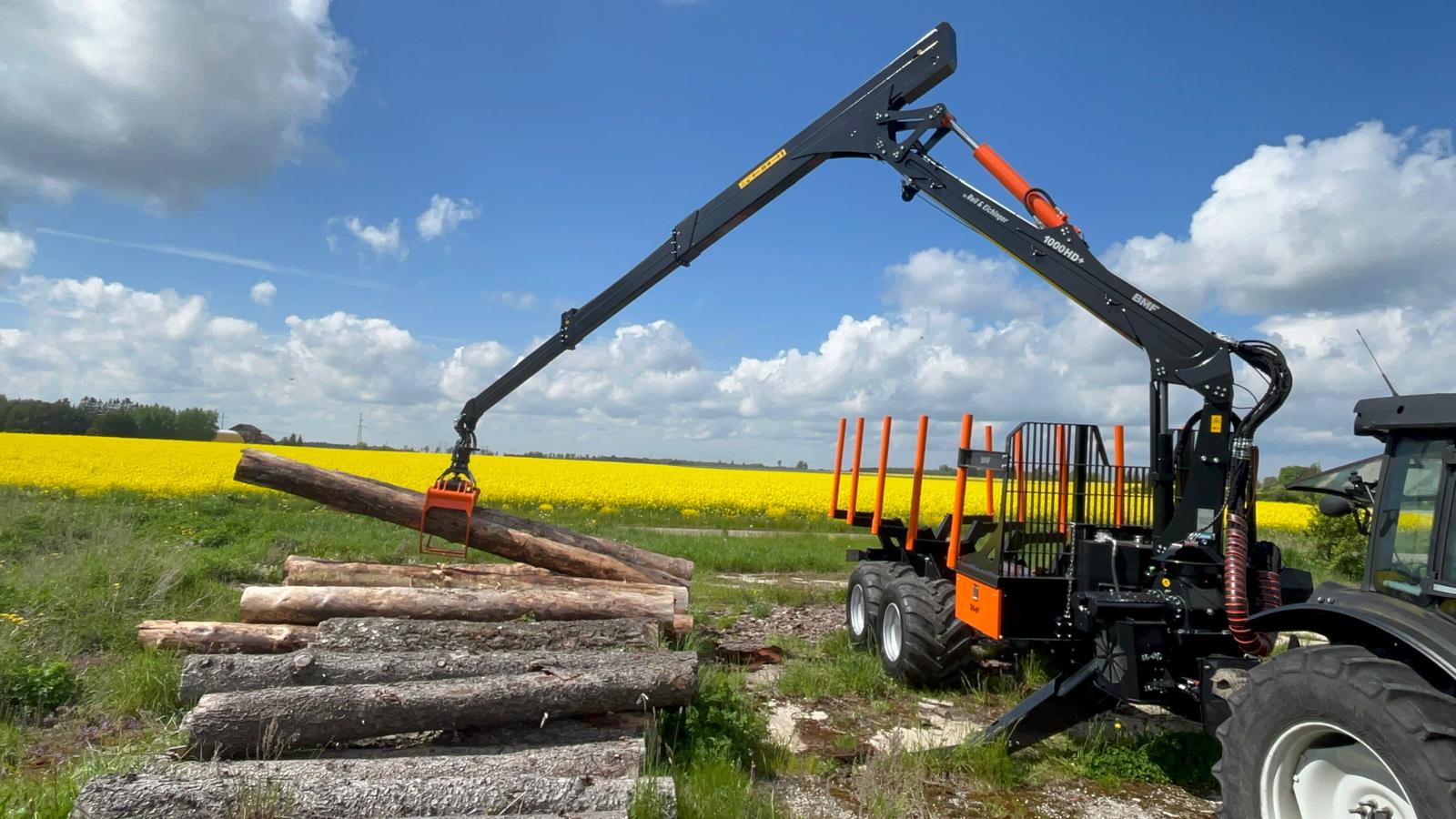

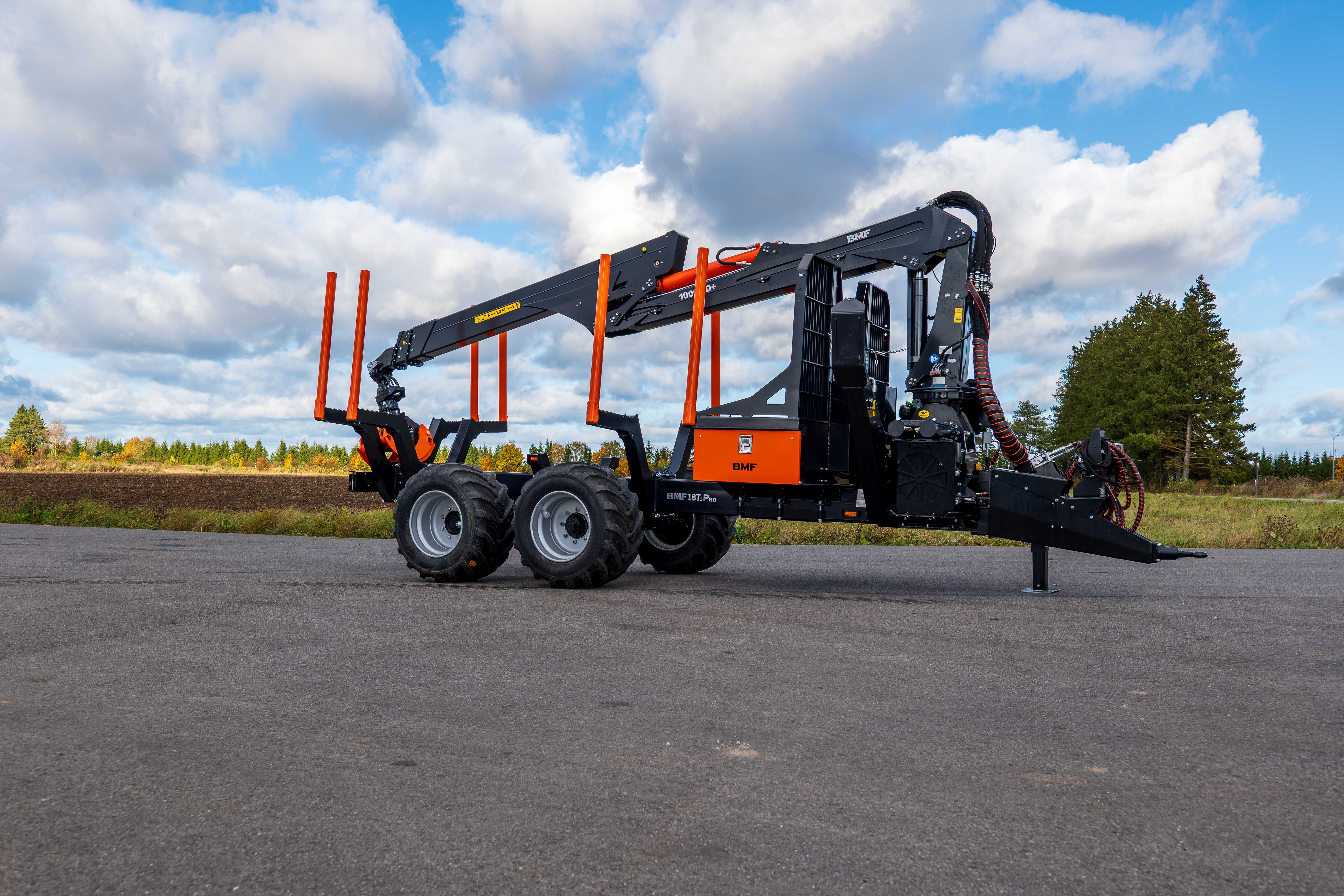

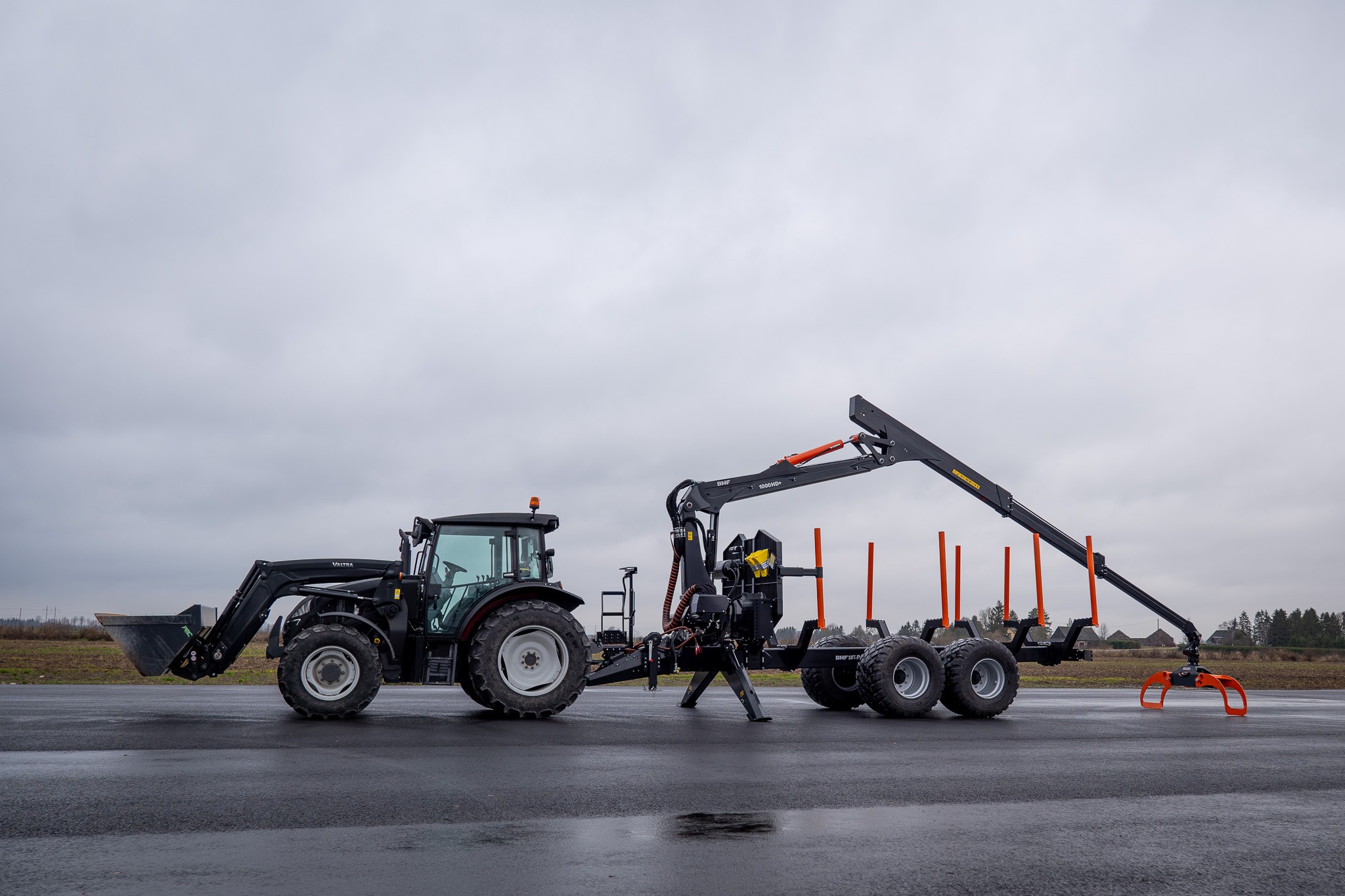

P1041034 bmf18t1pro forest trailer bmf1000hd+ log crane 2023 small

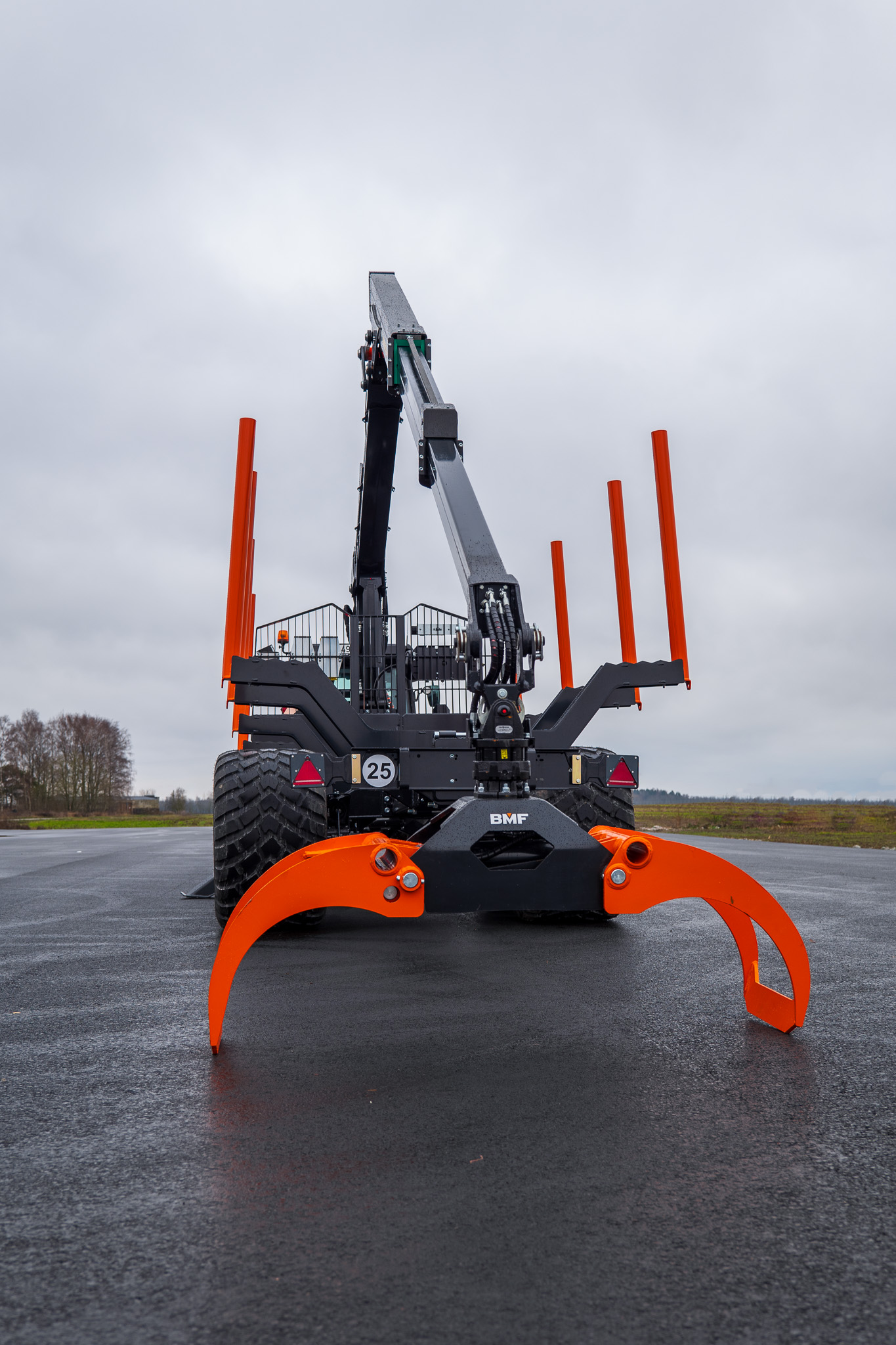

P1041025 bmf18t1pro forest trailer bmf1000hd+ log crane 2023 small

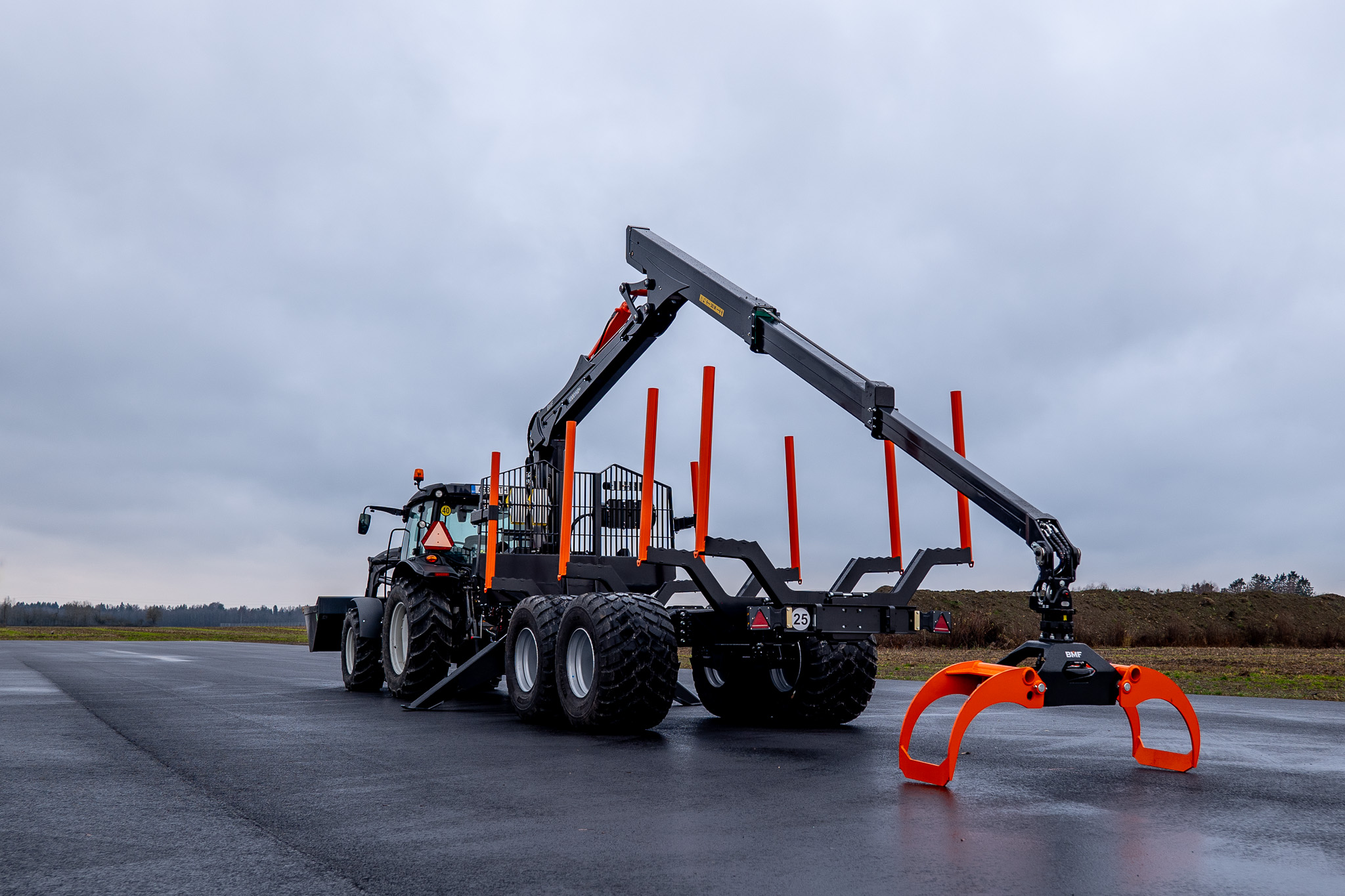

P1041020 bmf18t1pro forest trailer bmf1000hd+ log crane 2023 small

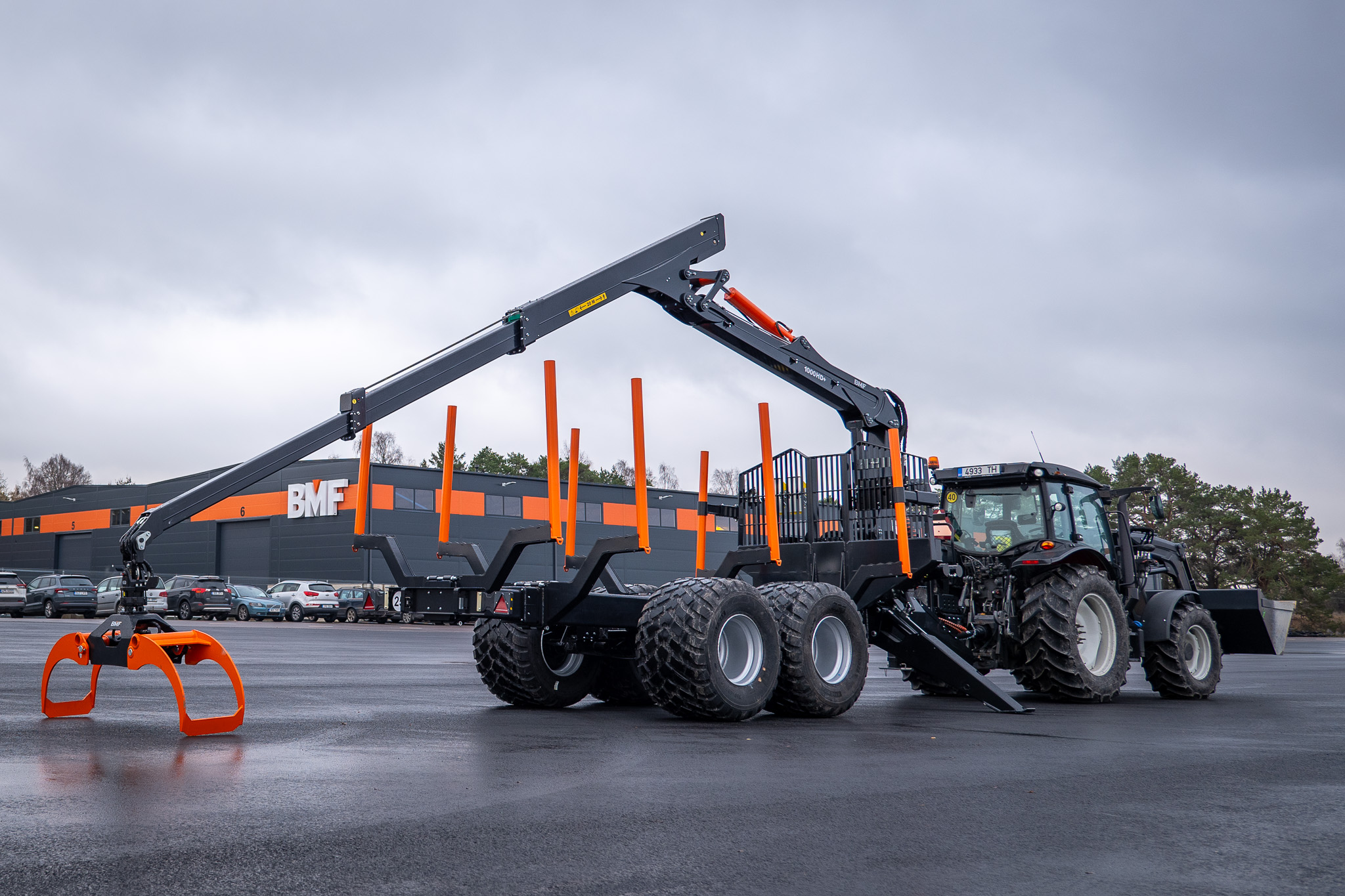

P1041011 bmf18t1pro forest trailer bmf1000hd+ log crane 2023 small
