BMF6T2 TIP

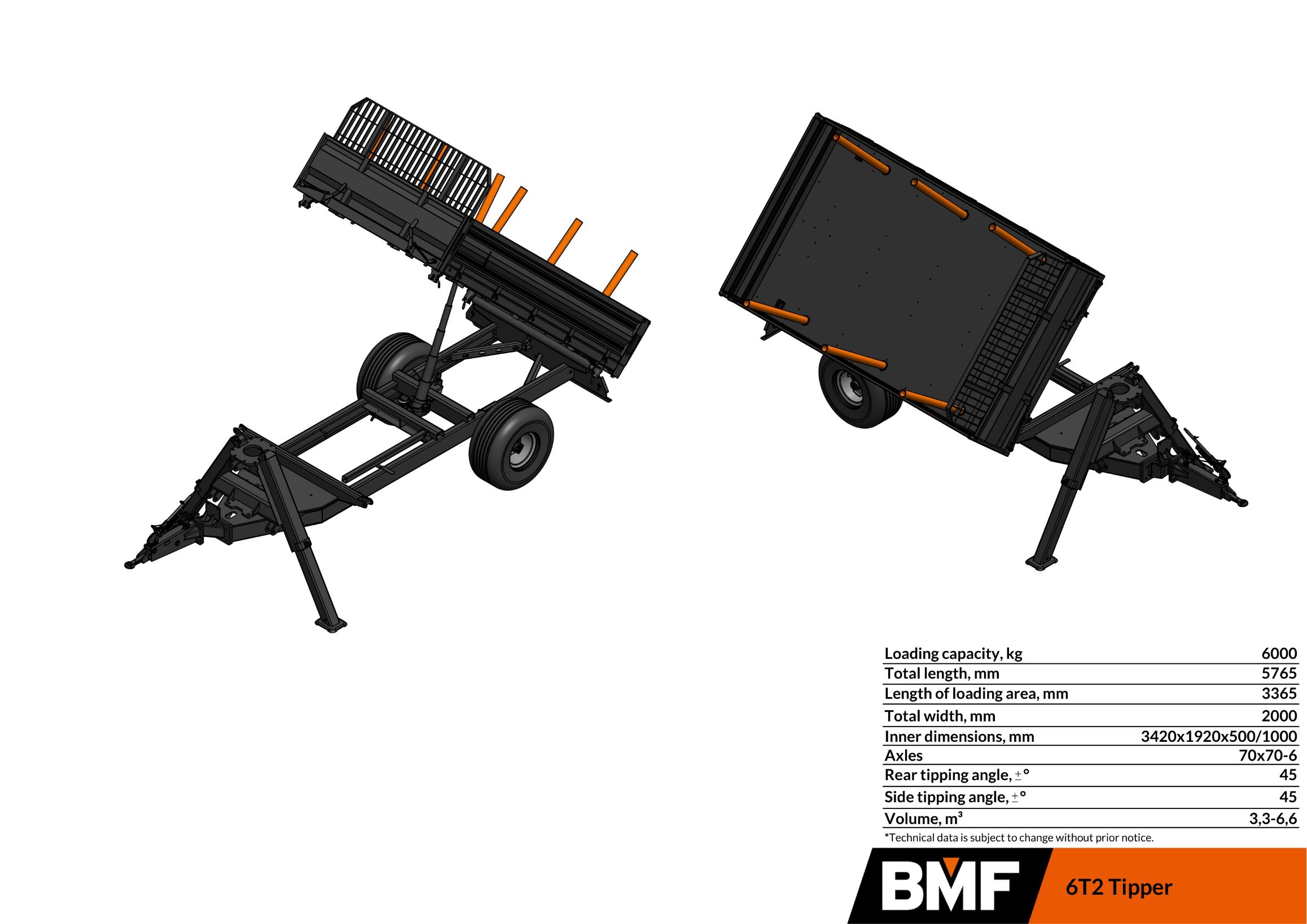

Compact tipper trailer with a durable three-way tipping dump box.

The BMF6T2 Tipper Trailer is a compact tractor trailer with a durable three-way tipping dump box, designed for transporting firewood, soil, gravel, biomass and other materials. Its lightweight construction and 6-tonne payload make it an excellent choice for farms, private forest owners and municipal work.

The three-way tipping system allows fast and convenient unloading to the rear or either side, while the robust chassis and high-quality components ensure reliable performance and a long service life in demanding working conditions.
Ask for an offer

Technical details

BMF6T2 TIP
Loading capacity
6000 kg
Total length
5765 mm
Length of loading area
3365 mm
Total width with standard wheels
2000 mm
Height with standard wheels
2000 mm
Wheels (*standard)
400/60/15,5
Chassis
190x70x5 mm
Axles
70x70-6
Loading area
1,7 m²
Drawbar cylinders
0 pcs
Drawbar angle to sides
0 ± °
Clearance with standard wheels
535 mm
Trailer-mounted support leg type
A / FD
Rear tipping angle, °
45
Side tipping angle, °
45
Loading area with side walls, m
3,4x1,92x0,5/1
Loading area with poles, m
3,35x1,65x1
* Technical data is subject to change without prior notice.

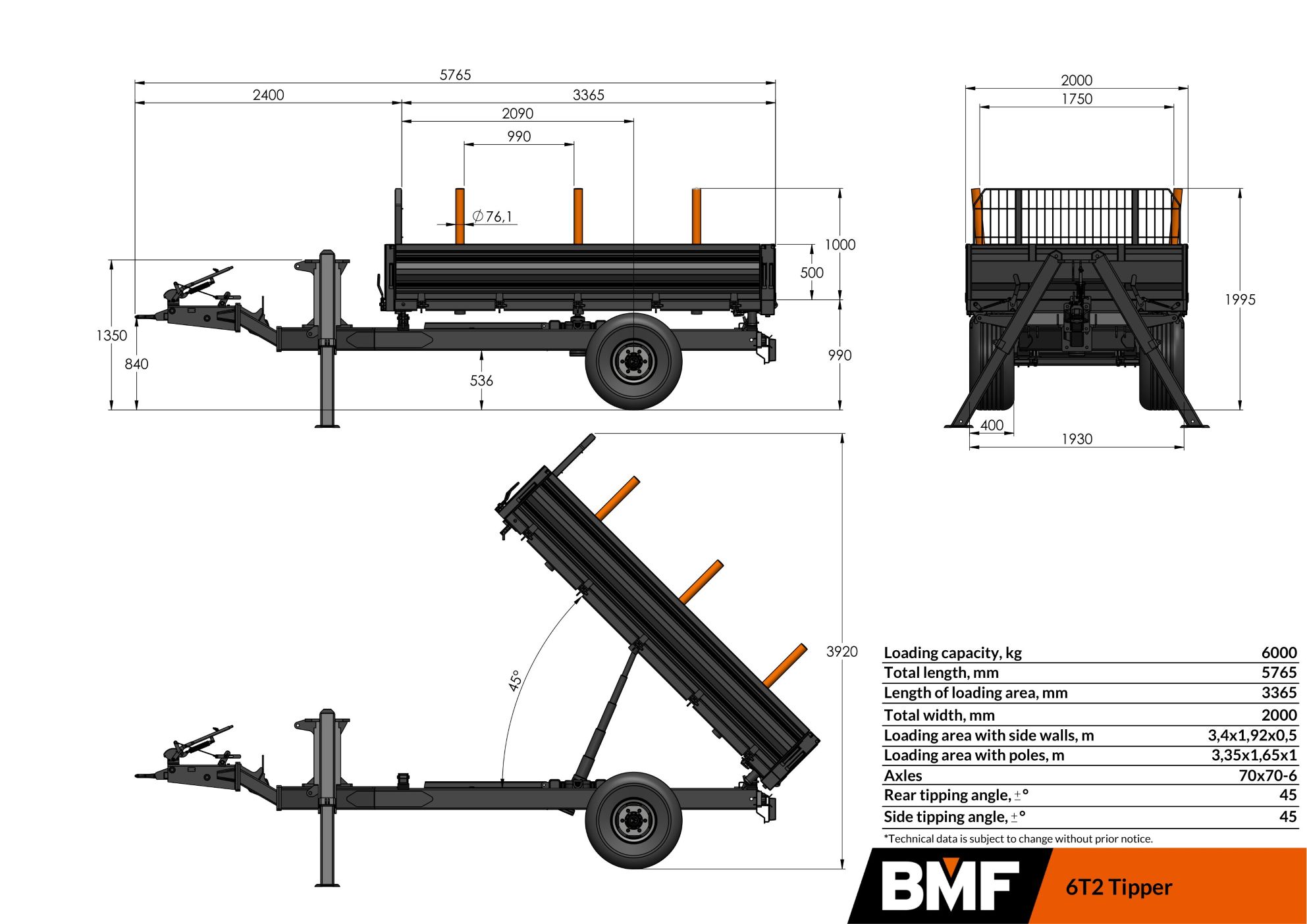

Measurements
