BMF Forestry Machinery / Valves and Joysticks

Fully electric valve blocks

Fully electric valve blocks are controlled by a joystick with a cable connection or wireless.

Parker P70 full electric

Fully proportional, possible with fix version pumps.

Valve block code: V26
Flow range: 70 l/min
Max pressure: 200 bar (HP 225 bar)
Compatible crane models: BMF650, BMF720, BMF750, BMF850, BMF905

Additional information on Parker website

Joystick options:

Parker L90 full electric

Fully proportional, compensated spools and possible with LS or fix version pumps.

Valve block code: V41
Flow range: max 130 l/min
Max pressure: 200 bar (HP 225 bar)
Compatible crane models:
BMF650, BMF720, BMF750, BMF850, BMF905, BMF800HD(+), BMF1000HD(+)

Additional information on Parker website

Joystick options:

Mechanical valve blocks

Mechanical valve blocks are an affordable, classic option.

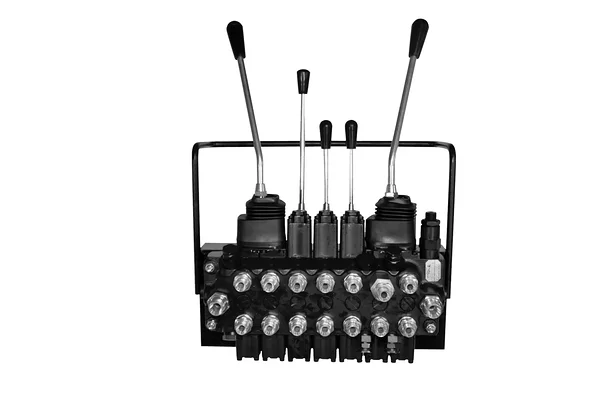

Valve block 5/7XY (55l) Walvoil Hydrocontrol D3M

Small, compact and ﬂexible sectional valve.

Mechanical valve block code: V1
Flow range: 30-55 l/min
Max pressure: 200 bar
Compatible crane models: BMF430

Additional information on Walvoil webpage

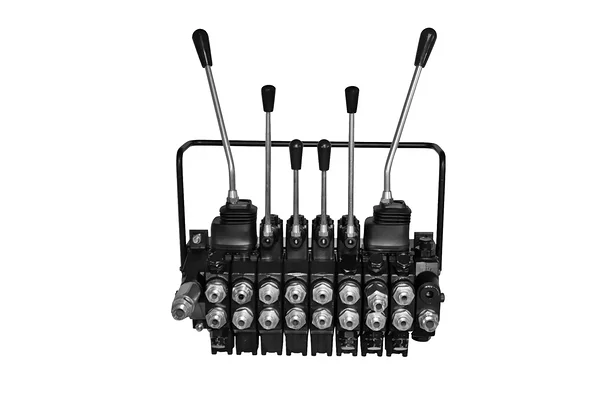

Valve block 6/8XY (55l) Walvoil Hydrocontrol D3M

Small, compact and ﬂexible sectional valve.

Mechanical valve block code: V2
Flow range: 30-55 l/min
Max pressure: 200 bar
Compatible crane models: BMF540, BMF650, BMF720

Additional information on Walvoil webpage

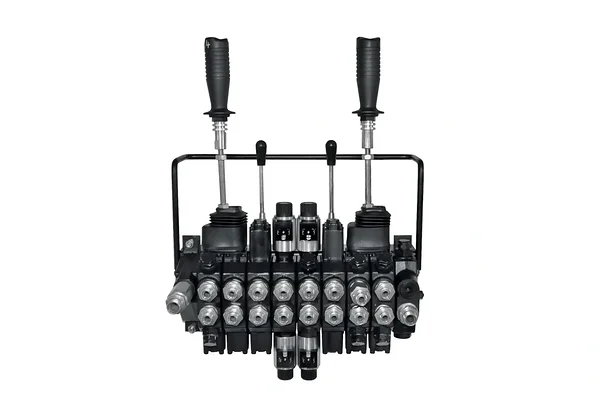

Valve block on/off 55l Walvoil Hydrocontrol D3M

Small, compact and ﬂexible sectional valve.
Most popular mechanical valve as telescope and grapple section are electrical.

Mechanical valve block code: V4
Flow range: 30-55 l/min
Max pressure: 200 bar
Compatible crane models: BMF540, BMF650, BMF720

For additional information available on Walvoil webpage, click here.

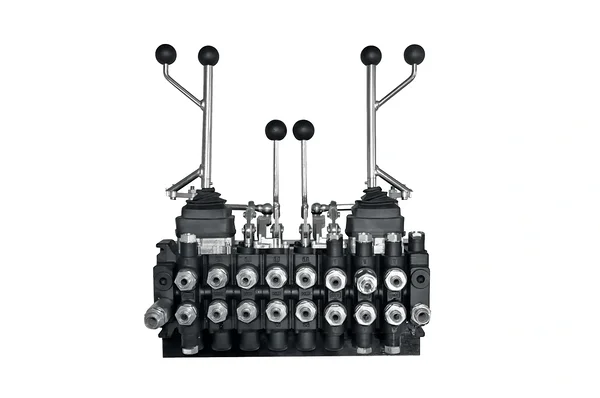

Valve block 4/8 xyz (55l) Walvoil Hydrocontrol D3M

Small, compact and ﬂexible sectional valve.

Mechanical valve block code: V11
Flow range: 30-55 l/min
Max pressure: 200 bar
Compatible crane models: BMF540, BMF650, BMF720

For additional information available on Walvoil webpage, click here.

Light weight valve block on/off 55l Walvoil Hydrocontrol D3M

This special D3M is split in two blocks, which makes it lighter than ordinary D3M.

Mechanical valve block code: V15
Flow range: 30-55 l/min
Max pressure: 200 bar
Compatible crane models: BMF540, BMF650, BMF720

For additional information available on Walvoil webpage, click here.

Valve block 4/8 xyz (80l) Walvoil Hydrocontrol D4

Compact, versatile and ﬂexible sectional valve.

Mechanical valve block code: V3
Flow range: 40-80 l/min
Max pressure: 200 bar (HP 225 bar)
Compatible crane models: BMF750, BMF850, BMF905

For additional information available on Walvoil webpage, click here.

Valve block on/off 80l Walvoil Hydrocontrol D4

Compact, versatile and ﬂexible sectional valve.
A popular mechanical valve, because telescope and grapple sections are electrical and it allows to work like with two joysticks.

Mechanical valve block code: V5
Flow range: 40-80 l/min
Max pressure: 200 bar (HP 225 bar)
Compatible crane models: BMF750, BMF850, BMF905
For additional information available on Walvoil webpage, click here.

Prehydraulic valve blocks

Prehydraulic valve blocks are controlled by low-pressure (pilot pressure) joysticks.

Valveblock 55l with HPC joystick (pilot operated)

Proportional (telescope and grapple are on/off)

Valve block code: V19
Flow range: 30-55 l/min
Max pressure: 200 bar
Compatible crane models: BMF540, BMF650, BMF720

Walvoil DPX 100/8 with HPC joystick (pilot operated)

Fully proportional, compensated spools and possible with LS or fix version pumps.

Valve block code: V09/pr
Flow range: 50-100 l/min
Max pressure: 200 bar (HP 225 bar)
Compatible crane models: BMF650, BMF720, BMF750, BMF850, BMF905

For additional information available on Walvoil webpage, click here.
